Coaxial to waveguide transducer including an L shape waveguide having an obliquely arranged conductor and method of forming the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 7, 2021
Grant Date -
Jun 25, 2020
app pub date -
Jun 1, 2018
filing date -
Jul 20, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

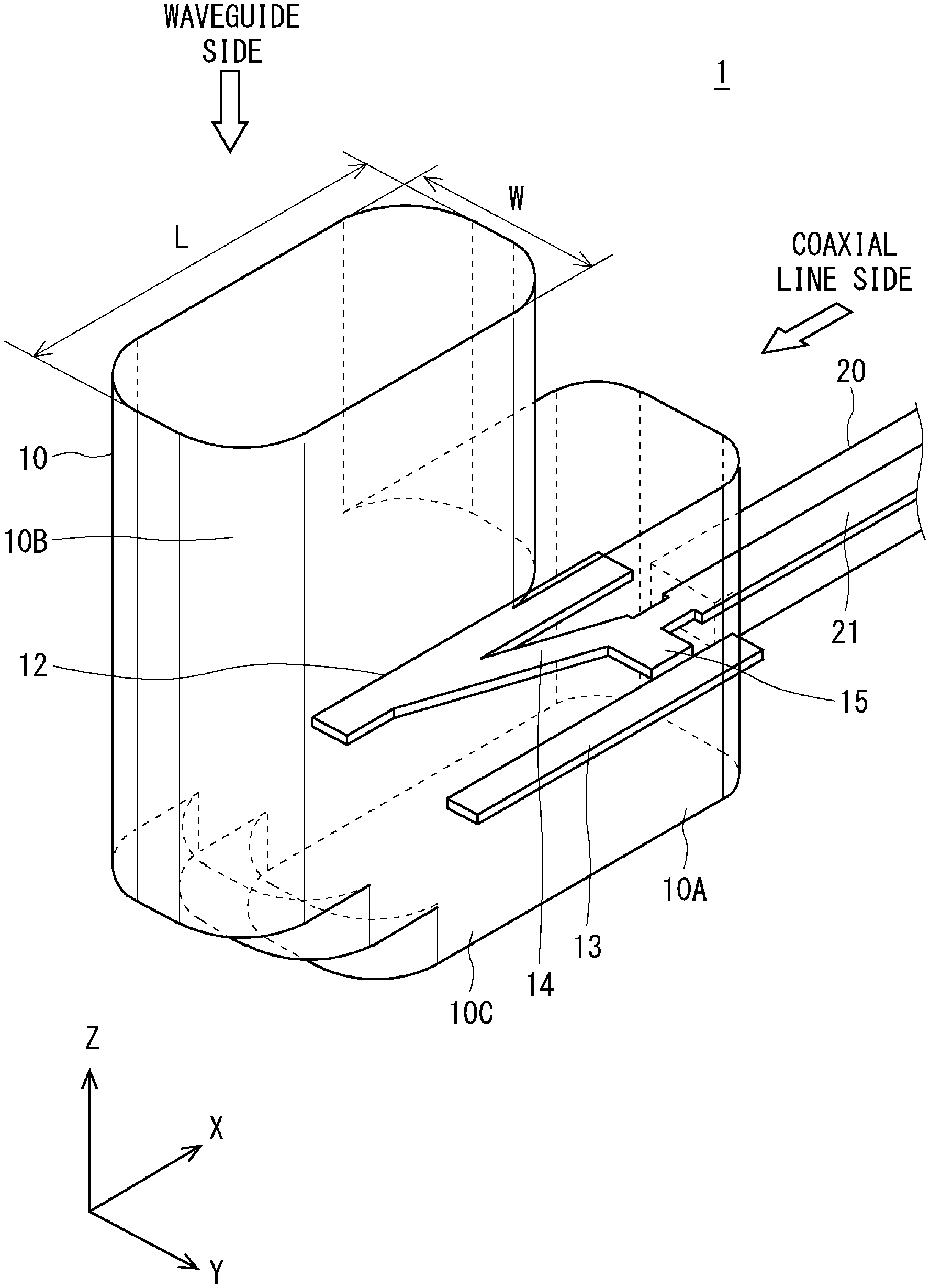

A coaxial waveguide transducer includes: a waveguide having a substantially L shape formed of a first waveguide part and a second waveguide part arranged substantially orthogonal to each other; a stepwise step bend part formed in an outer corner part of an L-shaped bent part of the waveguide; a first conductor and a second conductor arranged in respective inner side walls of the waveguide in such a way that they are extended in a direction in which a central conductor of the coaxial line is extended and are positioned on a plane the same as that where the central conductor is provided; and a third conductor having one end connected to the central conductor and another end connected to one of the first conductor and the second conductor, the third conductor being arranged obliquely with respect to the direction in which the central conductor is extended.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- H01P Class
- 747 Applications Filed
- 617 Patents Issued To-Date
- 82.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01P Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Mar 7, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 7, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 7, 2033 |
