Protective heat shields for thermally sensitive components and methods for protecting thermally sensitive components
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 29, 2022
Grant Date -
Jun 11, 2020
app pub date -
Feb 11, 2020
filing date -
Nov 8, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

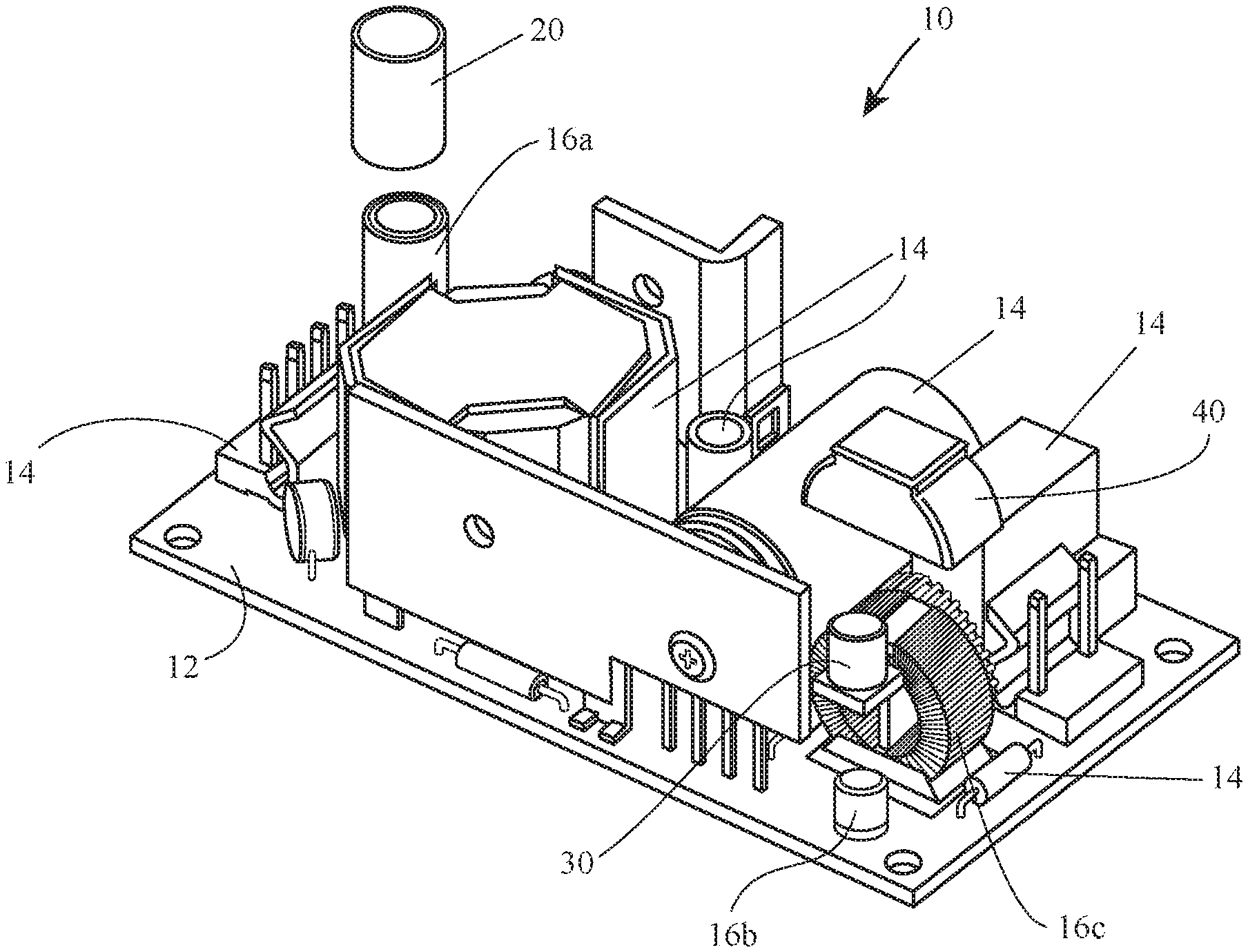

A method of manufacturing a printed circuit board assembly includes providing a circuit board, positioning a plurality of components including at least one thermally-sensitive component having a maximum temperature threshold on the circuit board, positioning a customized protective heat shield on the thermally-sensitive component, exposing the circuit board (having the thermally-sensitive component disposed thereon and the customized protective heat shield disposed on the thermally-sensitive component) to a high-temperature environment wherein temperatures exceed the maximum temperature threshold of the thermally-sensitive component, and removing the customized protective heat shield from the thermally-sensitive component. Customized protective heat shields are also provided.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B23K Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | May 29, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 29, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 29, 2034 |
