SYSTEMS AND METHODS FOR SELECTIVELY PRODUCING STEAM FROM SOLAR COLLECTORS AND HEATERS FOR PROCESSES INCLUDING ENHANCED OIL RECOVERY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 11, 2020
app pub date -
Jul 19, 2019
filing date -
Jan 7, 2013
priority date (Note) -
Published
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

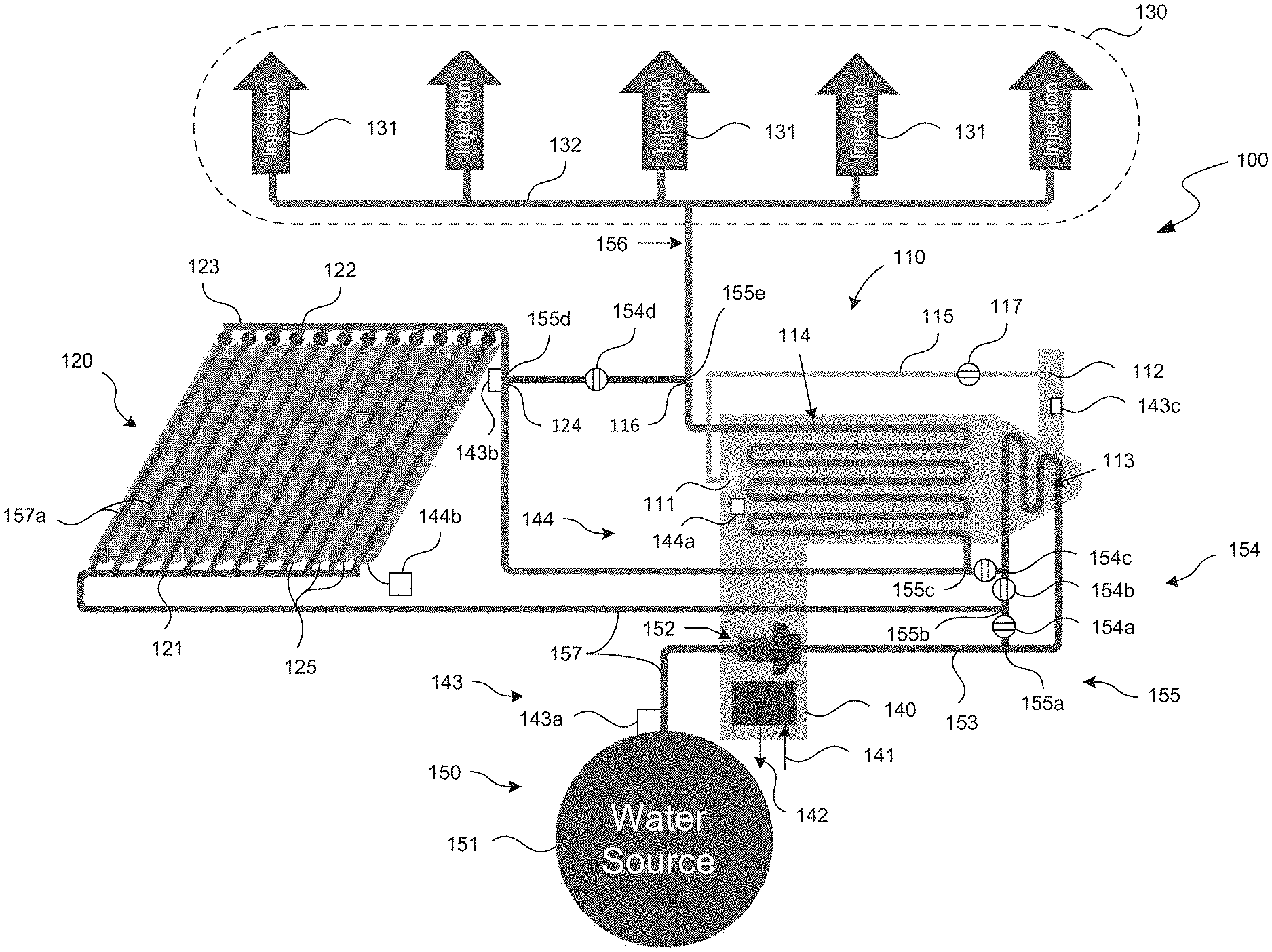

Systems and methods for selectively producing steam from solar collectors and heaters, for processes including enhanced oil recovery, are disclosed herein. A system in accordance with a particular embodiment includes a water source, a solar collector that includes a collector inlet, a collector outlet, and a plurality of solar concentrators positioned to heat water passing from the collector inlet to the collector outlet, a fuel-fired heater, a steam outlet connected to an oil field injection well, and a water flow network coupled among the water source, the solar collector, the heater, and the steam outlet. The system can further include a controller operatively coupled to the water flow network and programmed with instructions that, when executed, direct at least one portion of the flow through the solar collector and the fuel-fired heater in a first sequence, and direct the at least one portion or a different portion of the flow through the solar collector and the fuel-fired heater in a second sequence different than the first sequence.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
GLASSPOINT SOLAR INC | 47669 FREMONT BLVD FREMONT CA 94538 |
International Classification(s)
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Heisler, Stuart M | Bakersfield, US | 11 | 281 |
# of filed Patents : 11 Total Citations : 281 | |||
Nady, Andras | Berkeley, US | 6 | 131 |
# of filed Patents : 6 Total Citations : 131 | |||
O'Donnell, John Setel | Palo Alto, US | 69 | 462 |
# of filed Patents : 69 Total Citations : 462 | |||
von, Behrens Peter Emery | Oakland, US | 82 | 776 |
# of filed Patents : 82 Total Citations : 776 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 0 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 5 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 11, 2027 |
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 11, 2031 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 7.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
- No Legal Status data available.

Matter Detail

Renewals Detail
