YARN DRAWING TOOL AND TRACING BOARD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 11, 2020
app pub date -
Dec 9, 2019
filing date -
Dec 10, 2018
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

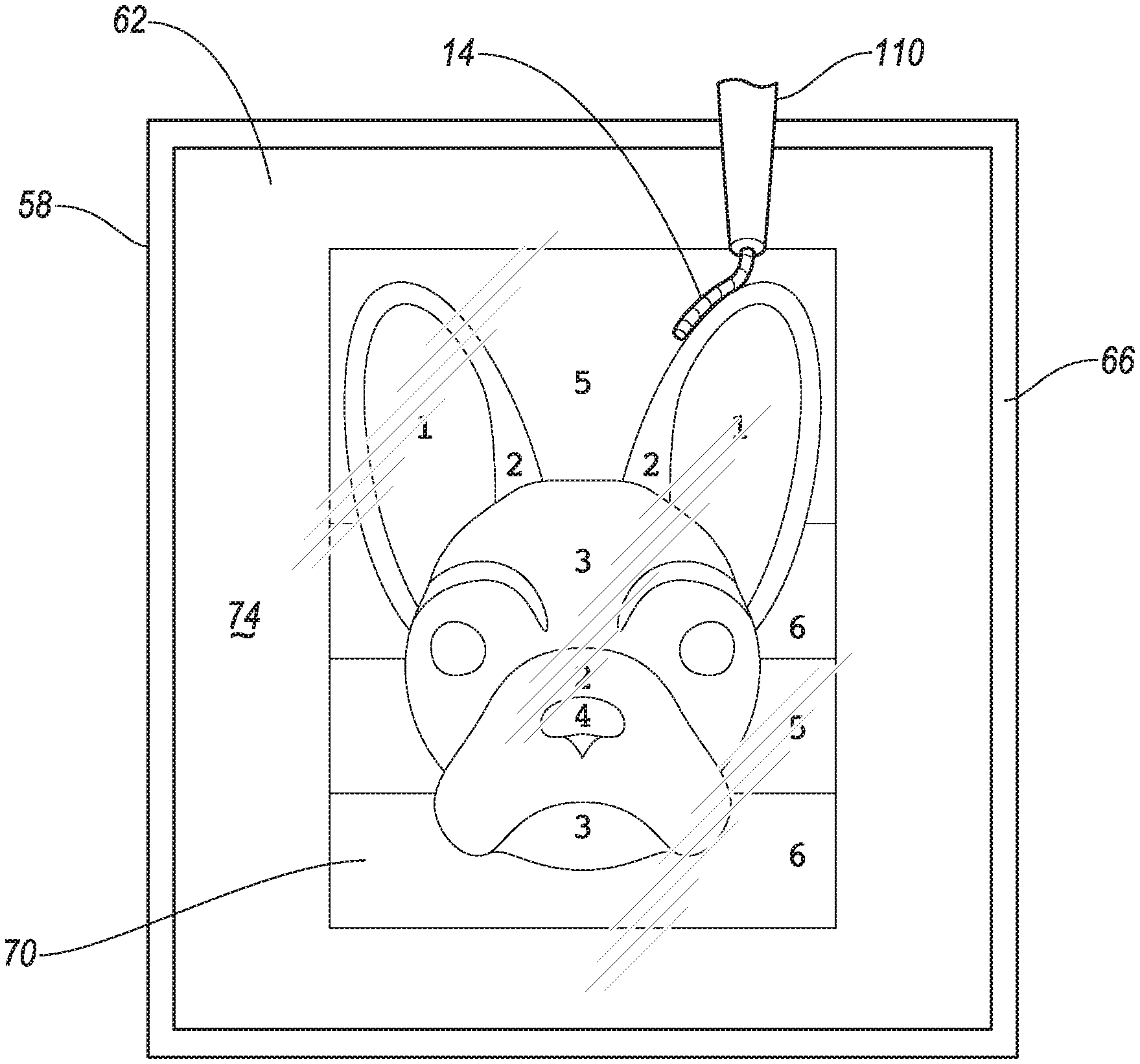

A tracing board assembly includes a transparent sheet having a first surface and a second surface. The first surface including a plurality of hooks providing hook-and-loop adhesion. A frame may be secured to a perimeter of the transparent sheet. An original image abuts the second surface of the transparent sheet and visible through the transparent sheet. The original image may include alphanumeric characters corresponding to colors of yarn. A pen having a tubular body has yarn extending through the tubular body. The pen can be used to adhere the yarn to selected areas of the transparent sheet using the original image as a guide.
First Claim
Other Claims data not available
