Composite bicycle rim
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 21, 2023
Grant Date -
Apr 16, 2020
app pub date -
Oct 10, 2018
filing date -
Oct 10, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

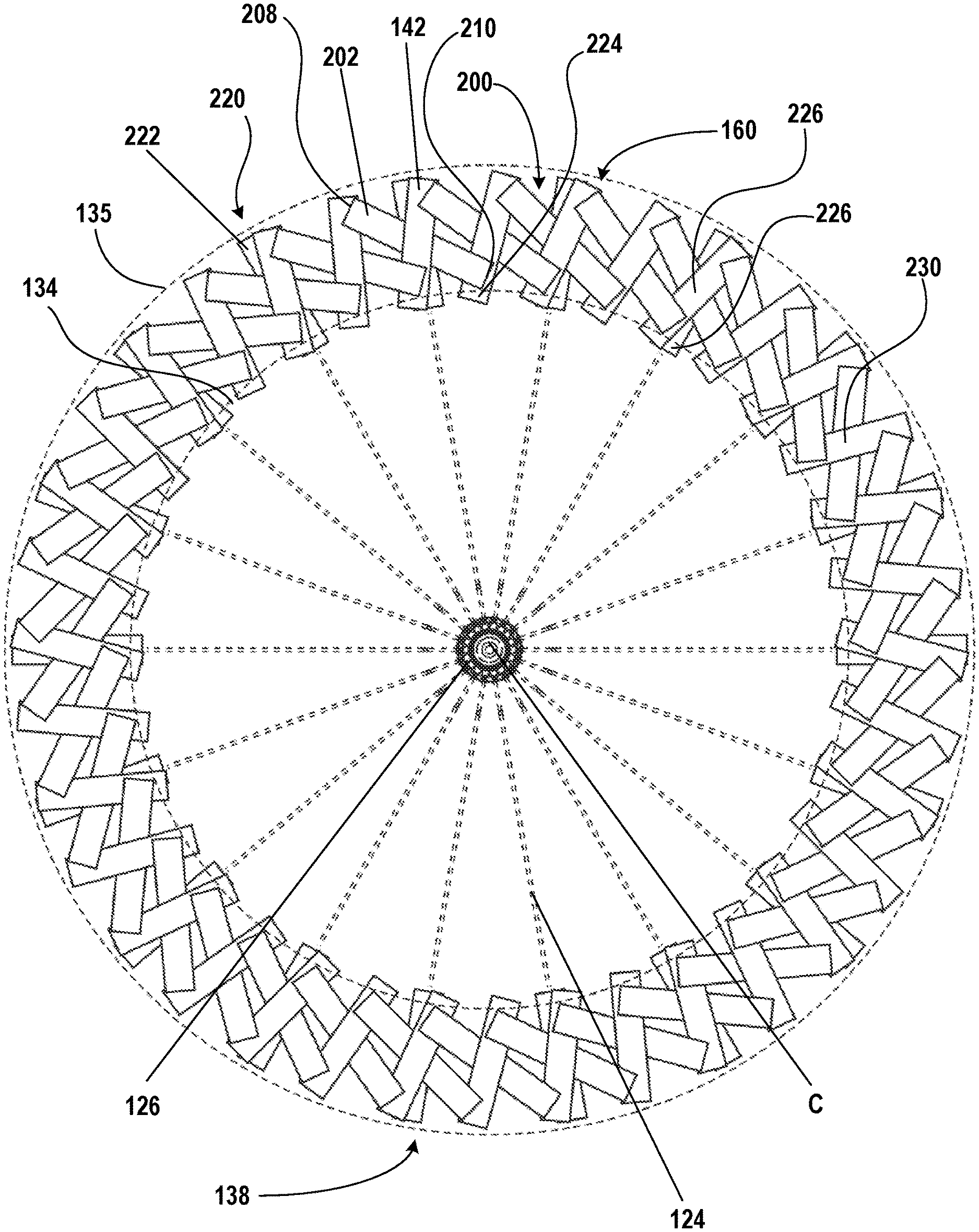

A rim for a bicycle wheel includes a radially inner portion disposed along an inner circumference of the rim. The rim also includes a first sidewall and a second sidewall spaced apart from the first sidewall. The first sidewall and the second sidewall extend radially outward from the radially inner portion. The first sidewall includes a layer of a composite material. The layer of the composite material includes fabric plies of the composite material that are shaped as strips. The composite material includes a matrix of a polymer-based material and fibers of a reinforcing material. The strips include a first strip and a second strip. The second strip is adjacent to the first strip within the layer of the composite material. The second strip is nonparallel to the first strip.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- B60B Class
- 561 Applications Filed
- 407 Patents Issued To-Date
- 72.55 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60B Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Aug 21, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 21, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 21, 2034 |
