MEDIUM SUPPLY APPARATUS AND IMAGE FORMING APPARATUS
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
N/A
Issued Date -
Mar 12, 2020
app pub date -
Mar 7, 2019
filing date -
Mar 7, 2019
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

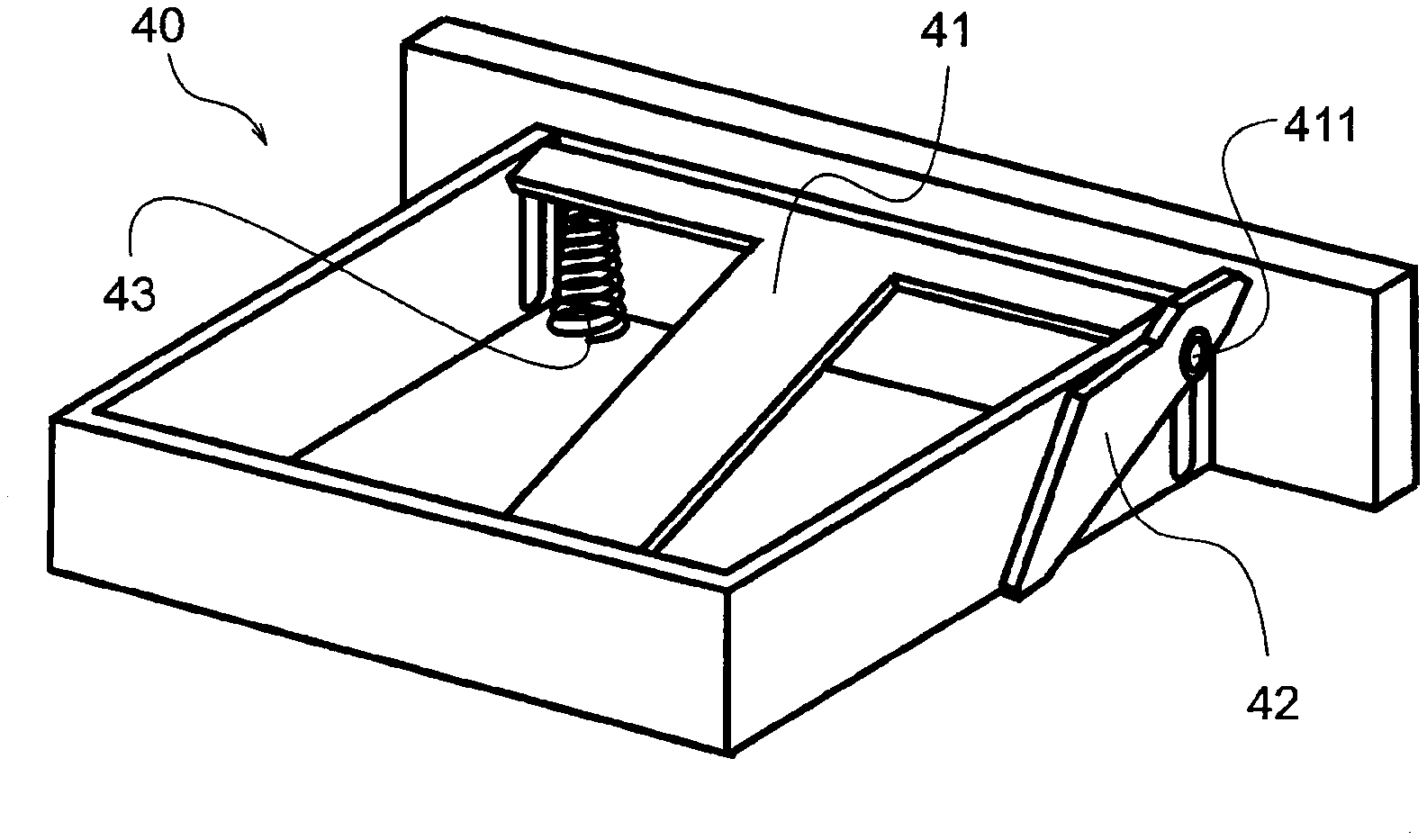

A medium supply apparatus includes a box member, a bottom plate, and a rotary portion. A medium is stored inside the box member. The box member is inserted into and extracted from a body of an image forming apparatus. The bottom plate is disposed at a bottom portion of the box. member. The medium is placed on the bottom plate. The bottom plate is lifted up by an elastic force of an elastic member. The rotary portion is attached to a side wall, among walls of the box member, positioned on a lateral side with respect to a front side toward which the box member is extracted from the image forming apparatus. The rotary portion is rotatable about a location of attachment of the rotary portion. The rotary portion includes a rear portion and a front portion. The rear portion is positioned on a rear side, in contrast to the front side, with respect to the location of attachment. The rear portion is moved upward by a reaction force applied from the body when the box member is extracted. The front portion is positioned on the front side with respect to the location of attachment. The front portion is moved downward by rotation of the rotary portion due to upward movement of the rear portion to lower the bottom plate against the elastic force.
