SCROLL FLUID MACHINE
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
N/A
Issued Date -
Feb 13, 2020
app pub date -
Oct 10, 2017
filing date -
Oct 10, 2017
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

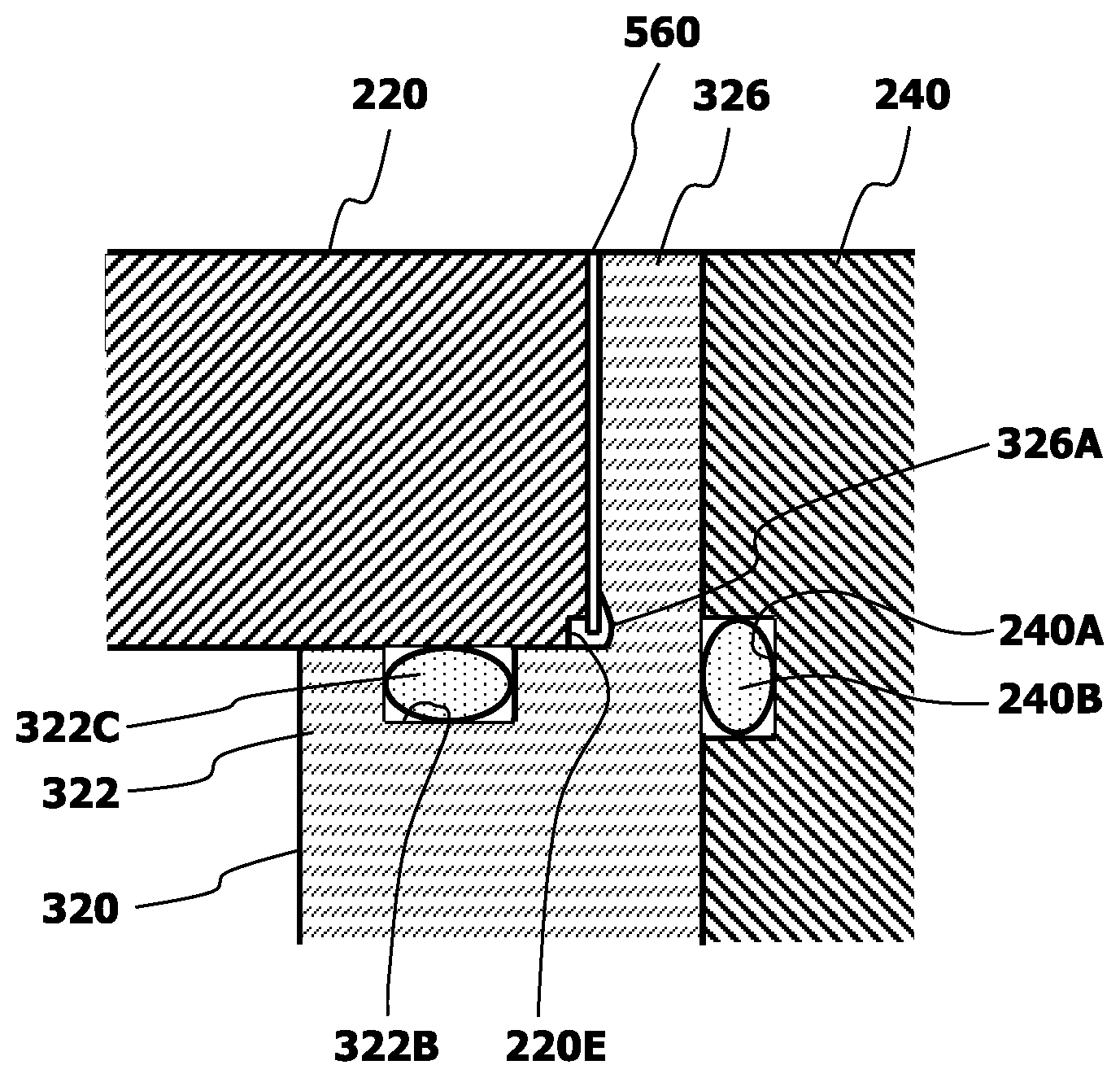

The scroll-type compressor comprises a fixed scroll 320 and an orbiting scroll which are engaged with each other, a front housing 220 for accommodating the fixed scroll 320 and the orbiting scroll, and a rear housing 240 joined to the open end of the front housing 220. The fixed scroll 320 has the base plate 322 fitted into the front housing 220, and the flange 326 held at a joint surface between the front housing 220 and the rear housing 240. Additionally, at least one of the flange 326 of the fixed scroll 320 and the front housing 220 forms therein a recessed portion 326A or 220E which permits the fixed scroll 320 to be displaced in an axial direction toward the orbiting scroll due to a pressure difference acting on opposite surfaces of the base plate 322 of the fixed scroll 320.
First Claim
Other Claims data not available
