CLAMPING MECHANISM
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
N/A
Issued Date -
Jan 2, 2020
app pub date -
Mar 6, 2018
filing date -
Mar 6, 2018
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

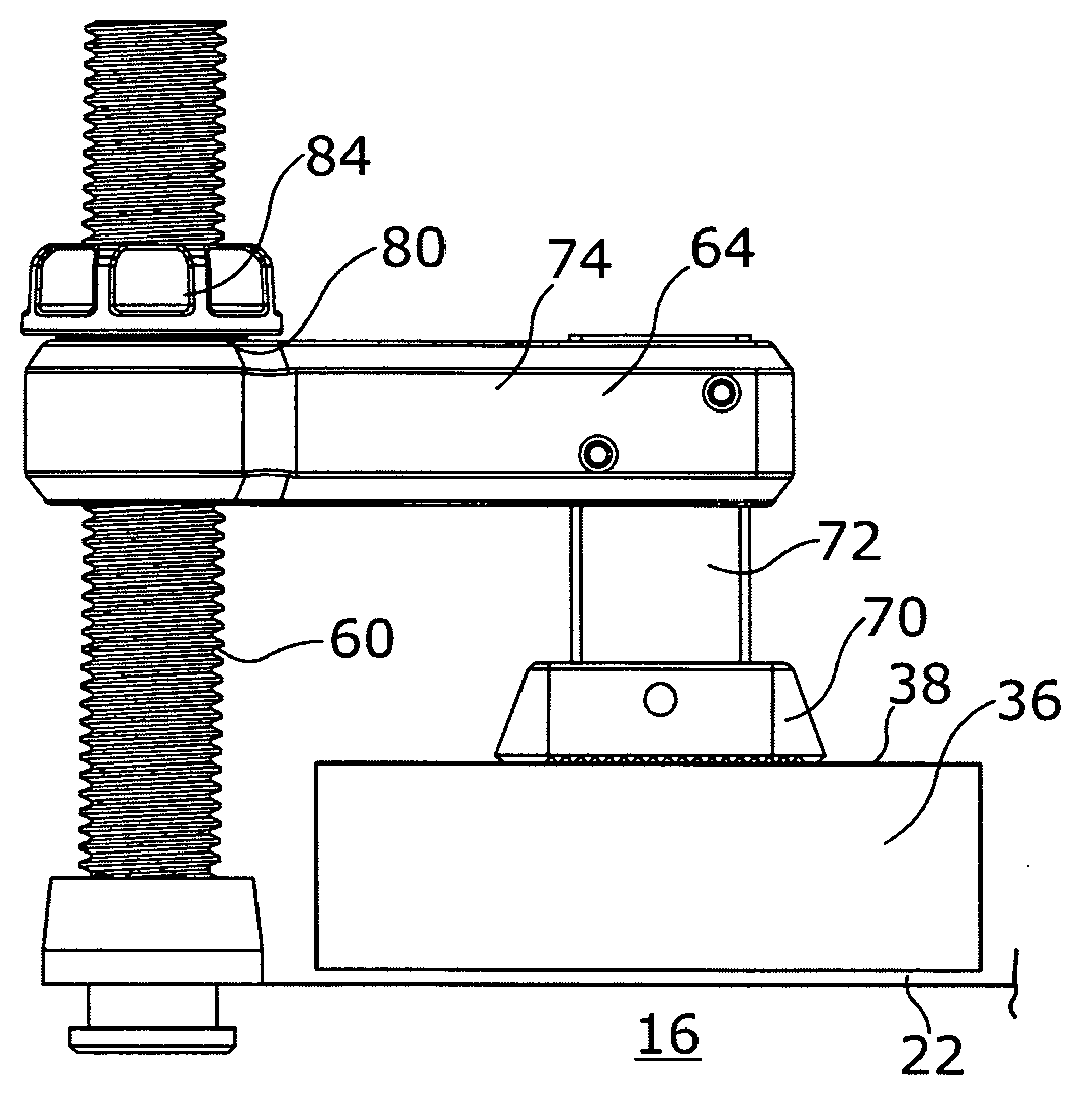

The invention to which this application relates is a clamping apparatus (2, 52, 86) adapted to be used with a base (16) and to clamp (70) a workpiece (36, 38) in position with respect to a surface (38) of said base (16). The apparatus (2) includes an elongate shaft (60), at least one locating portion (10, 88) and engagement portion provided at or towards one end of the said shaft (60), a user operated actuation means selectively located between the said locating portion (10, 88) and the opposing end of the elongate shaft (60), said actuation means provided with, or connected to, a clamping portion and the base (16) includes one or more ports (18) or tracks with which the said locating portion (10, 88) and engagement portion is selectively located so as to selectively position the clamp (70) apparatus (2) with respect to the base (16).
First Claim
Other Claims data not available
