Attachment arrangement between rolling and rigid components in a vehicle engine bay
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 23, 2020
Grant Date -
Nov 21, 2019
app pub date -
May 21, 2018
filing date -
May 21, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

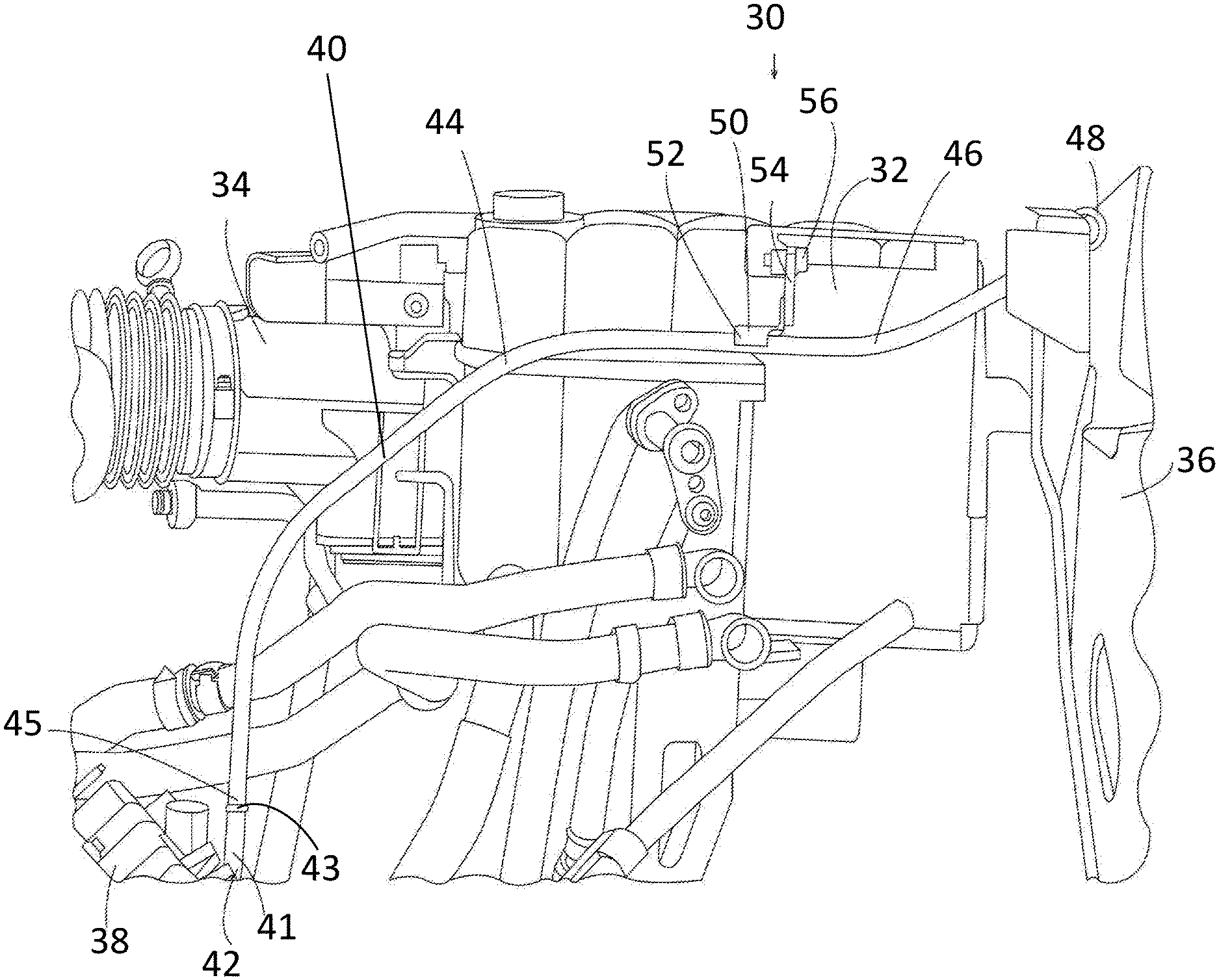

A two-segment tube fluid level indicating system attached at one end to the vehicle's engine and at the other end to a fixed structure of the vehicle's engine bay is disclosed. The two-segment tube assembly includes a first tube segment having an end attached to the engine block and a second tube segment having an end attached to a fixed structure of the engine bay. The first tube segment is a common tube segment adapted for use with a given engine. The second tube segment is specific to a vehicle model. The first and second tube segments are axially and rotatably movable with respect to each other. A bracket having an elastomeric isolator attaches the second tube segment to the fixed structure. The movability of the first and second tube segments relative to each other and the elastomeric isolator operate to prevent damage to the tube portion during engine operation.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2018 Application Filing Year
- F01M Class
- 344 Applications Filed
- 261 Patents Issued To-Date
- 75.88 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F01M Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 23, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 23, 2031 |
