Naturally aspirated common rail diesel engine meeting ultra low PM emission by passive exhaust after treatment
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 19, 2022
Grant Date -
Nov 14, 2019
app pub date -
Jul 26, 2019
filing date -
Jul 23, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

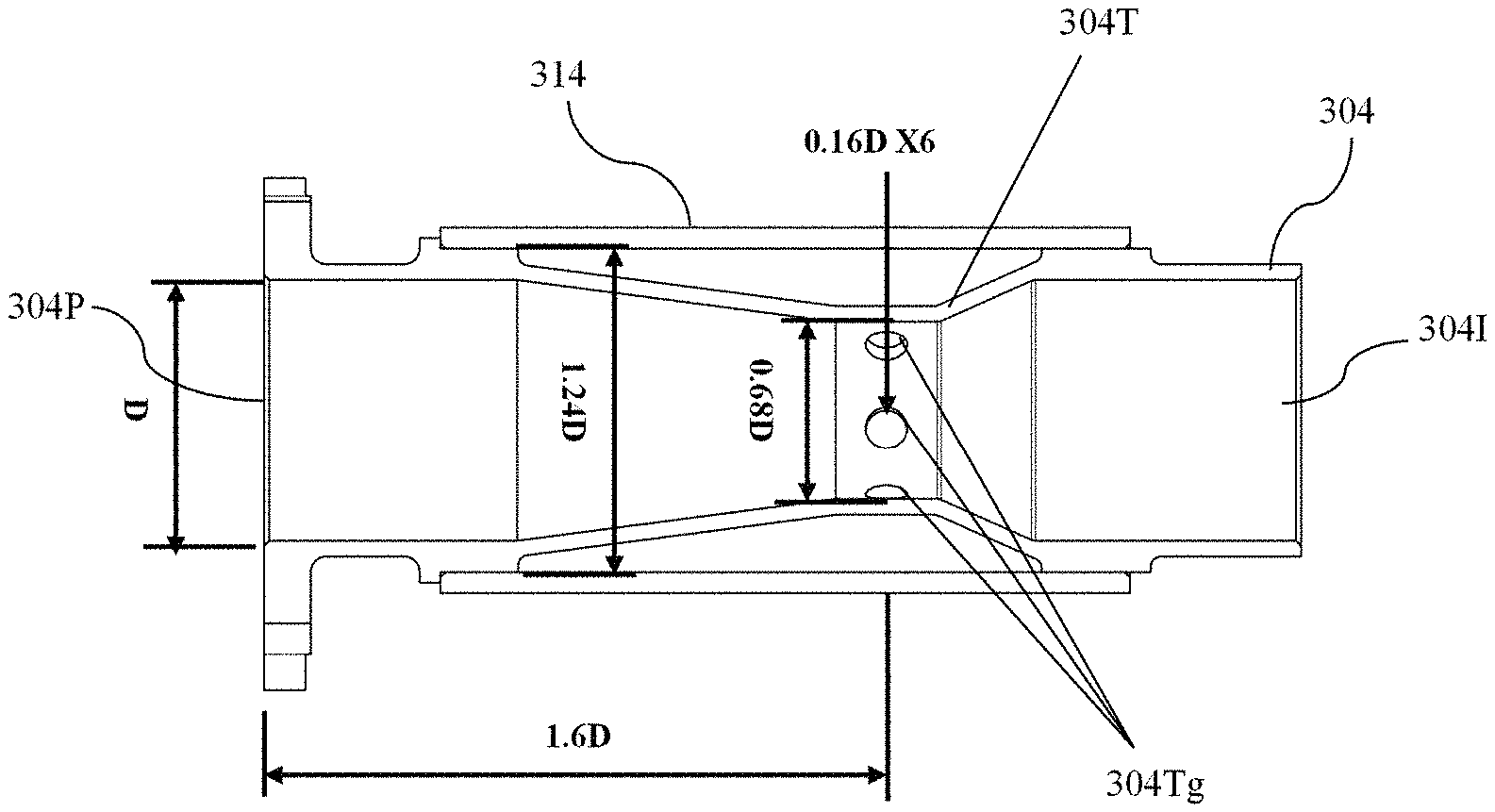

Systems (100, 200 and 300) and methods (400, 500 and 600) for controlling exhaust gas emissions from naturally aspirated engine are disclosed. The system (100, 200 and 300) includes an open loop exhaust gas recirculation flow to the engine. The system (100, 200 and 300) includes a diesel oxidation catalyst (102, 202 and 302) mounted on or near exhaust manifold (106, 206 and 306) of the engine. Furthermore, the system (100 and 200) includes an exhaust gas mixing conduit (114 and 214) inserted into air intake conduit (104 and 204). The system (100, 200 and 300) further includes an exhaust gas recirculation valve (110, 210 and 310) mounted on cold side or a hot side of EGR cooler. Furthermore, the system (100, 210 and 310) includes an electronic control unit to control exhaust gas recirculation valve (110, 210 and 310) along with various other engine calibration parameters.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- F02M Class
- 1101 Applications Filed
- 800 Patents Issued To-Date
- 72.67 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F02M Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jan 19, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 19, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 19, 2034 |
