Inserting system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 2, 2021
Grant Date -
Nov 14, 2019
app pub date -
May 10, 2017
filing date -
May 30, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

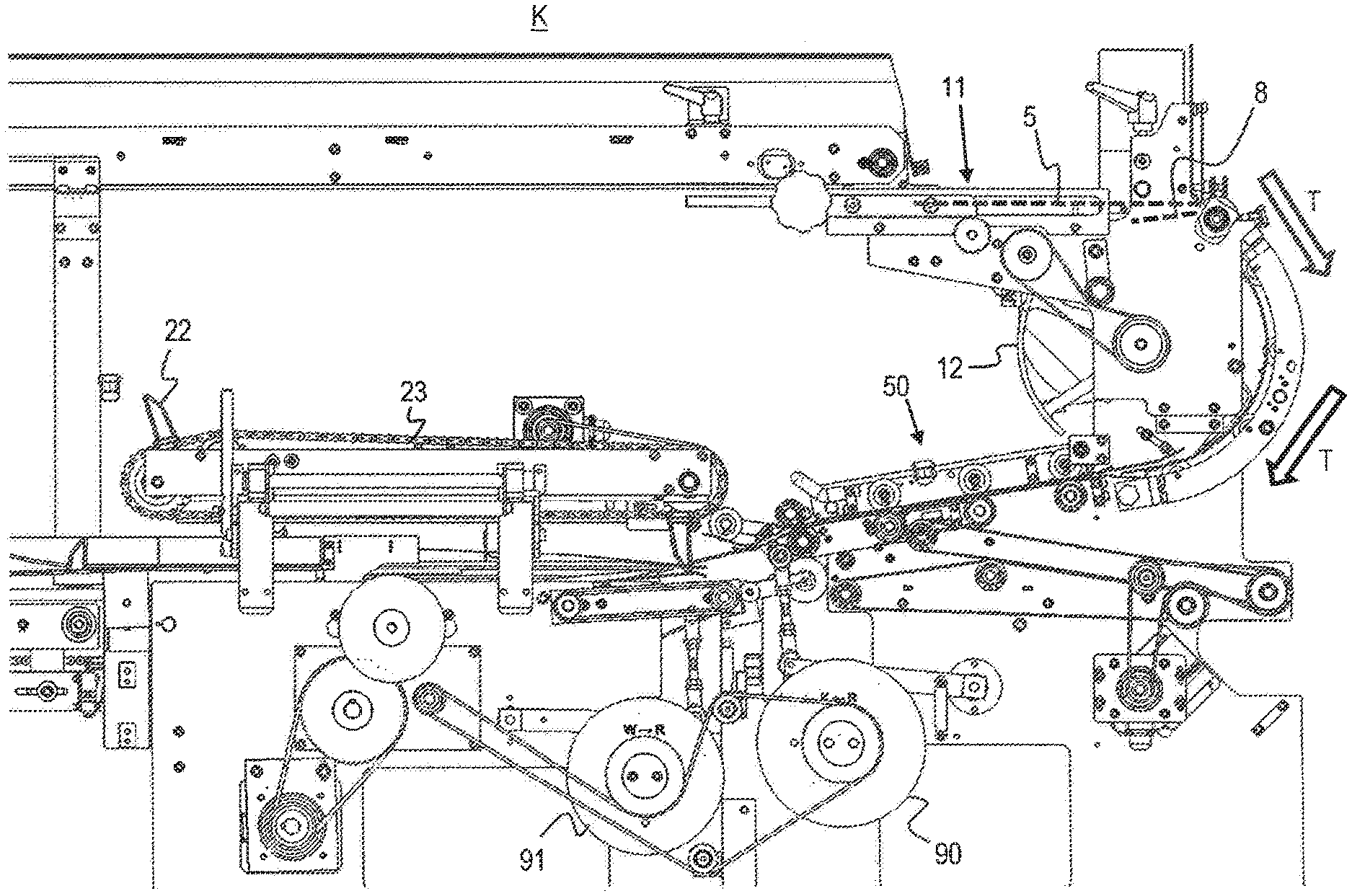

An envelope inserting system has an envelope duct for empty envelopes, a transport device for transporting the envelopes from the duct to a packing pocket, a feeding device for feeding the envelope content to and into the pocket, and an outlet-transport device for reforwarding the filled envelope. The transport device has an envelope tunnel mounted movably on the inserting system about a pivot axis, upper and lower tunnel guidances for aligning the envelope with the pocket, and a swivel device operatively connected to the tunnel, and at least one drivable envelope pusher roll. The roll, in a first position, which the tunnel and roll occupy relative to the pocket, is fed from below against the downstream end portion of the upper tunnel guidance and a lower edge of an end edge of the end region is offset downwards relative to a plane defined by the guiding surface of the pocket.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B43M Class
- 26 Applications Filed
- 19 Patents Issued To-Date
- 73.08 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B43M Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 2, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 2, 2032 |
