Input handling for media processing devices
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 31, 2023
Grant Date -
Oct 31, 2019
app pub date -
Jul 10, 2019
filing date -
Jul 7, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

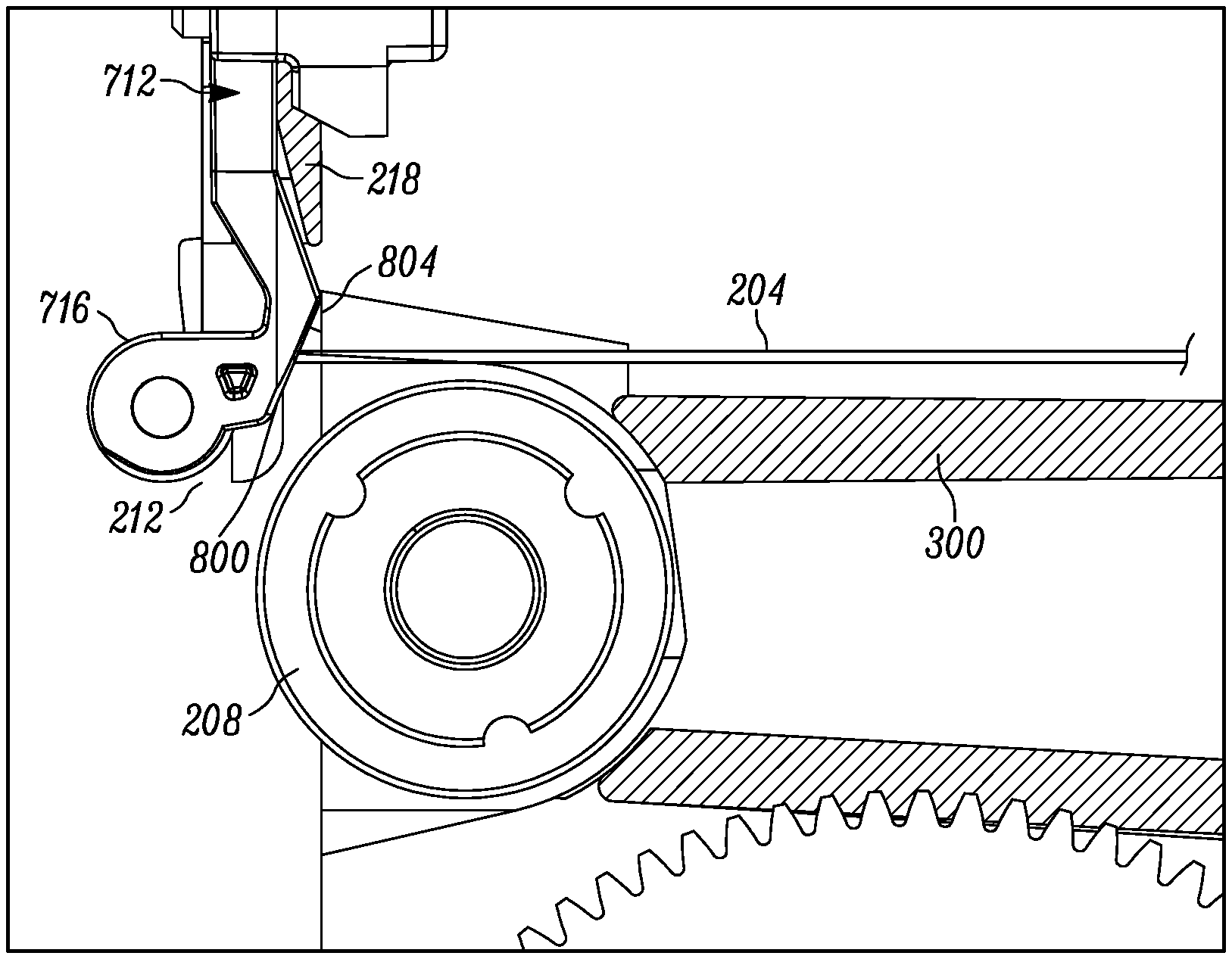

A media processing device includes: a hopper for supporting a stack of media units (e.g. cards), the hopper including (i) a gate wall configured to abut leading edges of the media units and (ii) an outlet defined at an end of the gate wall; a pick roller at the outlet for engaging an outer one of the media units in the stack and dispensing the outer media unit from the hopper to a media processing path; the gate wall including a flexible gate at the outlet, the flexible gate configured to deflect toward the media processing path responsive to the outer media unit being driven into the flexible gate by the pick roller, wherein the outer media unit deflects when passing by the flexible gate, permitting the outer media unit to be dispensed from the hopper.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B41J Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jul 31, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 31, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 31, 2034 |
