Vapor-phase type heating method and vapor-phase type heating apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 29, 2020
Grant Date -
Oct 17, 2019
app pub date -
Feb 12, 2019
filing date -
Apr 16, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

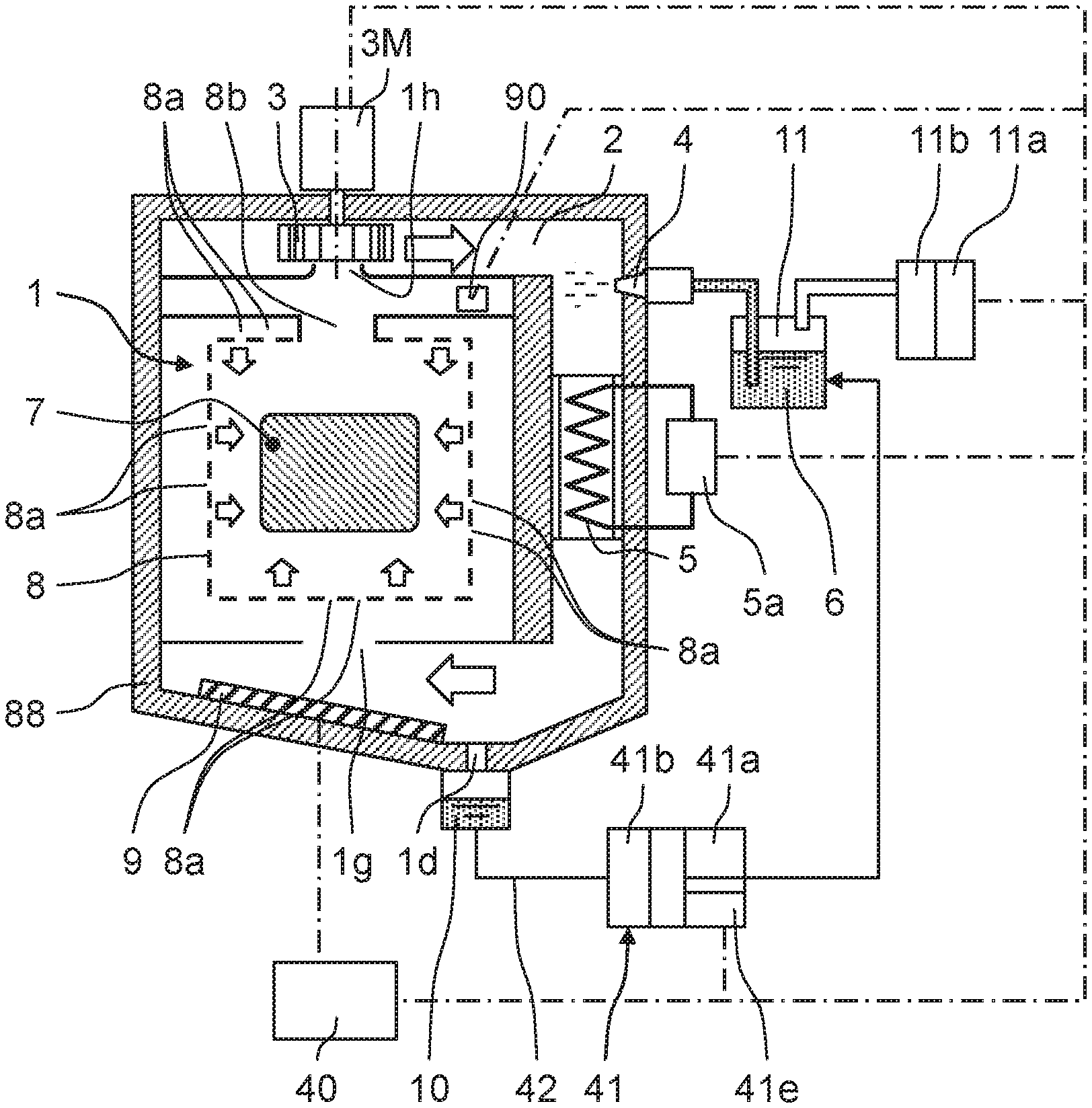

In a vapor-phase type heating method, an object is heated by a heated gas containing vapor in a heating furnace. The heat transfer fluid falling from a front surface of the object to a lower portion of the heating furnace is collected, after the vapor comes into contact with the object and cools to liquefy and latent heat of vaporization of the vapor is applied to the object through phase change. The heated gas obtained after heating the object is discharged from an inside of the heating furnace to the circulation route. In the circulation route, the heat transfer fluid is supplied as droplets to the discharged heated gas and is vaporized after heating, and the heated gas including the vapor is supplied to the heating furnace.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B23K Class
- 61.89 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 29, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 29, 2032 |
