Feed polarizer step twist switch
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 12, 2019
app pub date -
Mar 8, 2018
filing date -
Mar 8, 2018
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

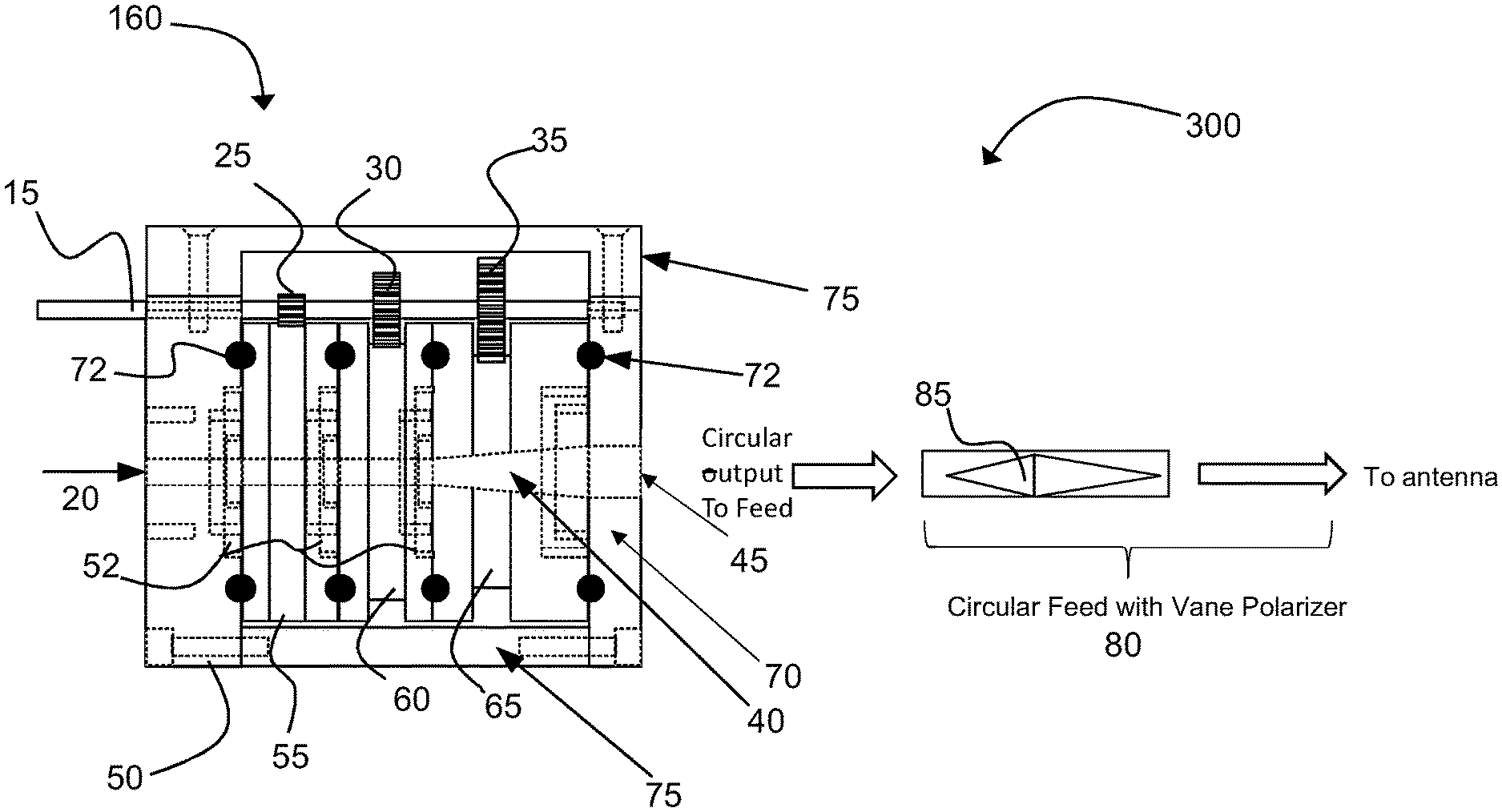

A polarizer apparatus for RF communications including an in-line waveguide switch having a first port with a rectangular waveguide shape, and a second port having a circular waveguide shape. The waveguide switch includes a plurality of rotatable disks coupled and arranged between the input and output of said waveguide switch, each of the disks having an opening provided therein which defines at least a portion of a signal path configured to allow RF signals to propagate therethrough. The waveguide switch includes an actuating mechanism arranged to rotate the disks to positions relative to each other which modify the polarization of RF signals propagating through the openings. The polarizer apparatus includes a feed coupled to the output of the waveguide switch, the feed including a vane polarizer arranged to circularly polarize signals provided thereto from the output of the waveguide switch.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2018 Application Filing Year
- H01P Class
- 747 Applications Filed
- 617 Patents Issued To-Date
- 82.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01P Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 7, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 7, 2031 |
