Method of and system for performing defect detection on or characterization of a layer of a semiconductor element or semi-manufactured semiconductor element
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 15, 2020
Grant Date -
Jul 25, 2019
app pub date -
Aug 31, 2017
filing date -
Aug 31, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

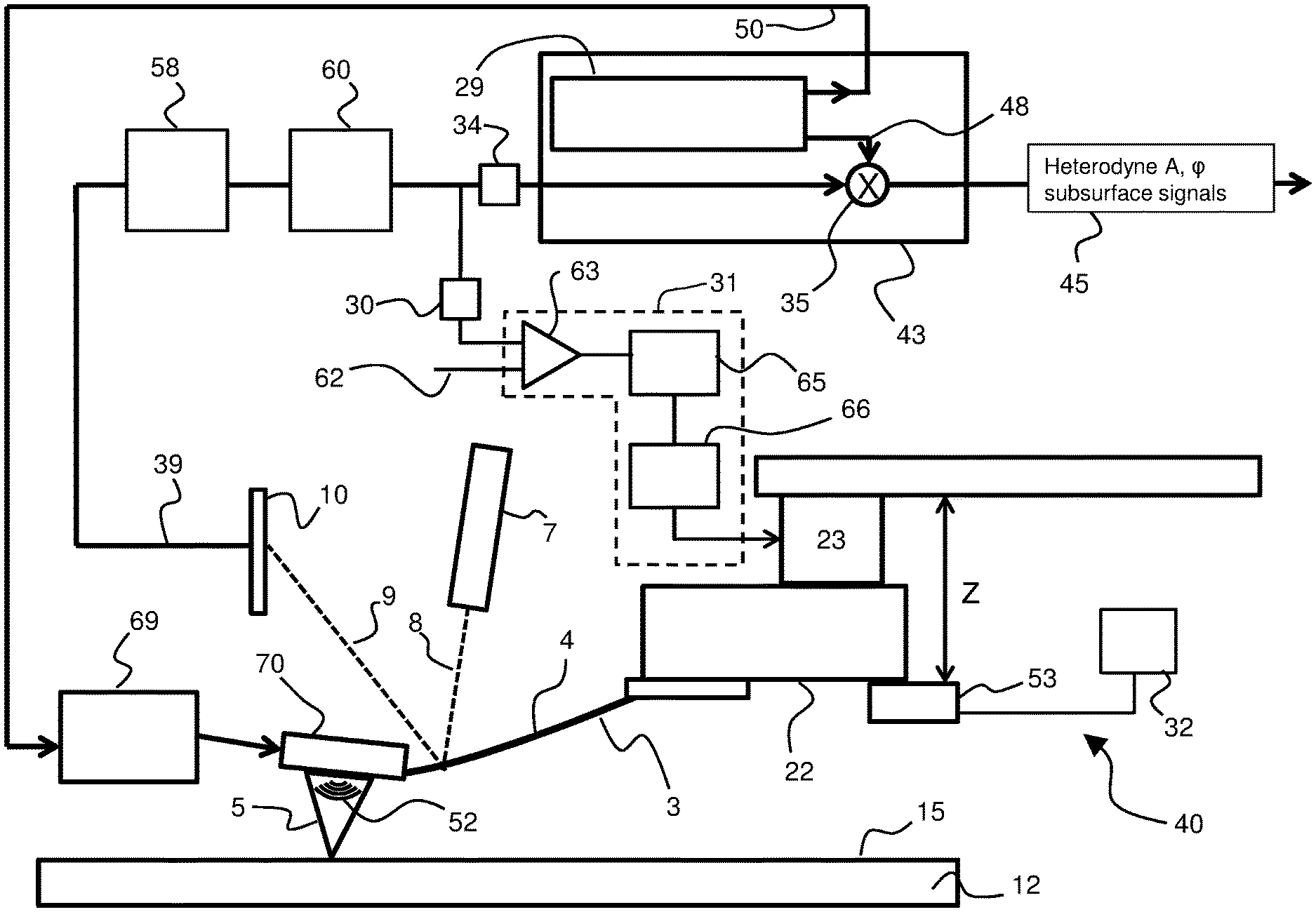

The present document relates to a method of performing defect detection on a self-assembled monolayer of a semiconductor element or semi-manufactured semiconductor element, using an atomic force microscopy system. The system comprises a probe with a probe tip, and is configured for positioning the probe tip relative to the element for enabling contact between the probe tip and a surface of the element. The system comprises a sensor providing an output signal indicative of a position of the probe tip. The method comprises: scanning the surface with the probe tip; applying an acoustic vibration signal to the element; obtaining the output signal indicative of the position of the probe tip; monitoring probe tip motion during said scanning for mapping the surface of the semiconductor element, and using a fraction of the output signal for mapping contact stiffness indicative of a binding strength.
