Beam system and method of erecting a supporting arch
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 16, 2020
Grant Date -
Jun 27, 2019
app pub date -
Feb 27, 2019
filing date -
Mar 9, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

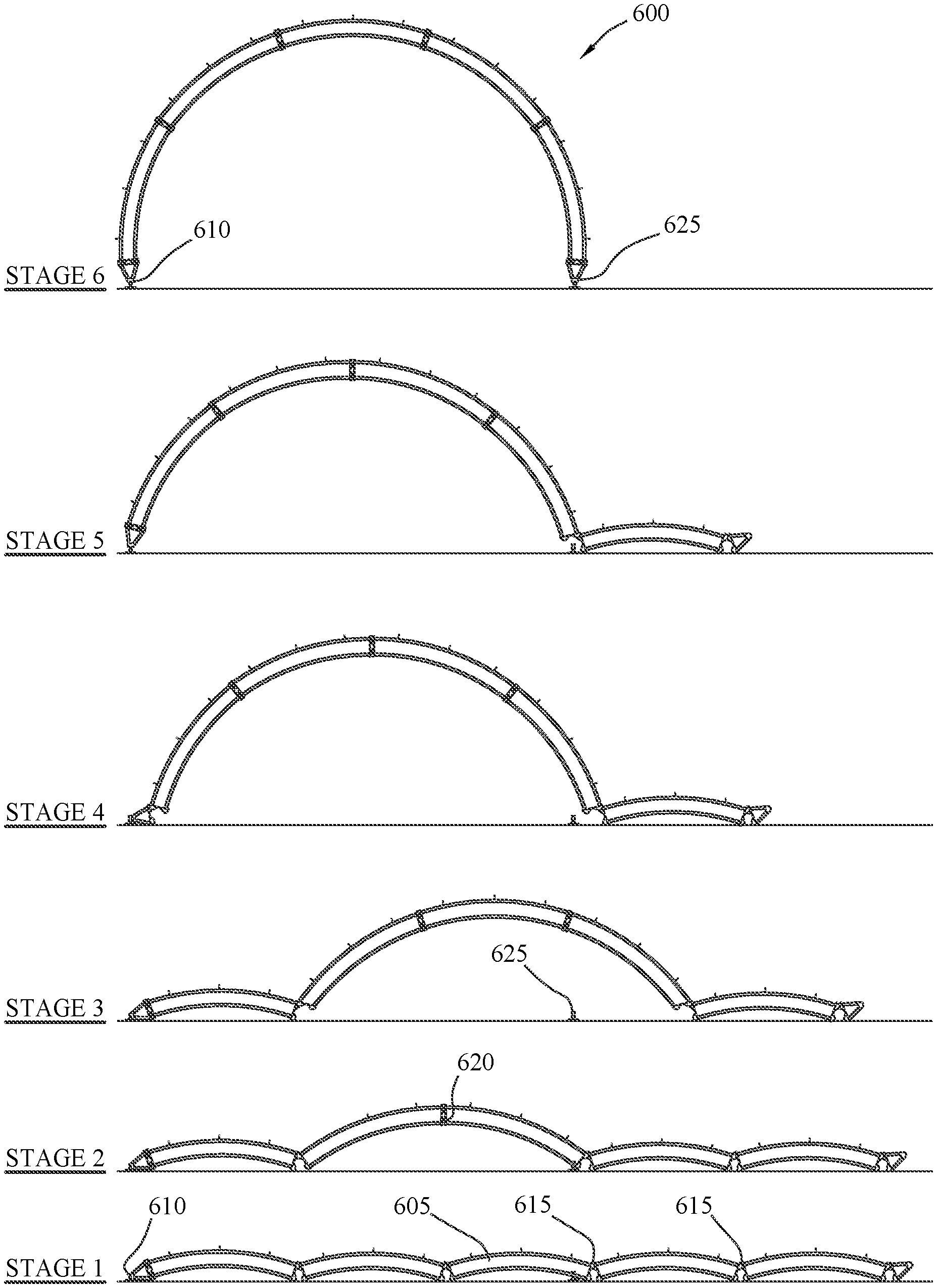

A beam system and method of erecting a supporting arch enables large roofed structures to be erected quickly and economically. The method includes aligning a plurality of structural elements longitudinally; connecting upper corners of the structural elements to upper corners of adjacent structural elements, wherein adjacent lower corners of the structural elements remain unconnected; elevating first and second structural elements in a middle of the supporting arch; connecting lower corners of the first and second structural elements together; elevating third and fourth structural elements adjacent the first and second structural elements, respectively; and connecting lower corners of the third and fourth structural elements to lower corners of the first and second structural elements, respectively.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- E04B Class
- 1238 Applications Filed
- 821 Patents Issued To-Date
- 66.32 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- E04B Class
- 52.43 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 16, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 16, 2031 |
