Corrosion and Wear Resistant Overlay, Method for Forming Corrosion and Wear Resistant Overlay, and Corrosion and Wear Resistant Valve
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 27, 2019
app pub date -
Dec 21, 2018
filing date -
Dec 21, 2018
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

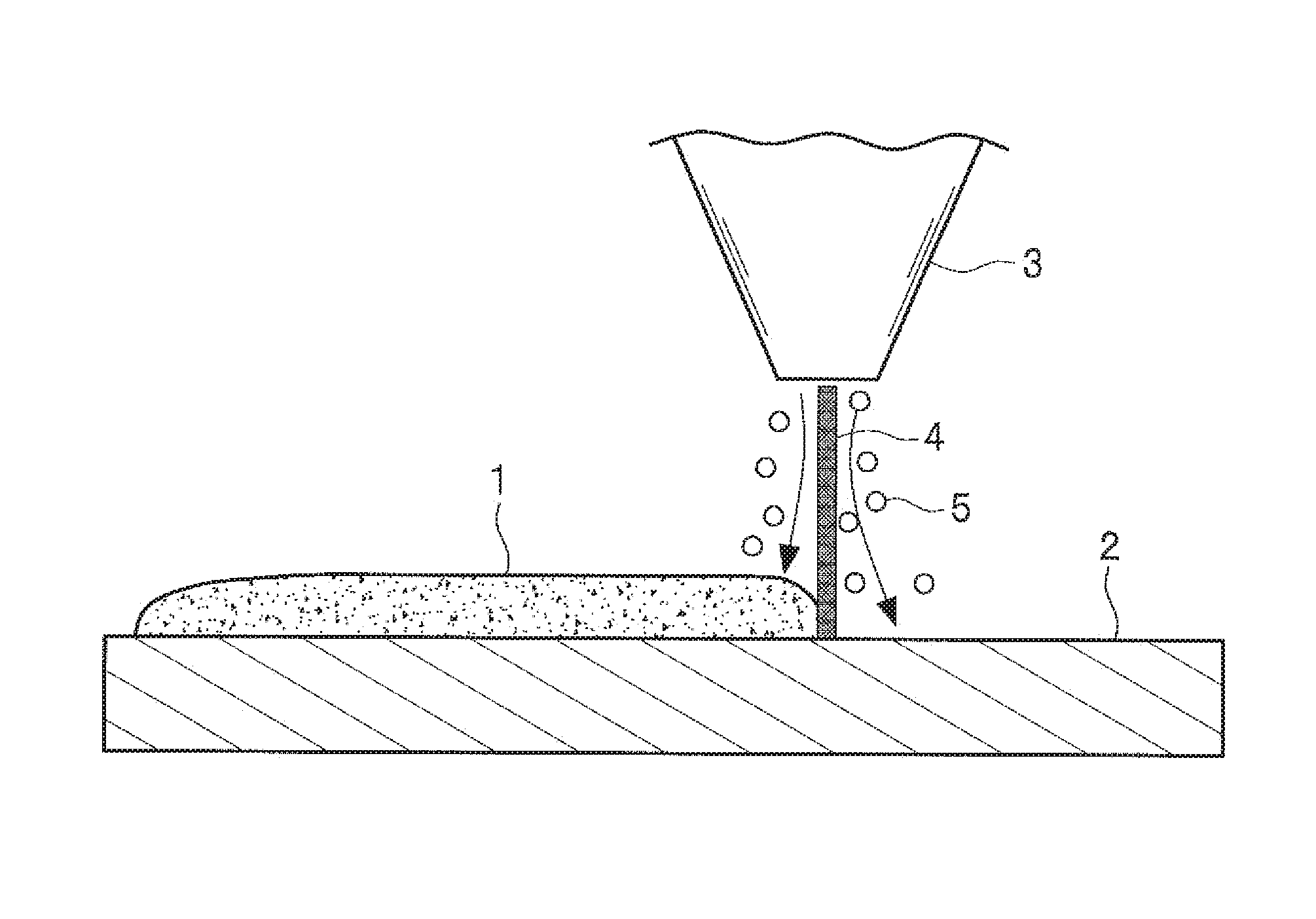

The present invention is intended is to improve the corrosion resistance of an overlay used in a nuclear power plant, and to reduce dissolution of cobalt from an overlay. The corrosion and wear resistant overlay is formed along a surface of a base by laser lamination modeling, and is configured from a plurality of metal layers of a Co-base alloy. The thickness of carbide eutectics that precipitate in the metal layers is the largest in the metal layer closest to the base, and is gradually smaller in the metal layers farther away from the base. The intensity of the laser beam applied to form layers by laser lamination modeling is adjusted so that the carbide eutectics that precipitate in at least the outermost metal layer have a controlled size of 10 μm or less.
First Claim
Other Claims data not available
