Bicycle saddle with multi-density zones
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 28, 2020
Grant Date -
Jun 20, 2019
app pub date -
Dec 20, 2017
filing date -
Dec 20, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

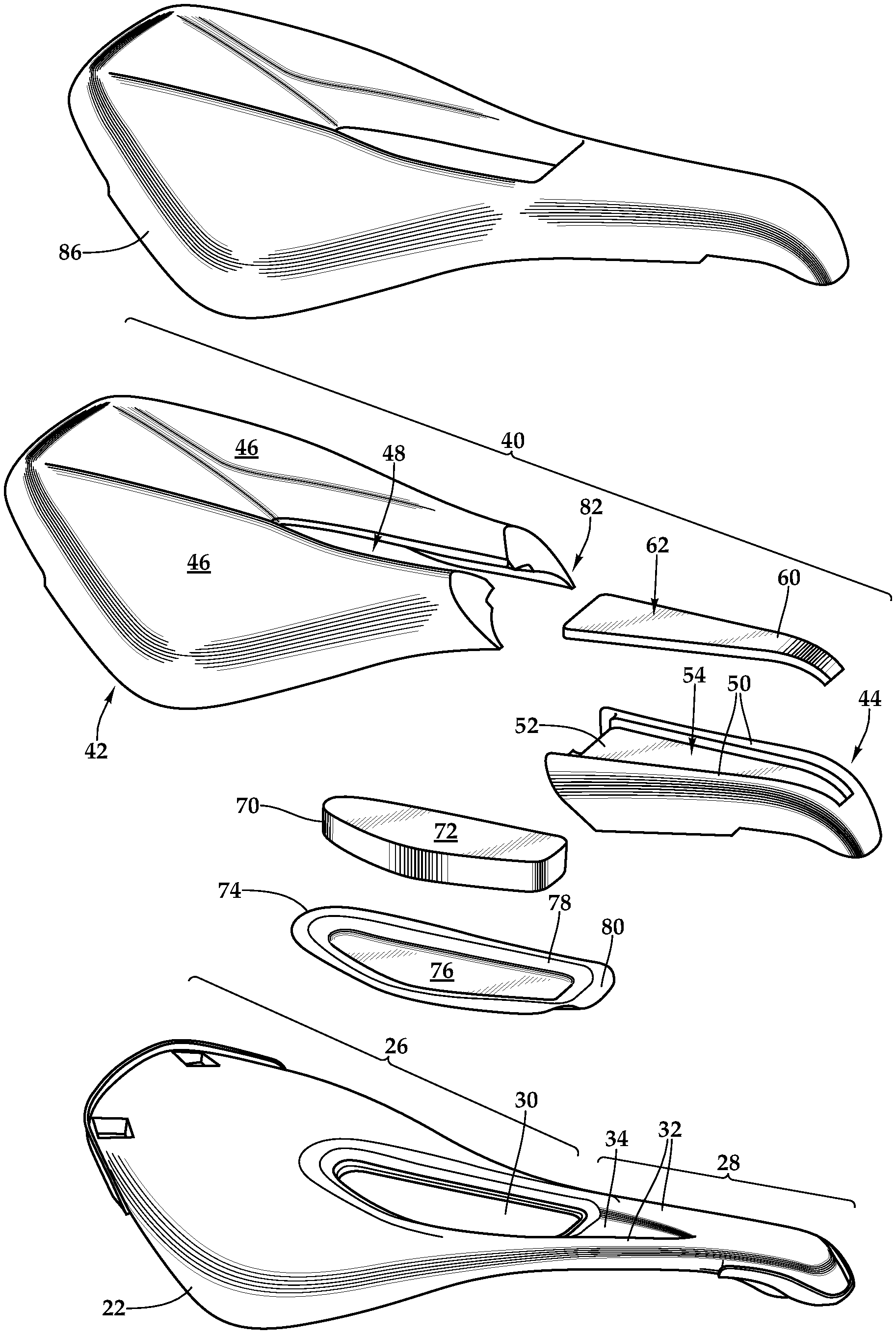

A bicycle saddle comprising a base, a rear portion positioned on the base, and a front portion positioned on the base. The rear portion supports the sit bones of the rider and includes a first resilient material having a first hardness (e.g., 45-55 Shore C), and the front portion supports the genitalia of the rider and includes a second resilient material having a second hardness (e.g., 35-45 Shore C) less than the first hardness. The front portion includes side portions having a first thickness above a highest part of the side sections, and the side portions are separated by a central portion having a second thickness less than the first thickness. Preferably, a lower surface of the central portion is substantially unsupported to form a trampoline-like structure. The upper surface of the central portion can include memory foam and is substantially flush with upper surfaces of the side portions.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2017 Application Filing Year
- B62J Class
- 476 Applications Filed
- 340 Patents Issued To-Date
- 71.43 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- B62J Class
- 41.88 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 28, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 28, 2031 |
