Water diverter for outboard marine motors
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 26, 2020
Grant Date -
Jun 13, 2019
app pub date -
Dec 12, 2018
filing date -
Dec 12, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

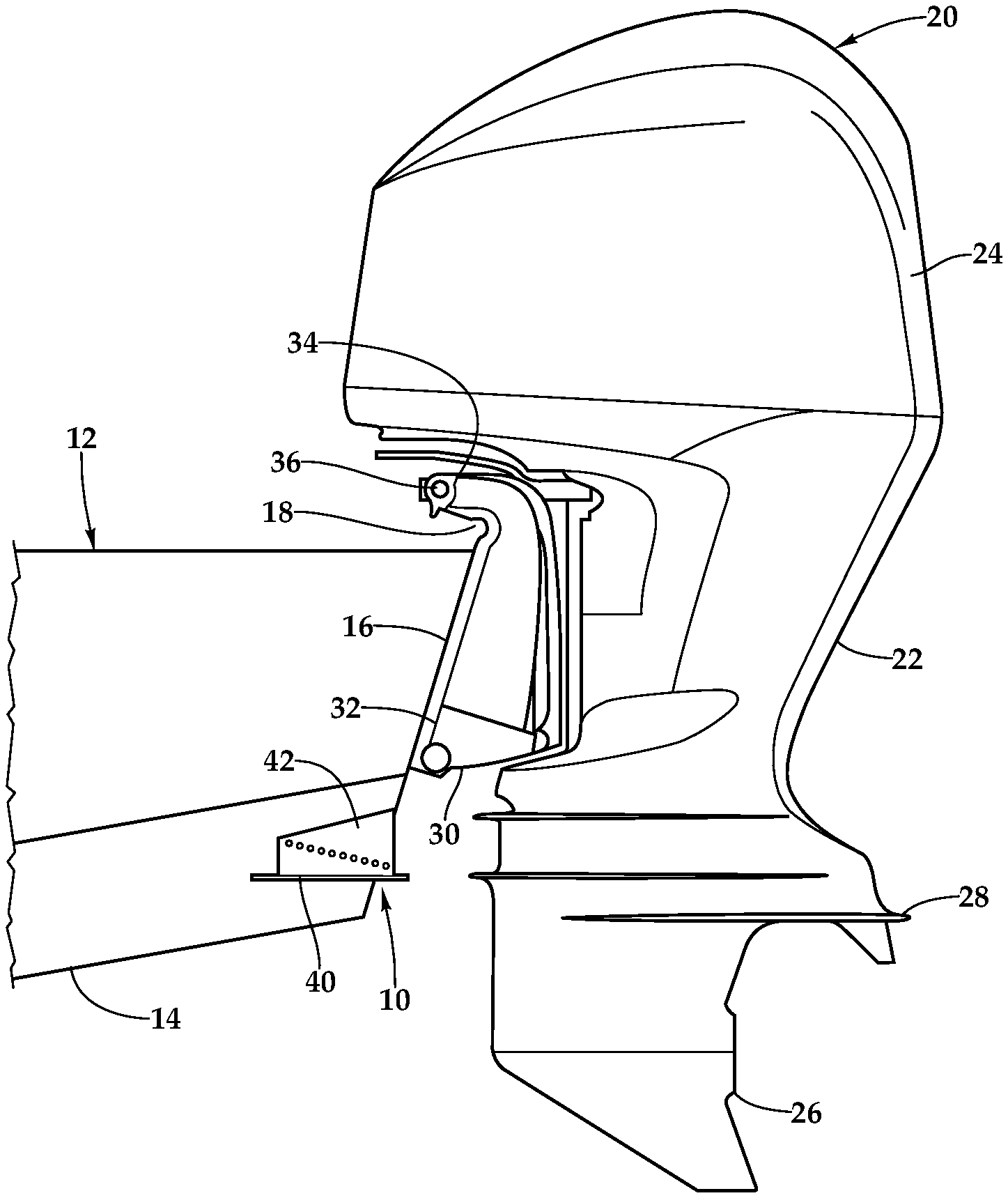

A water diverter for outboard marine motors is presented. In one embodiment, the water diverter is adapted to be secured to a transom bracket which includes a portion adapted to be mounted on a boat transom. The water diverter includes a body and a bracket. The body has a horizontal deflection plate with a triangular shape. Two vertical deflection plates extend upward along the edges of the horizontal deflection plate. The bracket includes a horizontal mounting surface having a triangular shape. Two vertical attachment walls extend downward along the sides of the horizontal mounting surface. The bracket is sized to fit within the body with alignment of attachment openings of the vertical deflection plates and attachment holes of the vertical attachment walls determining a fastener-based selectively adjustable vertical displacement between the horizontal deflection plate and the horizontal mounting surface.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2018 Application Filing Year
- B63B Class
- 872 Applications Filed
- 624 Patents Issued To-Date
- 71.56 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B63B Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 26, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 26, 2031 |
