Vertical heat recovery steam generator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 14, 2021
Grant Date -
Jun 6, 2019
app pub date -
Jul 19, 2016
filing date -
Jul 19, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

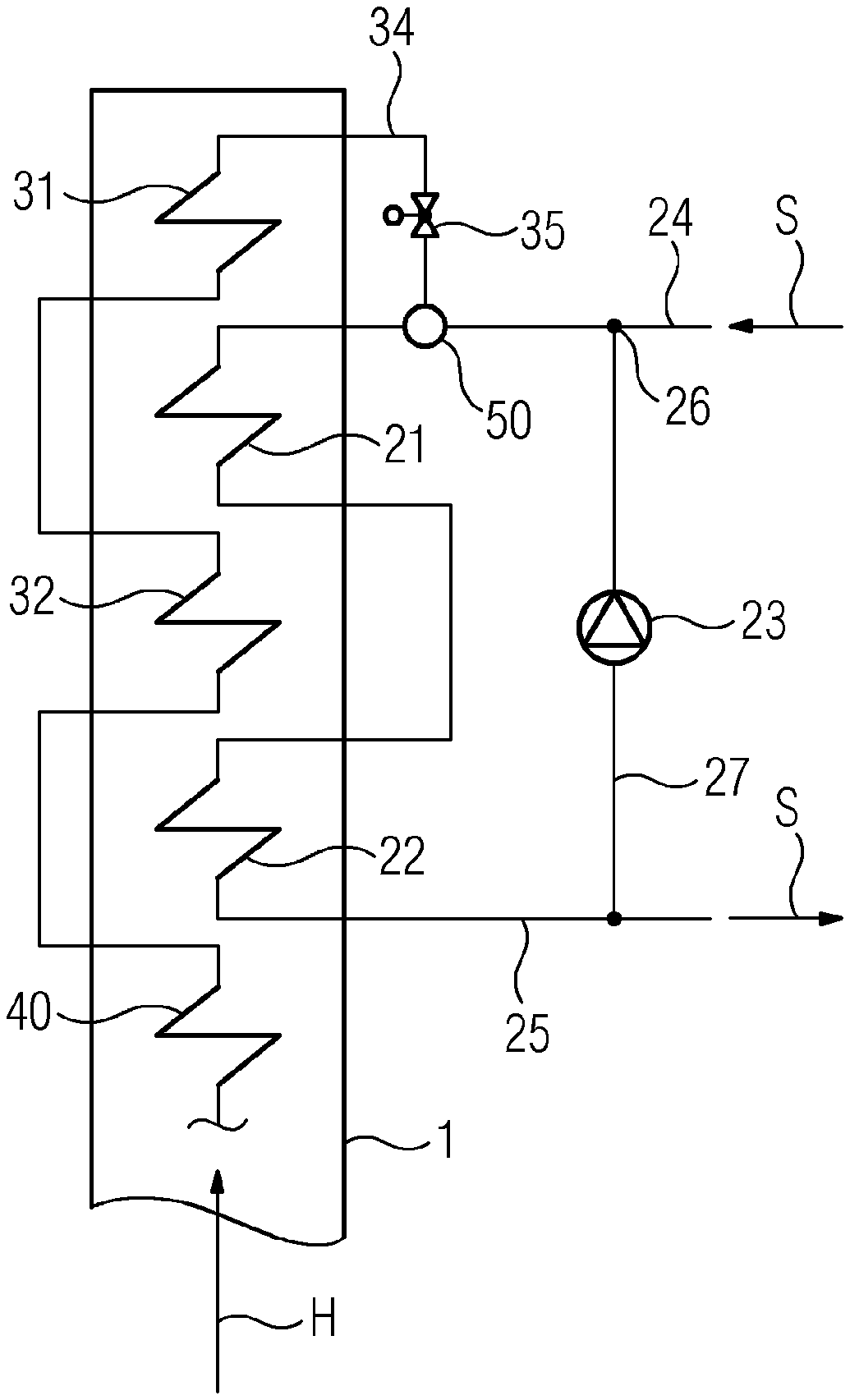

A vertical heat recovery steam generator, the low-pressure stages of which are designed as a once-through system, having a condensate preheater with at least one condensate preheater heating surface, through which a flow medium flows and which is disposed in a hot gas channel through which hot gas flows, a low-pressure preheater with at least one low-pressure preheater heating surface through which the flow medium flows and which is disposed in the hot gas channel, and a low-pressure evaporator with at least one low-pressure evaporator heating surface through which the flow medium flows and which is disposed in the hot gas channel. The flow medium flows successively through the at least one low-pressure preheater heating surface and the at least one low-pressure evaporator heating surface in one pass and without additional pressure compensation.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| EP | B1 | EP3472515 | Jul 19, 2016 |
| CN | B | CN109477633 | Jul 19, 2016 |
| CA | C | CA3031202 | Jul 19, 2016 |
| JP | B2 | JP6745971 | Jul 19, 2016 |
| WO | A1 | WO2018014941 | Jul 19, 2016 |
| KR | B1 | KR102229868 | Jul 19, 2016 |
International Classification(s)
- 2016 Application Filing Year
- F22B Class
- 213 Applications Filed
- 159 Patents Issued To-Date
- 74.65 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F22B Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Mar 14, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 14, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 14, 2033 |
