Conveying apparatus and image recording apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 19, 2020
Grant Date -
May 9, 2019
app pub date -
Oct 5, 2018
filing date -
Jan 29, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

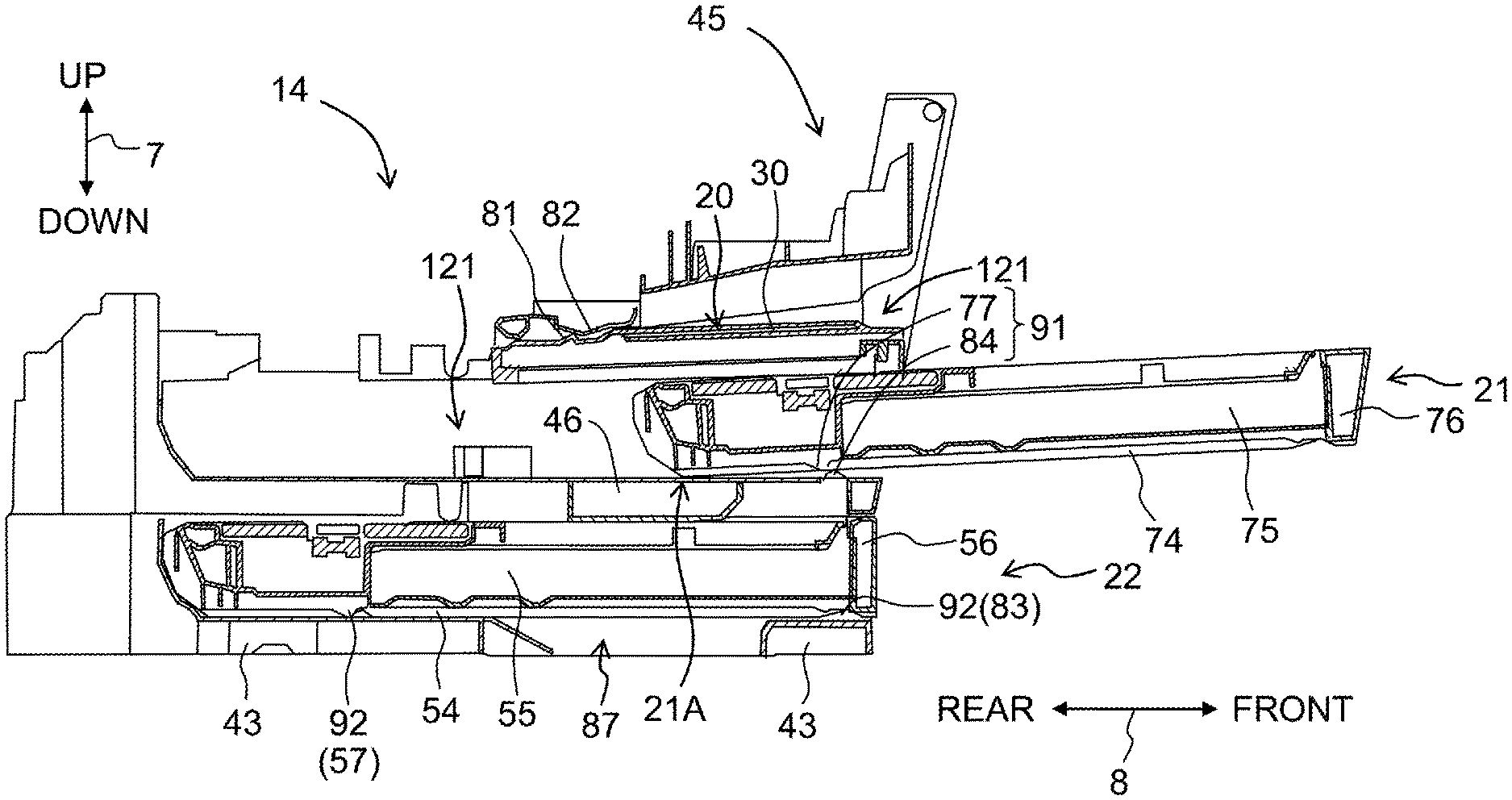

There is provide a conveying apparatus conveying a sheet including: a main body formed with a conveyance path; a first feed tray installable in the main body at a first position; a discharge tray; and a first regulating section performing regulation for regulating movement of the first tray, in a state of being located at a second position, toward the other side in a first direction. The first regulating section is configured to release the regulation, in a case that the first feed tray, at the second position, is moved upwardly by a first predetermined moving amount. A spacing distance in the up/down direction between the first feed tray and the discharge tray is shorter than the first predetermined moving amount. The discharge tray is configured to be move upwardly by being contacted with the first feed tray in a case that the first feed tray is moved upwardly.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- B41J Class
- 2975 Applications Filed
- 2461 Patents Issued To-Date
- 82.73 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B41J Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 19, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 19, 2031 |
