Method and apparatus for the thread-stitching
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 20, 2020
Grant Date -
May 9, 2019
app pub date -
Aug 31, 2018
filing date -
Nov 8, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

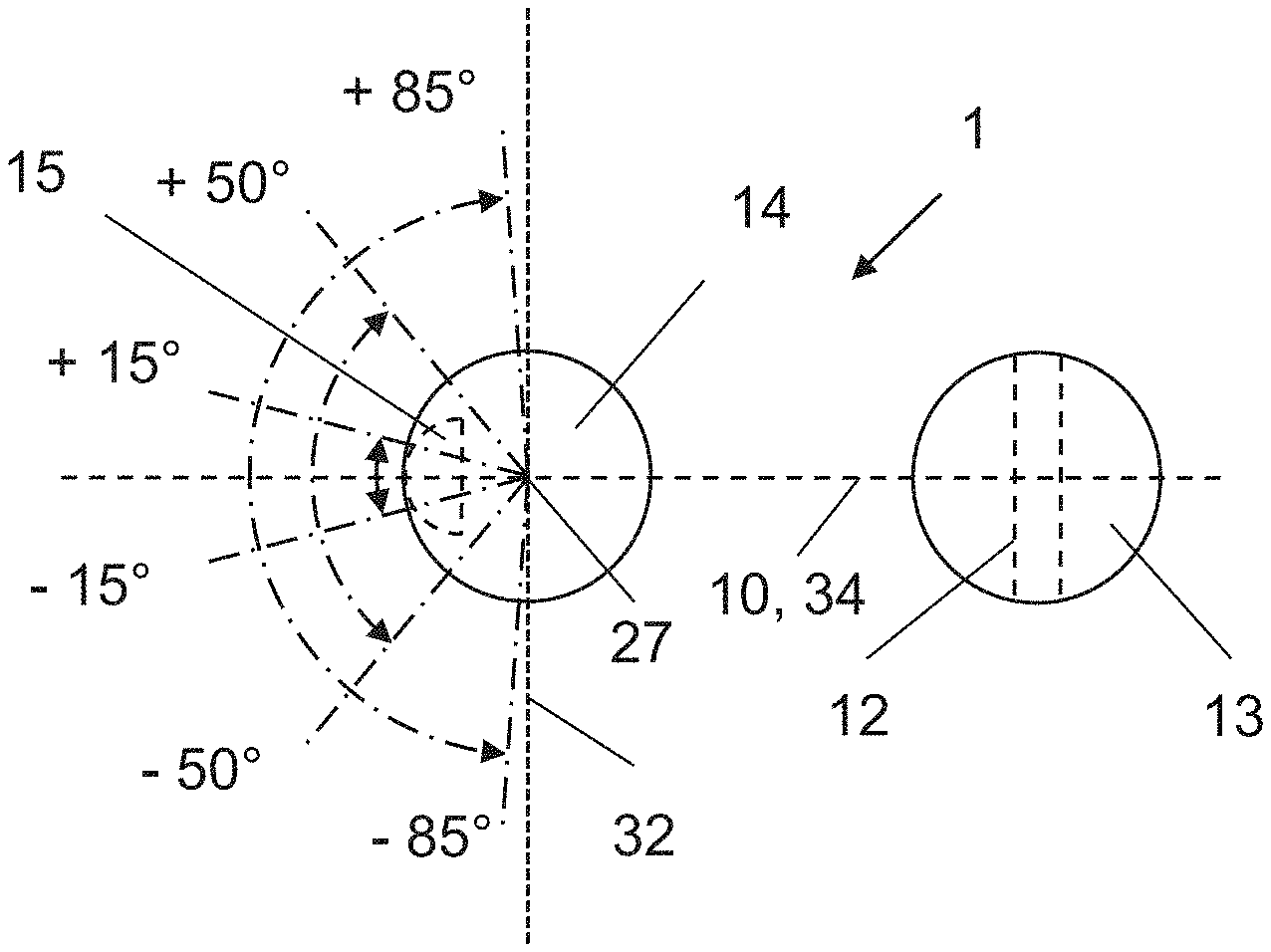

A method and an apparatus for the thread-stitching of folded signatures, for which individual folded signatures which are successively lined up along their flat sides are sewn together with at least one sewing needle and at least one hook needle to form a book block. Prior to penetrating the fold of the signature to be sewn from the inside to the outside and before penetrating the eyelet of the previously sewn signature, the hook needle is rotated in such a way around its longitudinal axis that its hook is positioned in a vertical symmetry axis of the eyelet, on a side of the hook needle that faces the previously sewn signature. The hook needle can be rotated for this at an optional angle (α) around its longitudinal axis and the hook can be positioned at an optional rotational position.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- B42B Class
- 24 Applications Filed
- 20 Patents Issued To-Date
- 83.34 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B42B Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 20, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 20, 2032 |
