SHAPED CHARGE LINER METHOD AND APPARATUS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 28, 2019
app pub date -
Aug 6, 2018
filing date -
Aug 6, 2018
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

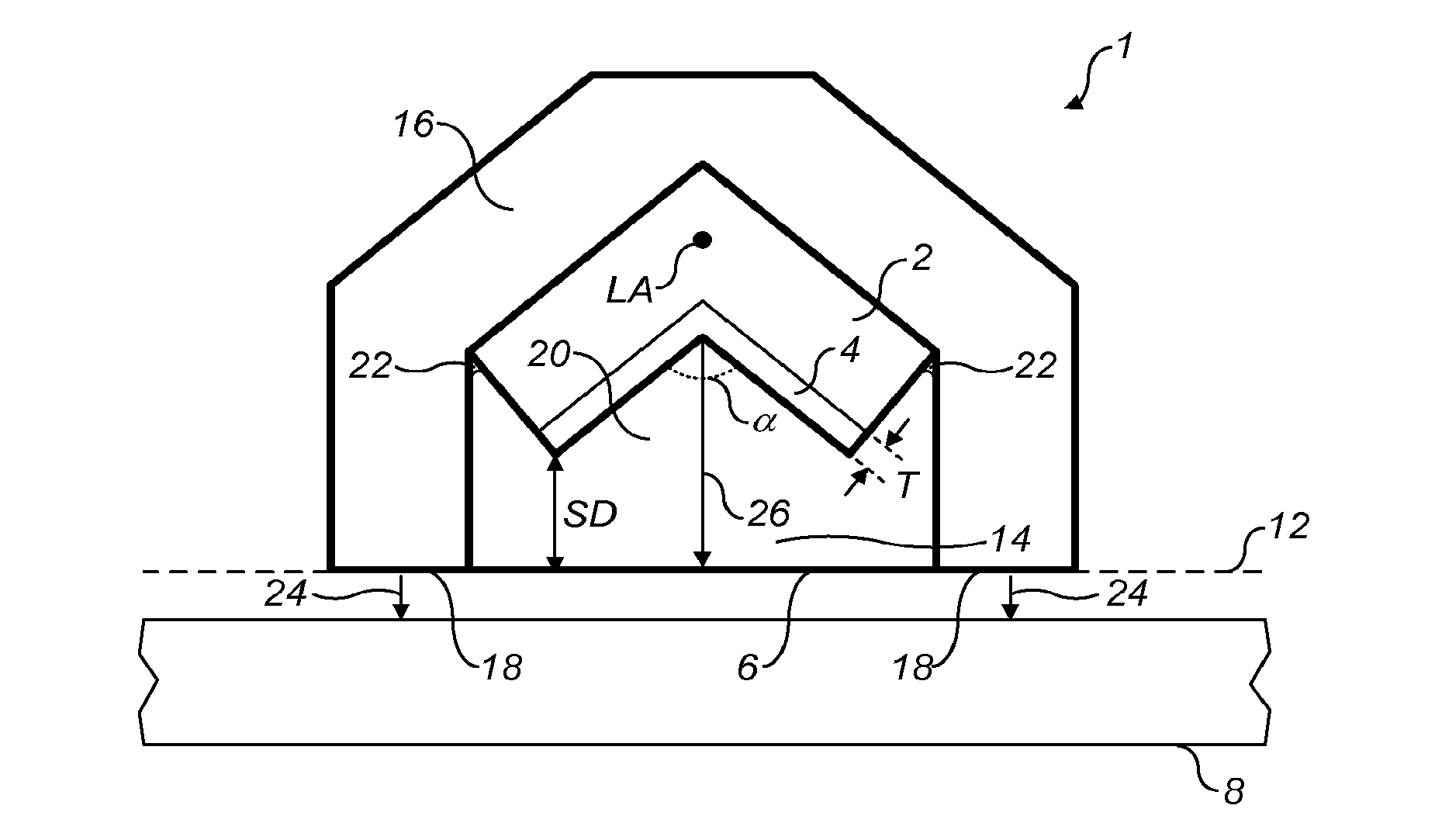

One or more aspects of the present disclosure relate to a method of at least partly manufacturing a liner for a linear shaped charge. The method can include coating each of a plurality of metal particles with a non-metal, to form a plurality of coated spherical particles; mixing, without a solvent, the plurality of coated spherical particles with a polymer binder and at least one of: a filler, a dry lubricant, or a wet lubricant, until a flexible material is formed with the plurality of coated spherical particles dispersed homogeneously in the polymer binder and the flexible material has a mass of at least 5,700 kg per cubic meter volume of the flexible material; and at least partly forming a liner for the linear shaped charge from the flexible material.
First Claim
Other Claims data not available
