DEADBOLT DOOR LOCKING APPARATUS

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20190071901A1
SERIAL NO

16180282

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

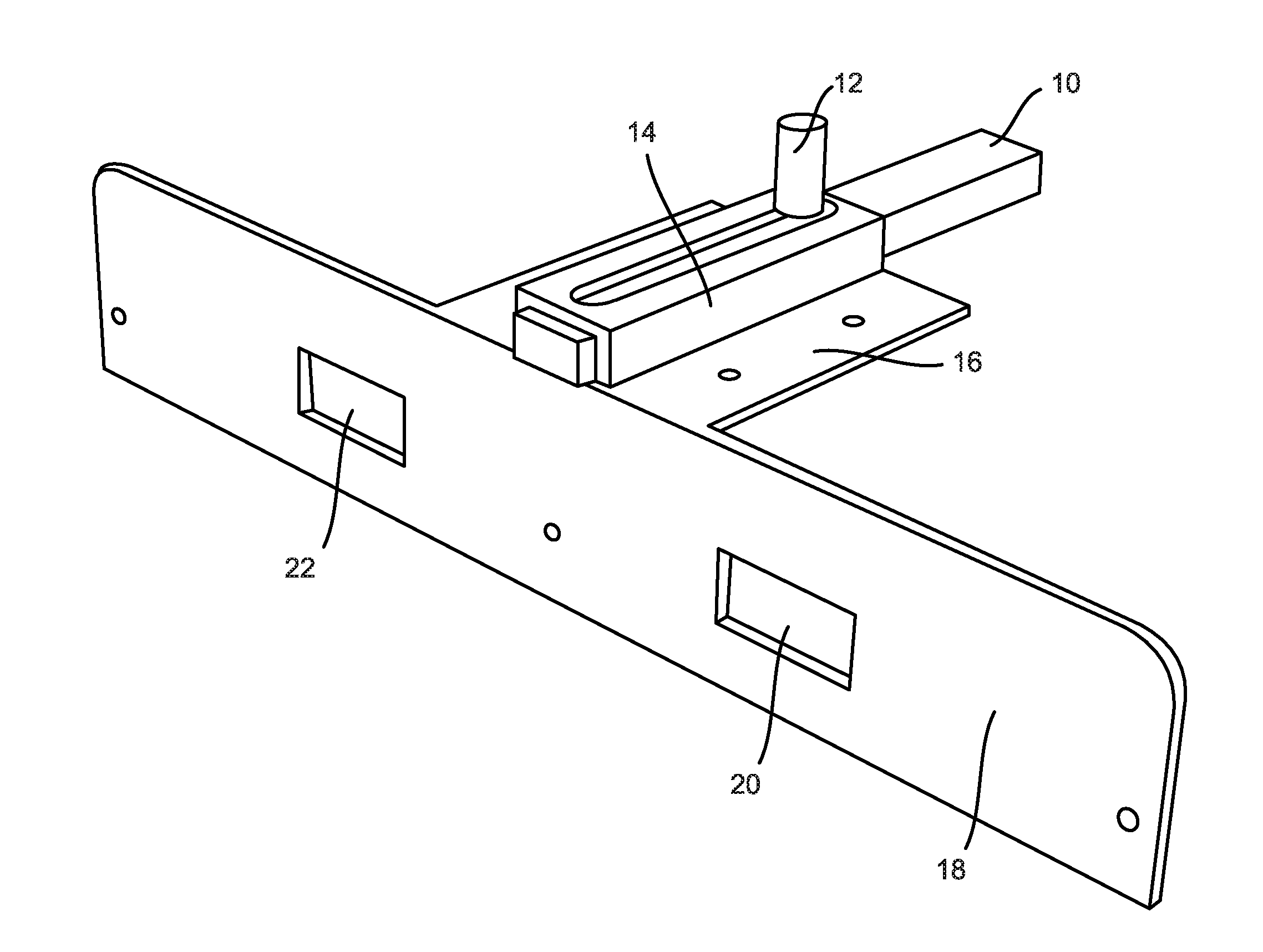

A deadbolt door locking apparatus for a side hinged door is provided that includes a deadbolt having a longitudinal axis. The deadbolt has a handle protruding therefrom. A housing for the deadbolt has an aperture external face. The handle slides in the aperture between an extended position with the deadbolt overlying the door, and a retracted position with the deadbolt clear of the door. The housing has a first wall and a second wall that together bound the deadbolt and connecting the external face to a door frame mounting plate. A mounting bracket having a cut-out adapted to receive a door latch extending from the door into a door jamb is provided that is integral with the housing and extending perpendicular therefrom. The mounting bracket has a length of at least twice the extended position of the deadbolt.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
BALCOM DERRICCANTON MI

International Classification(s)

loading....
  • 2018 Application Filing Year
  • E05B Class
  • 1226 Applications Filed
  • 881 Patents Issued To-Date
  • 71.86 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances201820192020202120222023202420250255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Balcom, Derric Canton, US 2 5
