Motor fixing structure of engraving machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 25, 2019
Grant Date -
Feb 14, 2019
app pub date -
Aug 13, 2017
filing date -
Aug 13, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

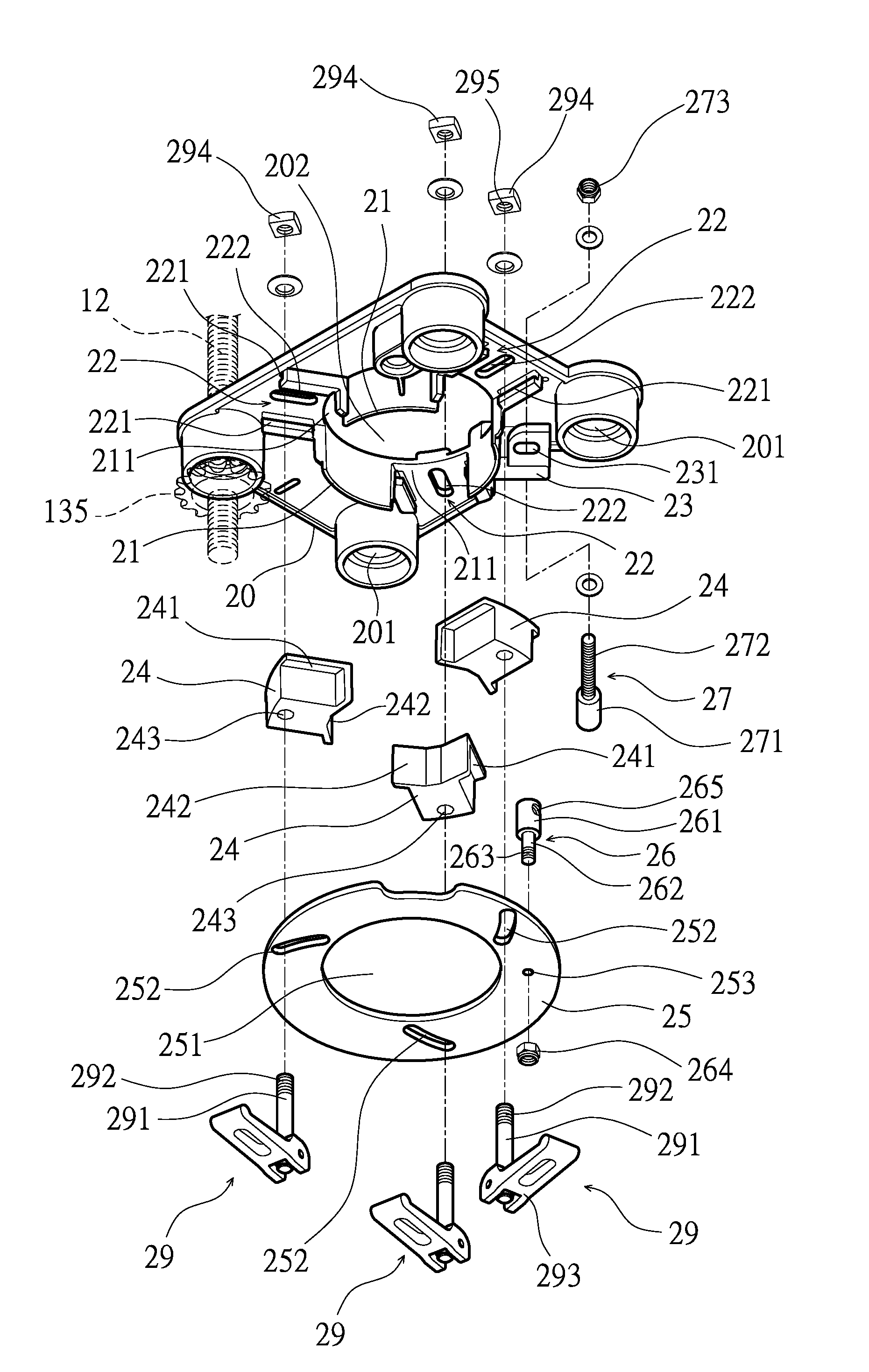

A motor fixing structure of an engraving machine is provided. A lifting platform has a through hole, at least three protruding walls spaced and arranged around the through hole, and notches each defined between every two of the protruding walls. The outer side of each notch is provided with a clamping block. The lifting platform has a radial guide hole corresponding in position to the clamping block. The clamping block has a vertical aperture. The bottom surface of the lifting platform has an adjustment seat with a peroration. The protruding walls are fitted with a turning disc. The turning disc has at least three oblique curved holes. The turning disc is pivotally connected with a shaft. A drive rod is screwed to the shaft. A quick release assembly is inserted in the corresponding oblique curved holes, the aperture and the guide hole for tightening or loosening the clamping block.
