Installation structure of magnet plate
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 20, 2018
app pub date -
May 31, 2018
filing date -
May 31, 2018
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

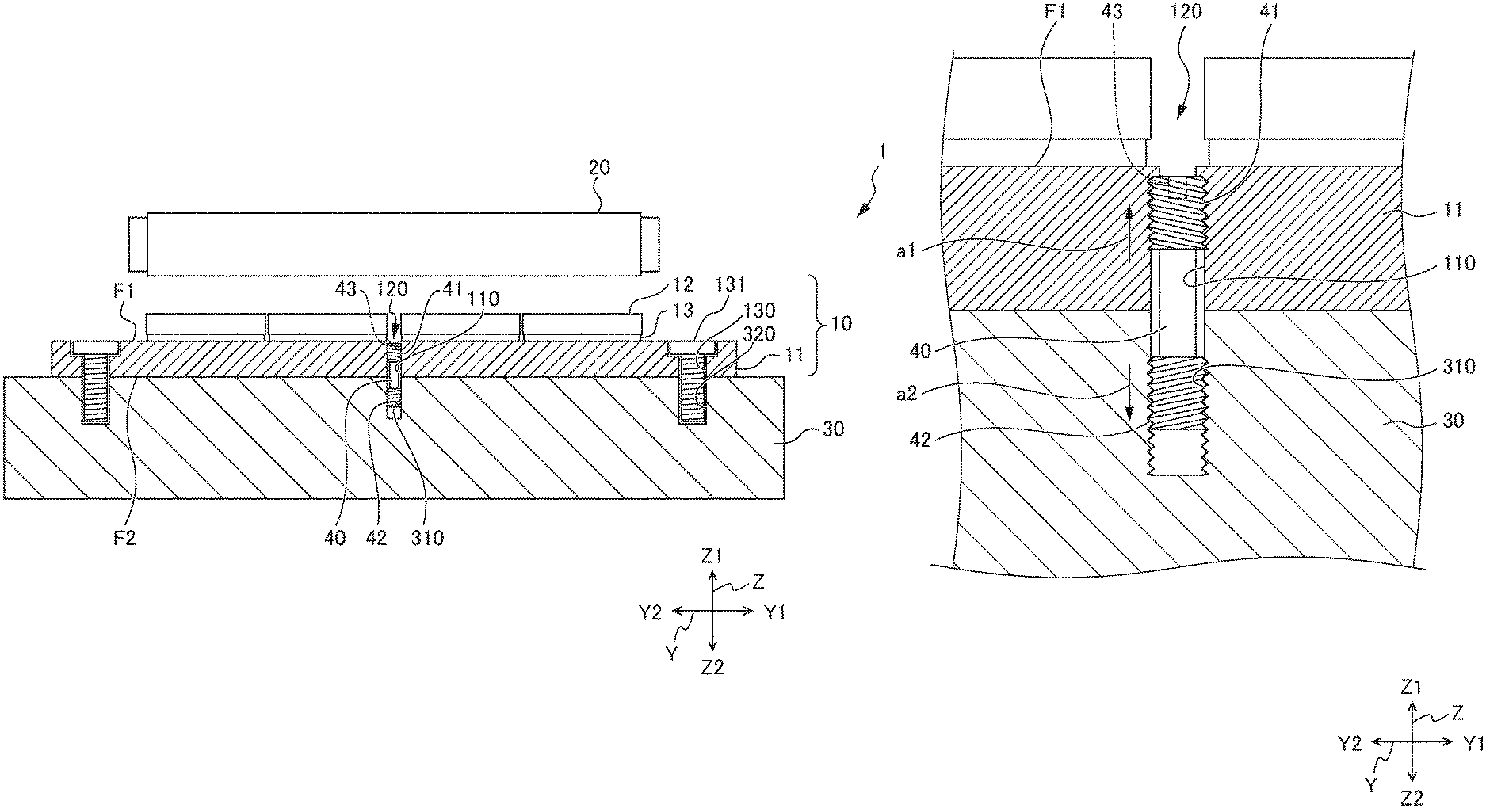

In an installation structure of a magnet plate for installing a magnet plate for a linear motor to a machine mounting part via a joining member, the magnet plate includes a first face, a second face, a first female threaded part at the second face, and an opening at the first face; the machine mounting part includes a second female threaded part having a winding direction opposite to the first female threaded part on a side opposing the magnet plate; the joining member includes a first male threaded part and a second male threaded part; and the magnet plate is installed to the machine mounting part with the first female threaded part being screwed with the first male threaded part, and with the second female threaded part of the machine mounting part being screwed with the second male threaded part.
