Indicator inspection machine, inspection method, and inspection program
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 16, 2020
Grant Date -
Dec 20, 2018
app pub date -
Jun 14, 2018
filing date -
Jun 16, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

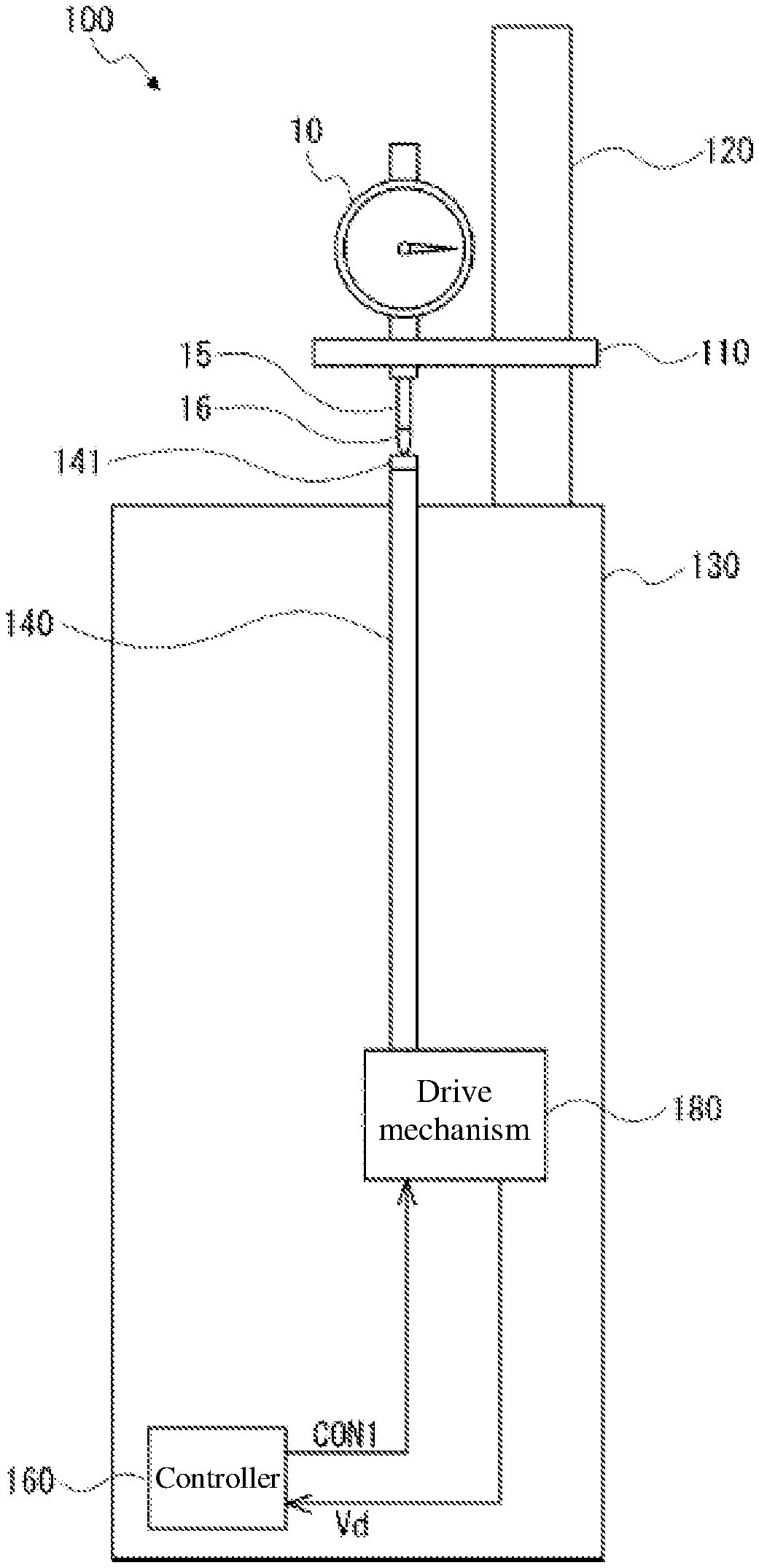

An indicator inspection machine inspects the accuracy of an indicator based on a value displayed by the indicator when a spindle changes position. The indicator inspection machine includes a measurement spindle provided so as to be freely raised and lowered in order to displace the spindle of the indicator; a contact point provided to a distalmost end of the measurement spindle, the contact point making contact with an indicator contact point provided to a distalmost end of the spindle of the indicator; a drive mechanism driving the measurement spindle; and a controller controlling the drive mechanism so as to bring the contact point into contact with the indicator contact point while changing a speed of the measurement spindle at a predetermined periodicity.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- G01B Class
- 2242 Applications Filed
- 1690 Patents Issued To-Date
- 75.38 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01B Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 16, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 16, 2031 |
