A BOLT ASSEMBLY FOR A DEADBOLT LOCK ARRANGEMENT AND A METHOD OF OPERATION THEREOF
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 13, 2018
app pub date -
Nov 9, 2016
filing date -
Nov 9, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

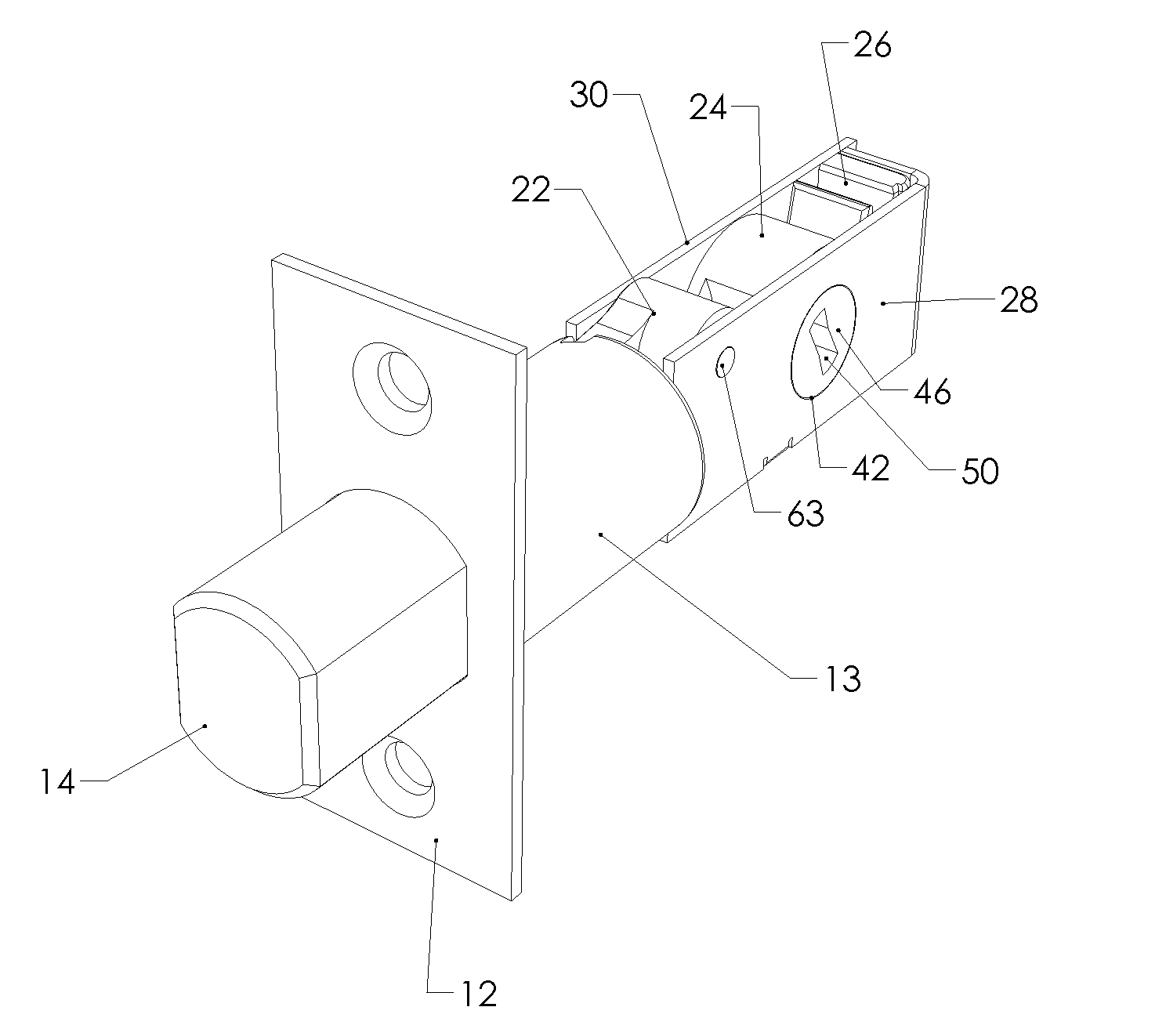

A bolt assembly for a deadbolt lock arrangement including a drivable cam in rotational engagement with a follower wheel. A bolt connecting arm pivotally connected to a bolt slidably supported within a main housing body of the bolt assembly and also connected to a follower wheel connecting arm that is connected to the follower wheel, wherein rotation of the drive cam translates to rotational movement of the follower wheel and rotational movement of the follower wheel translates to an extending or retracting positioning of the follower wheel connecting arm so as to extend or retract said bolt connecting arm to an extended position or retracted position thereby placing the bolt in a locked or unlocked configuration.
First Claim
Other Claims data not available
