Ignition apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 21, 2020
Grant Date -
Nov 29, 2018
app pub date -
Aug 23, 2016
filing date -
Aug 31, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

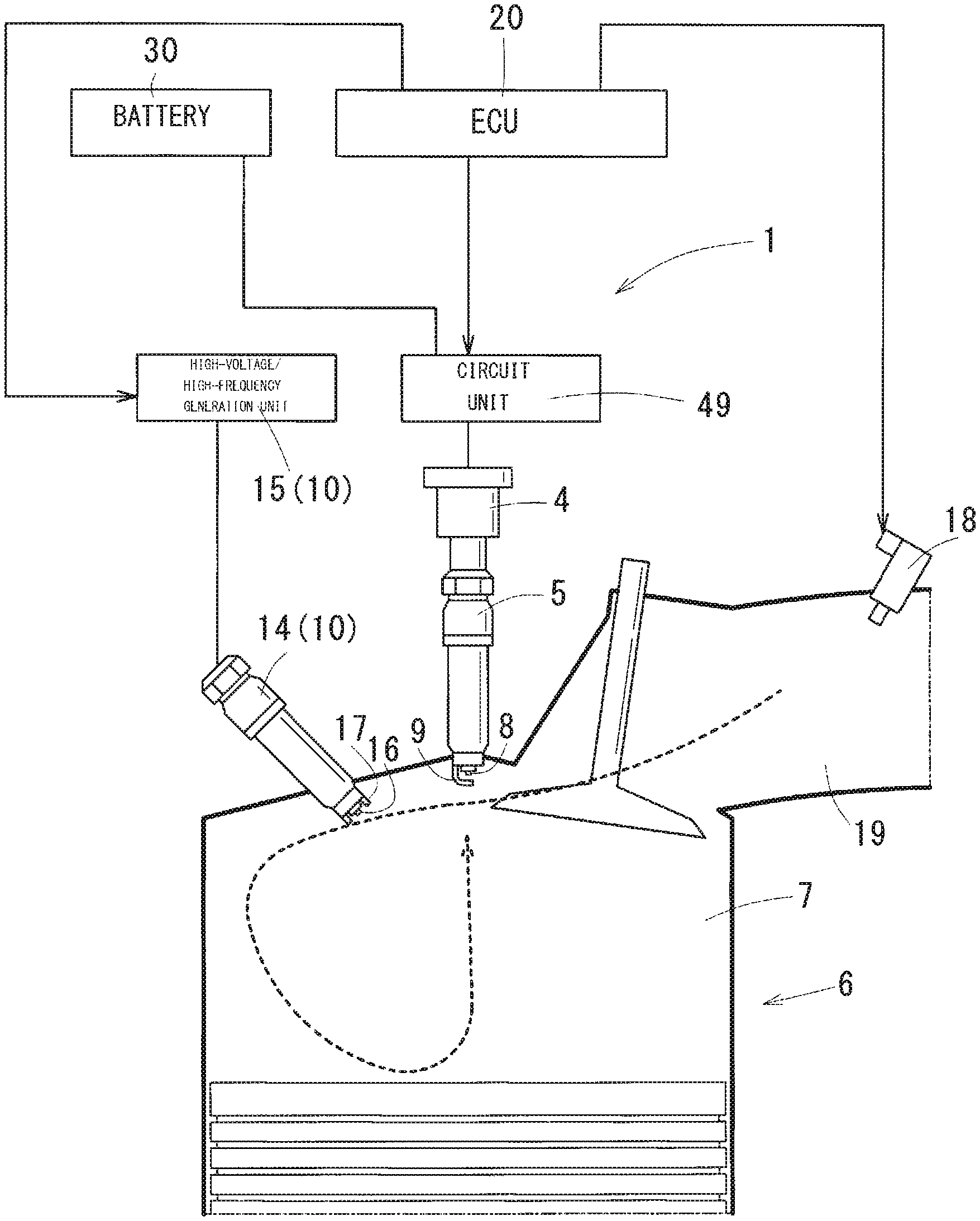

An ignition apparatus includes a plasma device, a first circuit, a second circuit, and a control unit. The plasma device produces a plasma discharge in an air-fuel mixture before an arc discharge is produced. The first circuit causes an ignition plug to start the arc discharge. The second circuit energizes a primary coil in a direction opposite to the direction of the energization by the first circuit during the arc discharge, to maintain energization of the secondary coil in the same direction as the direction of the energization started by an operation of the first circuit, to cause continuation of the arc discharge. The control unit controls operations of the first circuit, the second circuit, and the plasma device.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | A | JP2017048701 | Aug 31, 2015 |
| WO | A1 | WO2017038561 | Aug 23, 2016 |
International Classification(s)
- 2016 Application Filing Year
- F02P Class
- 319 Applications Filed
- 241 Patents Issued To-Date
- 75.55 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F02P Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 21, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 21, 2032 |
