Accessory mounting device and system using same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 19, 2021
Grant Date -
Oct 11, 2018
app pub date -
Oct 4, 2016
filing date -
Oct 9, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

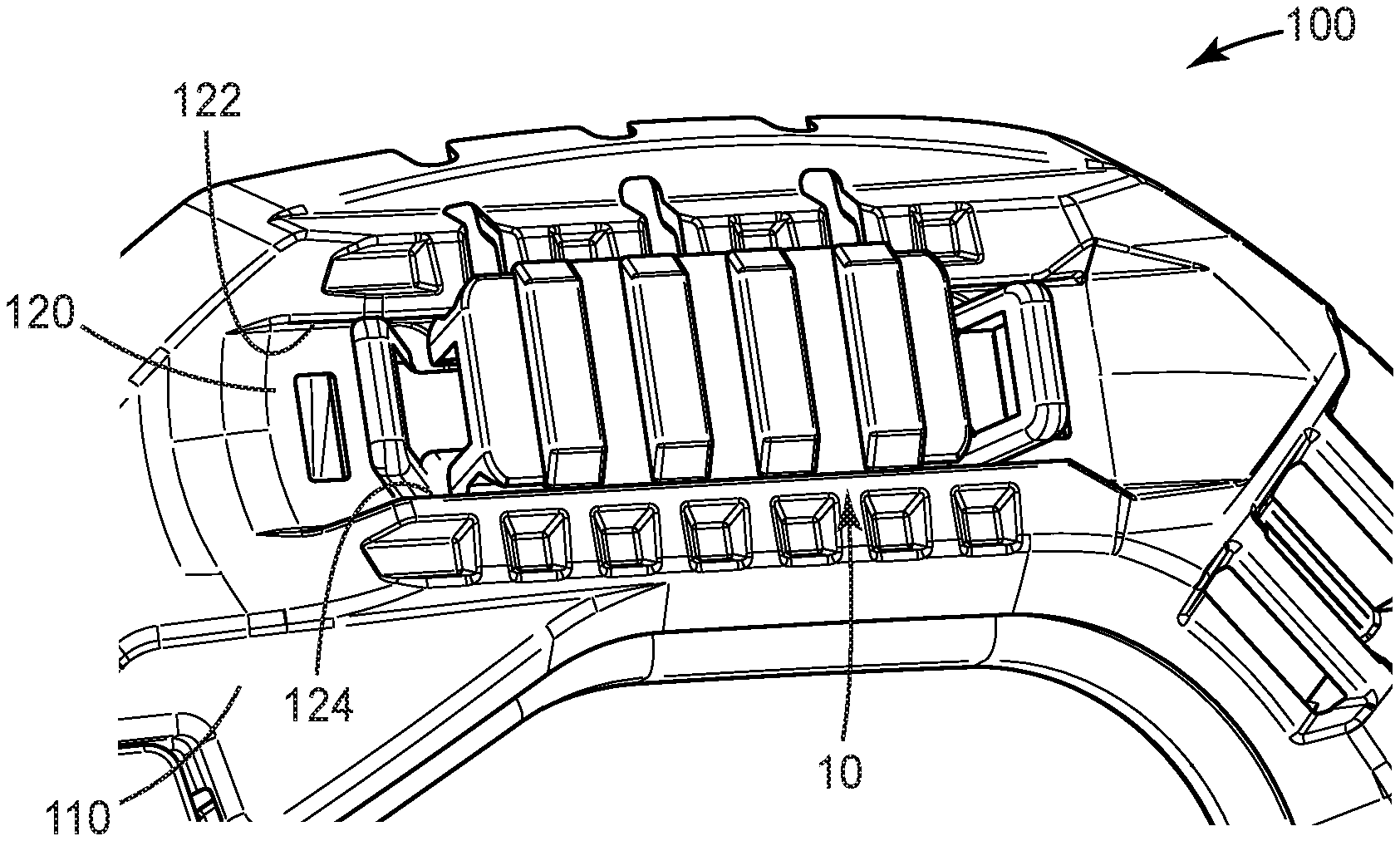

Various embodiments of an accessory mounting device are disclosed. The device can be adapted to engage an elongated rail. The device can include a body having top, bottom, and first and second side surfaces. Each of the side surfaces can include a rail engagement portion adjacent the bottom surface of the body and an accessory engagement portion adjacent the top surface. The device can also include a locking mechanism including a lever connected to the body at a pivot, and a tab extending from the lever in a direction away from the bottom surface. In one or more embodiments, the locking mechanism can include first and second levers each connected to the body at a pivot. The lever can rotate about a pivot axis in a direction toward the top surface of the body when the locking mechanism is manipulated from a locked position to an unlocked position.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F41G Class
- 360 Applications Filed
- 282 Patents Issued To-Date
- 78.34 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F41G Class
- 36.21 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Apr 19, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 19, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 19, 2033 |
