ENERGY GENERATING SYSTEM AND METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 11, 2018
app pub date -
May 26, 2016
filing date -
May 26, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

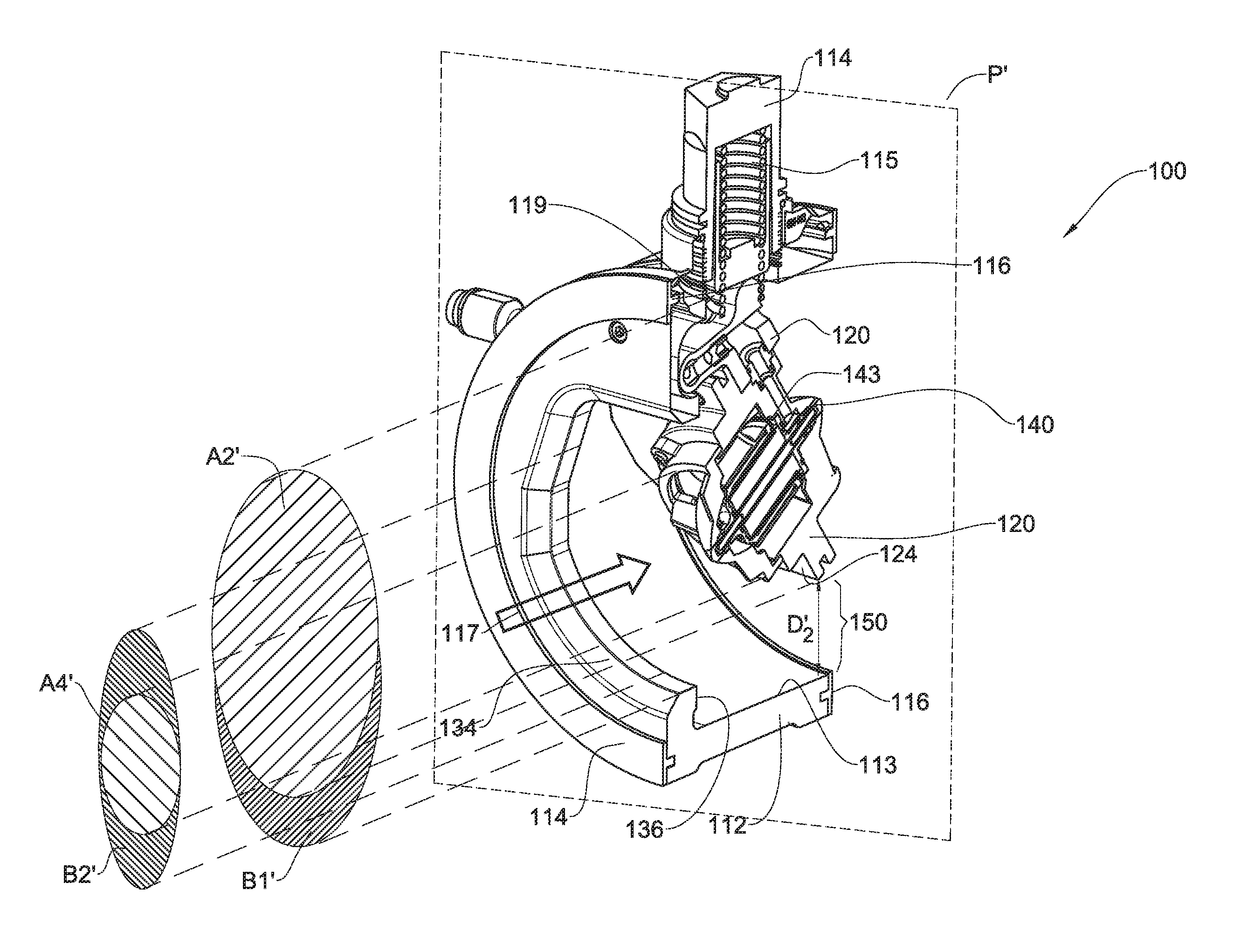

An energy generating system for transforming energy of fluid flow into electric energy, the system, at least in operation, comprising: a flow-changing member having a peripheral rim and mounted in a fluid path having a path surface, so as to be at least partially surrounded by said path surface, said flow-changing member being displaceable between a first position, in which at least a portion of the rim is spaced from a corresponding portion of the path surface to a first extent and a second position, in which said portion of the rim is spaced from said portion of the fluid path surface to a second extent greater than said first extent, so that increase of total volumetric flow rate of said fluid above a predetermined threshold to an increased volumetric flow rate is configured to induce displacement of said flow-changing member from said first position toward said second position, thereby causing the volumetric flow rate of said fluid at said spacing to be above said increased volumetric flow rate; and a turbine mounted in fluid communication with said fluid path at a location other than said spacing, whereby said displacement causes the volumetric flow rate of said fluid at said turbine to be below said increased volumetric flow rate.
First Claim
Other Claims data not available
