Method of and device for analysing a phase transformation of a material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 15, 2020
Grant Date -
Oct 4, 2018
app pub date -
Sep 8, 2016
filing date -
Sep 29, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

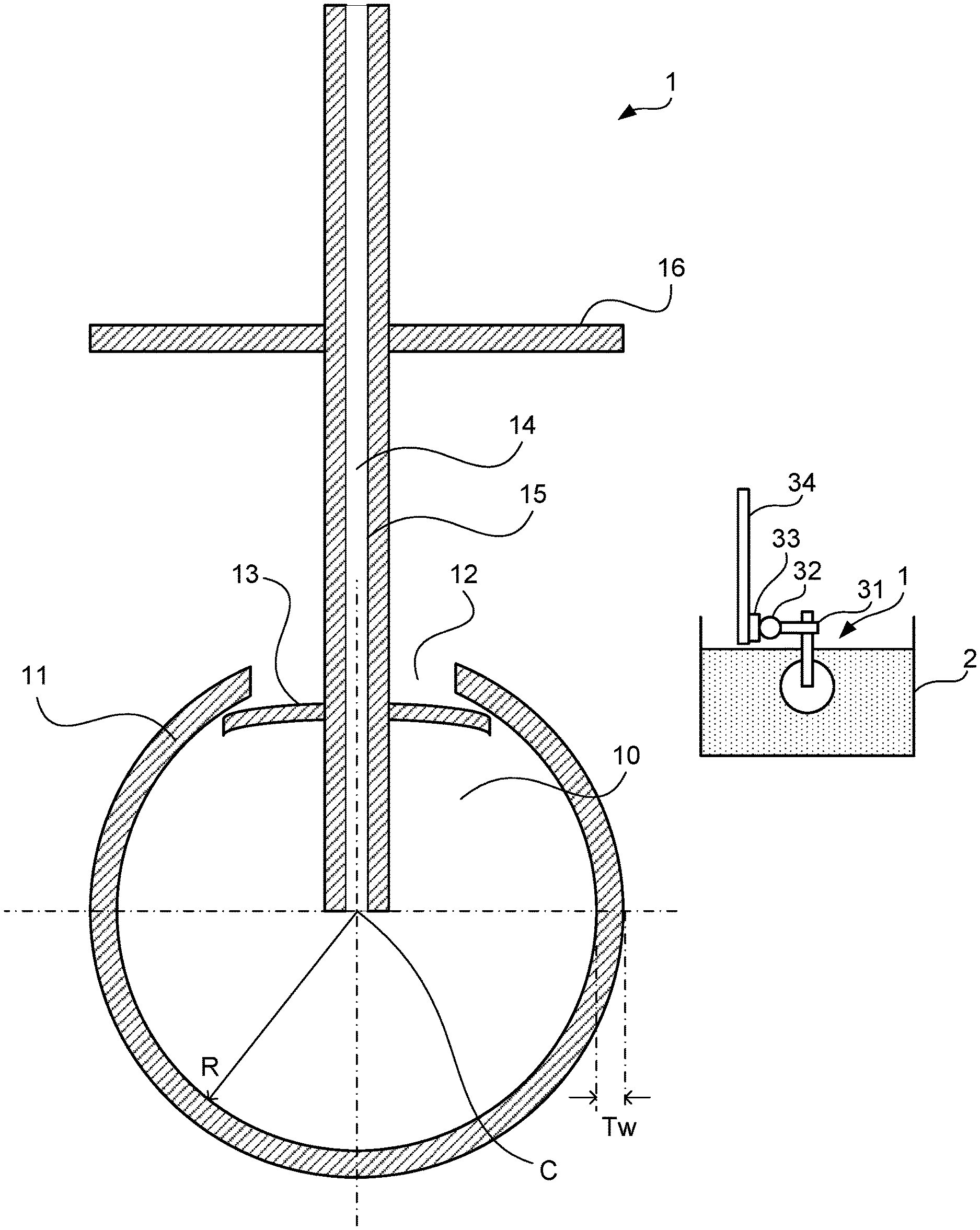

A method of analyzing a phase transformation process of a material comprises providing a spherical sample of the material, measuring and recording a first data series of core temperature at the sample's center of gravity, measuring and recording a respective second data series of temperature at the sample's periphery, measuring and recording a respective third data series of radial displacements at the sample's periphery, and calculating a change in pressure in the sample at a plurality of points in time based on first, second and third said data series.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2016 Application Filing Year
- G01K Class
- 805 Applications Filed
- 597 Patents Issued To-Date
- 74.17 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01K Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 15, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 15, 2032 |
