Modular mold for making hollow ice brick
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 26, 2020
Grant Date -
Sep 6, 2018
app pub date -
Oct 10, 2015
filing date -
Sep 18, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

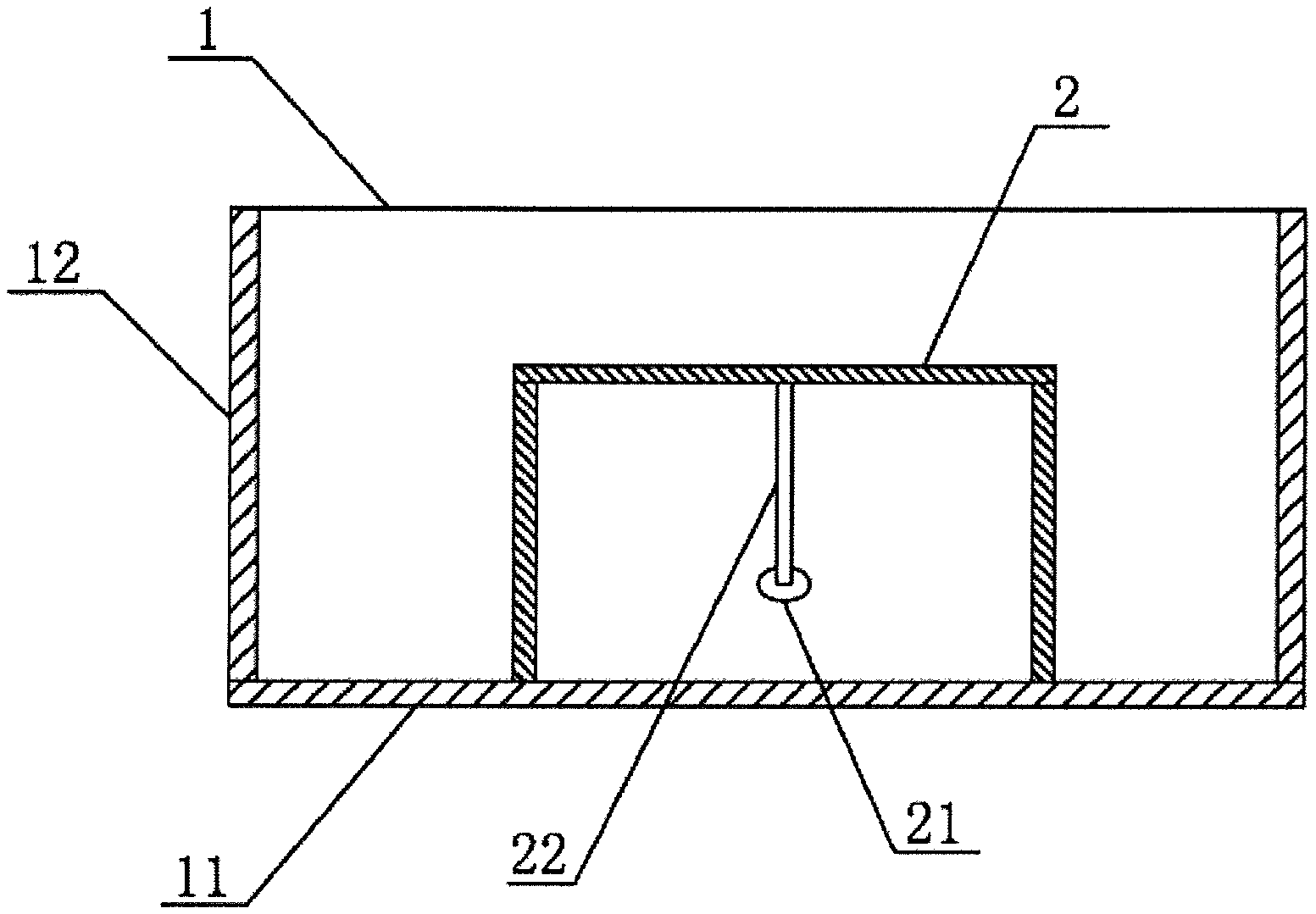

A modular mold for making a hollow ice brick includes an external mold (1) and a mold core (2). The external mold (1) is a container that is formed by a bottom plate (11) and an enclosure wall (12) and that has an opening at the top thereof. The mold core (2) is located on the bottom plate (11) of the external mold (1). The bottom plate (11) and the enclosure wall (12) of the external mold (1) as well as the mold core (2) are spliced by modular mold sheets (3). The ice making mold adopts a modular design, is spliced by mold sheets and can be quickly assembled, and molds of different shapes and sizes can be formed according to requirements of a user. The formed mold includes the external mold (1) and the mold core (2); after a liquid is added in the external mold (1), a hollow ice brick can be formed when the external mold (1) is placed in a cold place. Before an ice brick is formed, the thickness of an ice layer in the hollow ice brick can be adjusted by regulating the distance between the mold core (2) and an inner wall of the external mold (1). The mold is a dedicated ice making mold, has a simple structure, can be combined more conveniently because of the modular design, and provides more sizes and shapes that can be selected by users, such that the mold is convenient and practical.
