Securing system for securing a roof structure in a notch on the roof of a switch cabinet
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 9, 2020
Grant Date -
Aug 2, 2018
app pub date -
Jul 18, 2016
filing date -
Jul 23, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

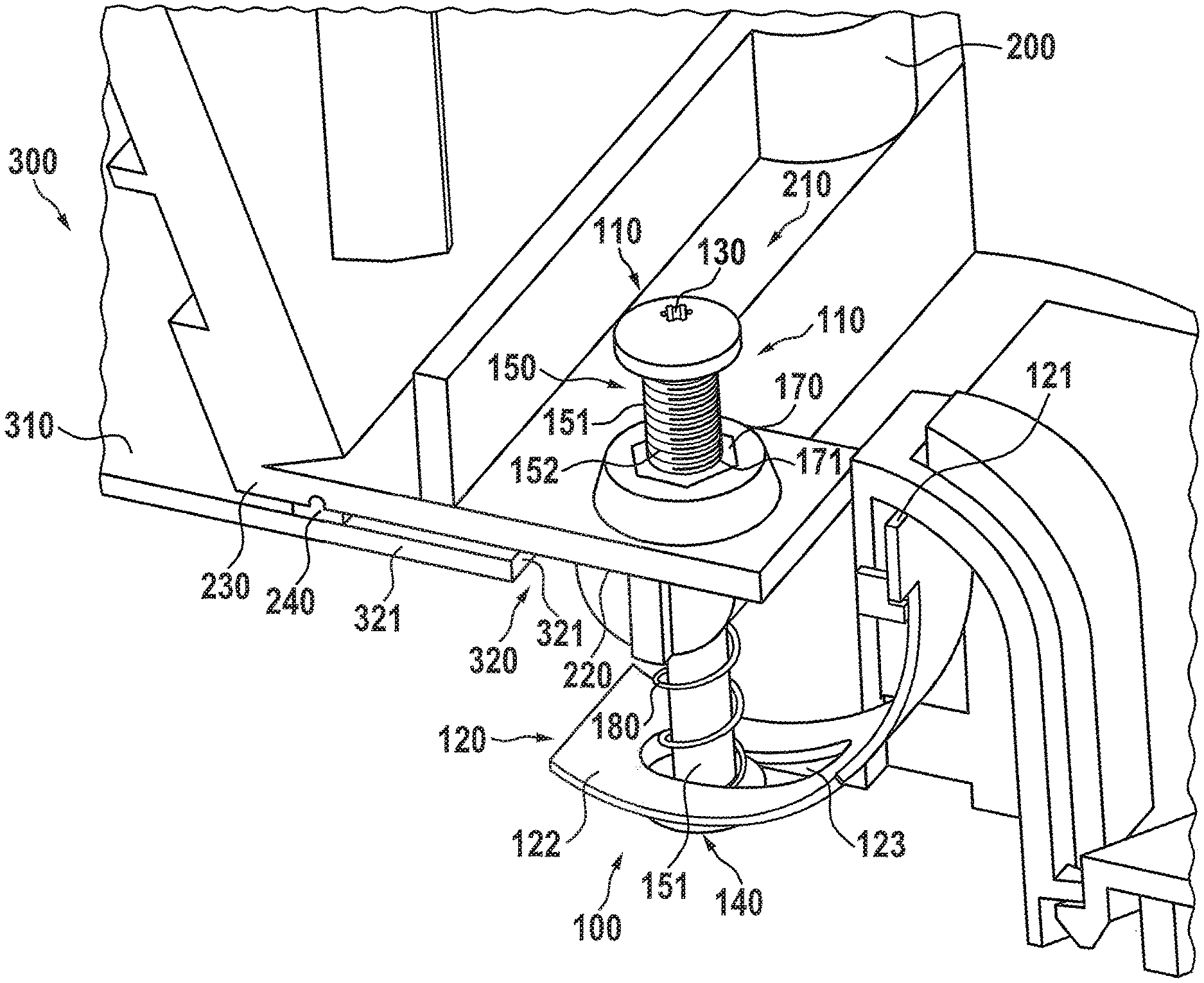

The invention relates to a securing system for securing a roof structure, in particular a cooling device, in a notch on the roof of a switch cabinet, wherein the securing system comprises a pretensioning device connected to the roof structure for a securing clamp, wherein the securing clamp comprises a fixed end and an end that moves with respect to the fixed end, on which the pretensioning device engages, so that a radius of curvature of the securing clamp can be set via the pretensioning device, wherein in a first position of the pretensioning device, the securing clamp engages underneath an edge of the notch and thereby fixes the roof structure on the switch cabinet, and in a second position of the pretensioning device, the securing clamp releases the notch.
