COMBUSTOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 30, 2015
filing date -
Jun 8, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

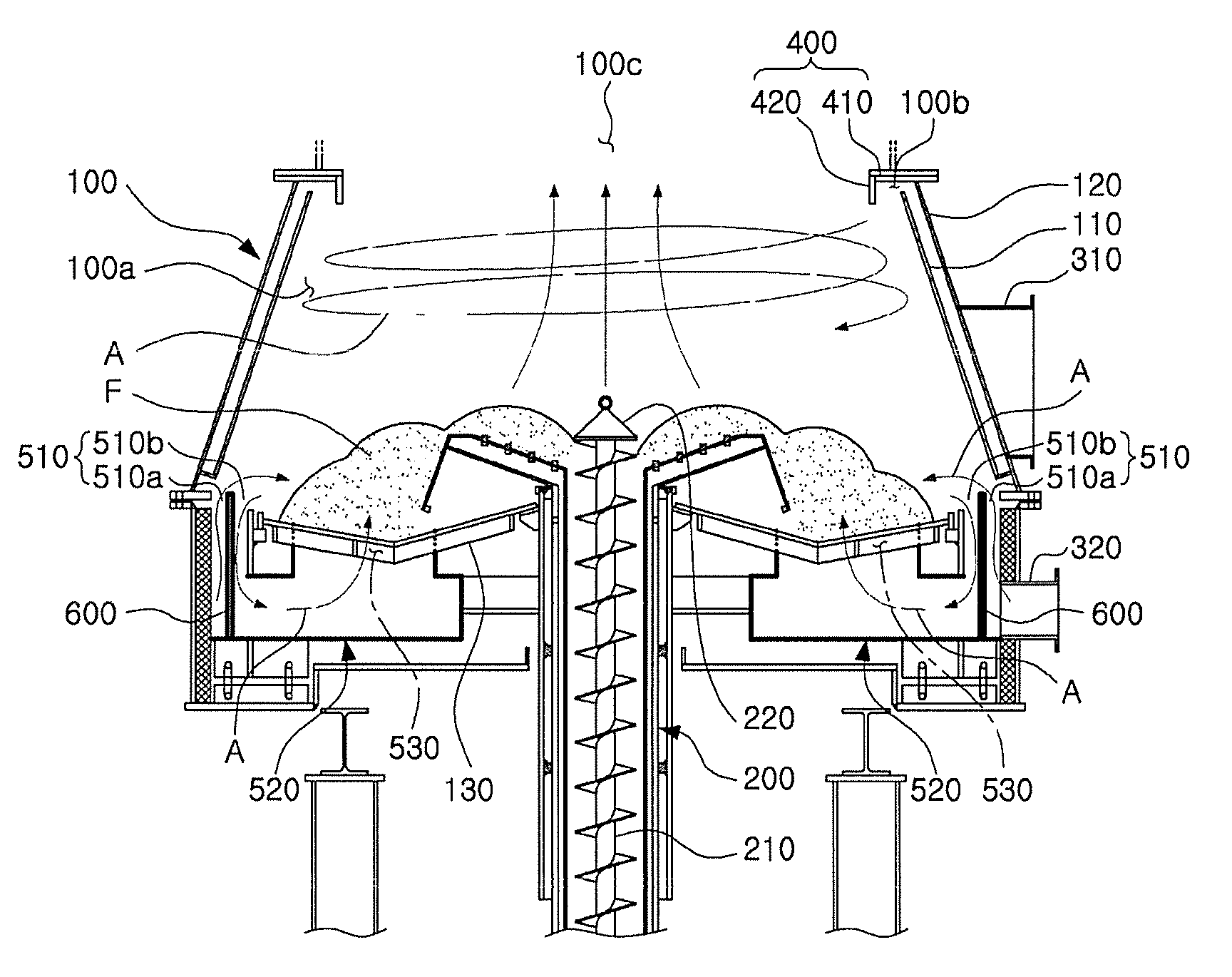

A combustor includes a combustion chamber including a grate and a combustion space formed above the grate; a fuel supply portion downwardly connected to a central portion of the grate to supply fuel to an upper portion of the grate; an air supply part connected to a side portion of the combustion chamber to be inclined on a horizontal plane, such that the combustion air rotates in the combustion space; a clinker collection portion downwardly communicating with a gap formed between an inner wall of the combustion chamber and the grate, to collect clinker generated by combustion of fuel in the clinker collection portion; and a reintroduction channel passing through the grate, such that the combustion air is reintroduced into the combustion space.
First Claim
Other Claims data not available
