Dismountable stringed musical instrument with splitted fingerboard
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 12, 2019
Grant Date -
Jun 7, 2018
app pub date -
Sep 7, 2017
filing date -
Sep 10, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

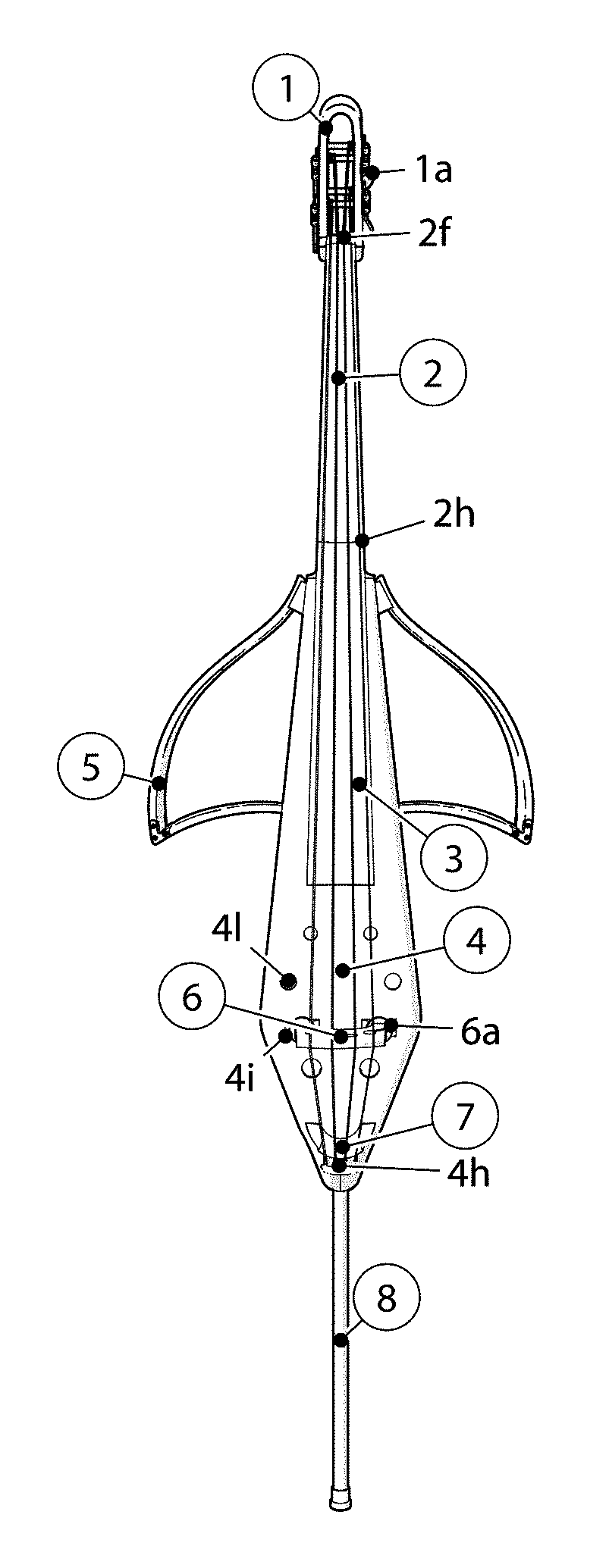

A dismountable stringed musical instrument with a splittable fingerboard and an acoustic sound is disclosed having a hollow body composed by two parts shaped as half empty shell that meets each other on their outer perimeter, defining a sound chamber. The fingerboard is splitted in two parts that can be re-assembled by a rigid inner core which works as a reinforcement and as a trail to allows the fingerboard cutted portions to slide on it meeting each other perfectly and by a latch toggle clamp which hold the two parts strictly merged together, taking back the fingerboard to its original playable smoothness. The neck can be dismounted to from the body and then re-assembled in the playing position also adjusting its inclination at will by movable elements placed on the neck extremity which faces the top portion of the body support area.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- G10D Class
- 225 Applications Filed
- 178 Patents Issued To-Date
- 79.12 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- G10D Class
- 38.46 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 12, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 12, 2030 |
