Tubular banding applicator and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Nov 17, 2017
filing date -
Nov 21, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

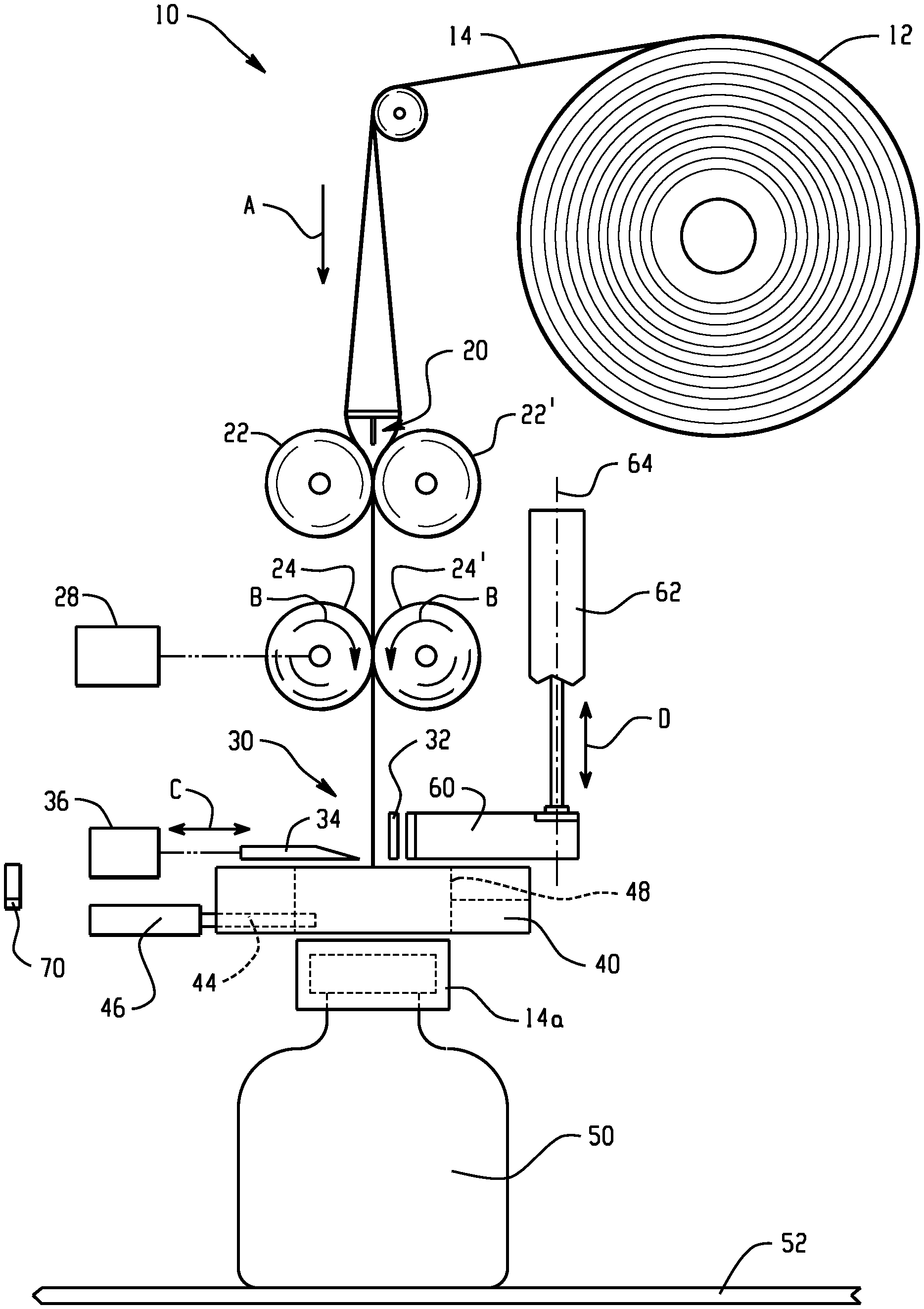

An apparatus for applying a tubular band from a supply of flat tubular material to a container includes a flat film feed path and a cutter positioned for cutting tubular material traveling along the feed path. A former is positioned downstream of the cutter for opening the tubular material and includes a film passage with an inlet side and an outlet side. The flat film feed path enters the film passage and a cut segment of tubular material is opened within the film passage to create an opened tubular band. A pusher pushes the opened tubular band out of the outlet side of the former for container application. The pusher includes a film engaging portion that is aligned with and movable into and out of the film passage. The film engaging portion is offset from the flat film feed path to prevent interference with flat tubular film entering the passage.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B29C Class
- 6708 Applications Filed
- 4570 Patents Issued To-Date
- 68.13 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B29C Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 5, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 5, 2031 |
