WOUND DOVETAIL WEDGE FOR MARINE PROPELLER RETENTION
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Oct 17, 2016
filing date -
Oct 17, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

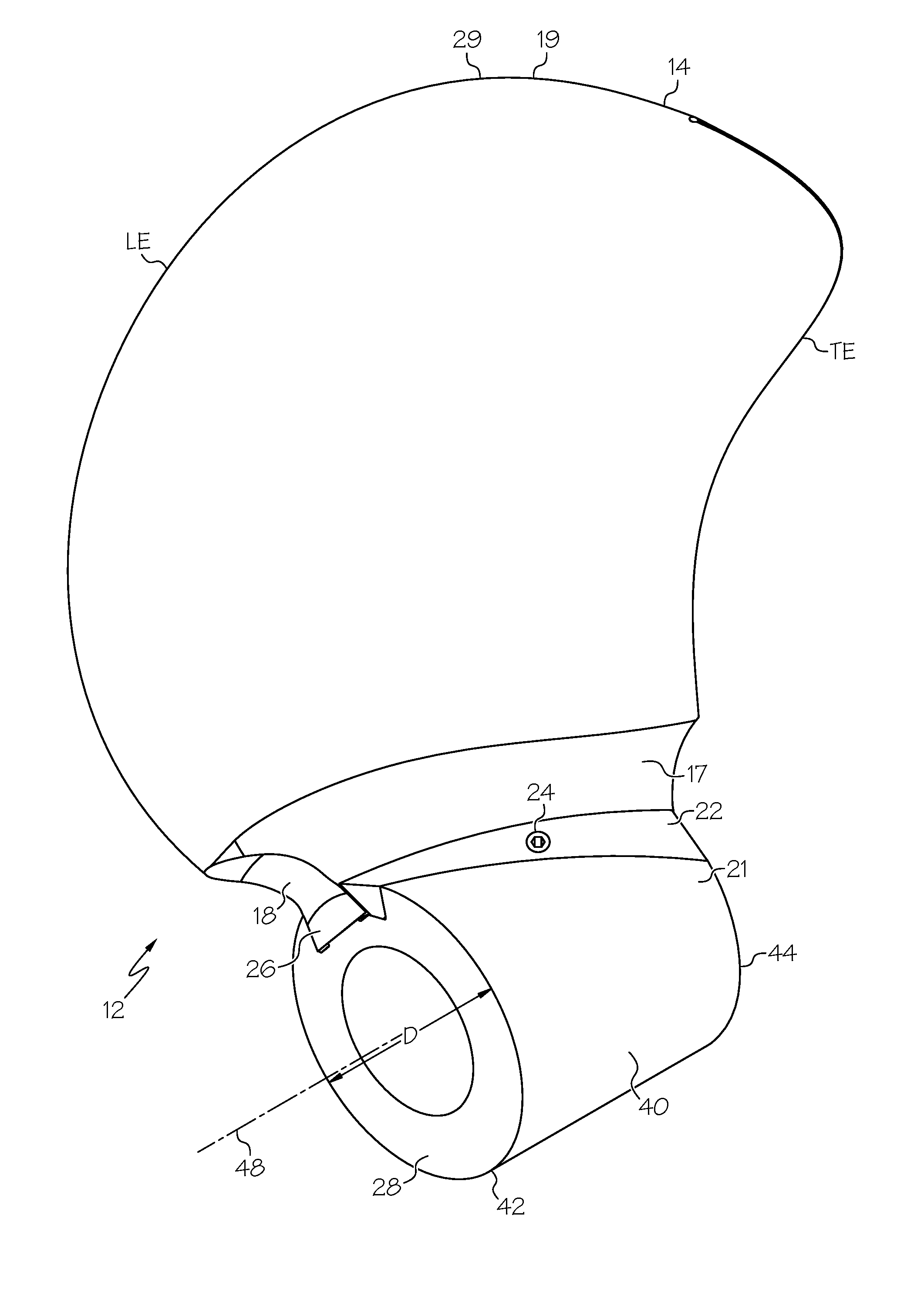

A marine propeller composite blade an axially extending composite blade root including a dovetail wound in a partial spiral or helix around a centerline. Dovetail tapering down in width between clockwise and counter-clockwise dovetail sides of dovetail from dovetail bottom in a radially outwardly direction away from centerline. Marine propeller may include composite blade roots mounted in axially extending hub slots in a metallic hub, axially extending wedges disposed within the hub slots circumferentially between the blade roots and one of clockwise slot sides and counter-clockwise slot sides, and the wedges abutting the blade roots and the one of clockwise slot sides and counter-clockwise slot sides. Wedges and hub slots wound in a partial spiral or helix around a centerline. Radial retention means for radially retaining wedges in hub slots may include bolts engaging wedges and screwed into threaded holes in hub.
First Claim
Other Claims data not available
