Non-oriented electrical steel plate and manufacturing process therefor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 9, 2018
Grant Date -
Apr 5, 2018
app pub date -
Apr 17, 2017
filing date -
Mar 15, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

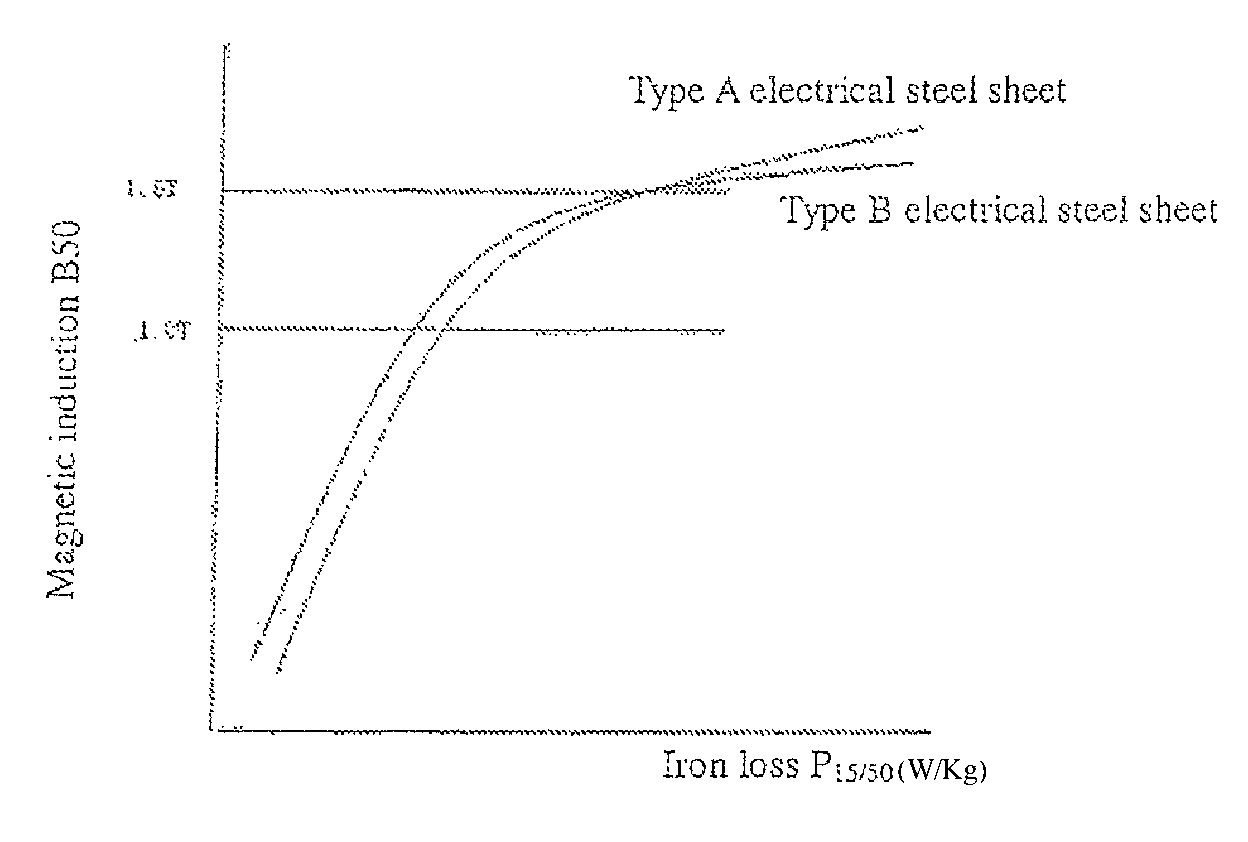

Disclosed are a non-oriented electrical steel plate with low iron loss and high magnetic conductivity and a manufacturing process therefor. The casting blank of the steel plate comprises the following components: Si: 0.1-2.0 wt %, Al: 0.1-1.0 wt %, Mn: 0.10-1.0 wt %, C: ≤0.005 wt %, P: ≤0.2 wt %, S: ≤0.005 wt %, N: ≤0.005 wt %, the balance being Fe and unavoidable impurities. The magnetic conductivity of the steel plate meets the following relationship formula: μ10+μ13+μ15≥13982−586.5P15/50; μ10+μ13+μ15≥10000, wherein P15/50 is the iron loss at a magnetic induction intensity of 1.5 T at 50 Hz; μ10, μ13, and μ15 is are relative magnetic conductivities at induction intensities of 1.0 T, 1.3 T, and 1.5 T at 50 Hz, respectively. The steel plate can be used for manufacturing highly effective and ultra-highly effective electric motors.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- H01F Class
- 2444 Applications Filed
- 1810 Patents Issued To-Date
- 74.06 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01F Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 9, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 9, 2030 |
