Braking system for a hydraulic machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 30, 2019
Grant Date -
Mar 29, 2018
app pub date -
Sep 22, 2017
filing date -
Sep 23, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

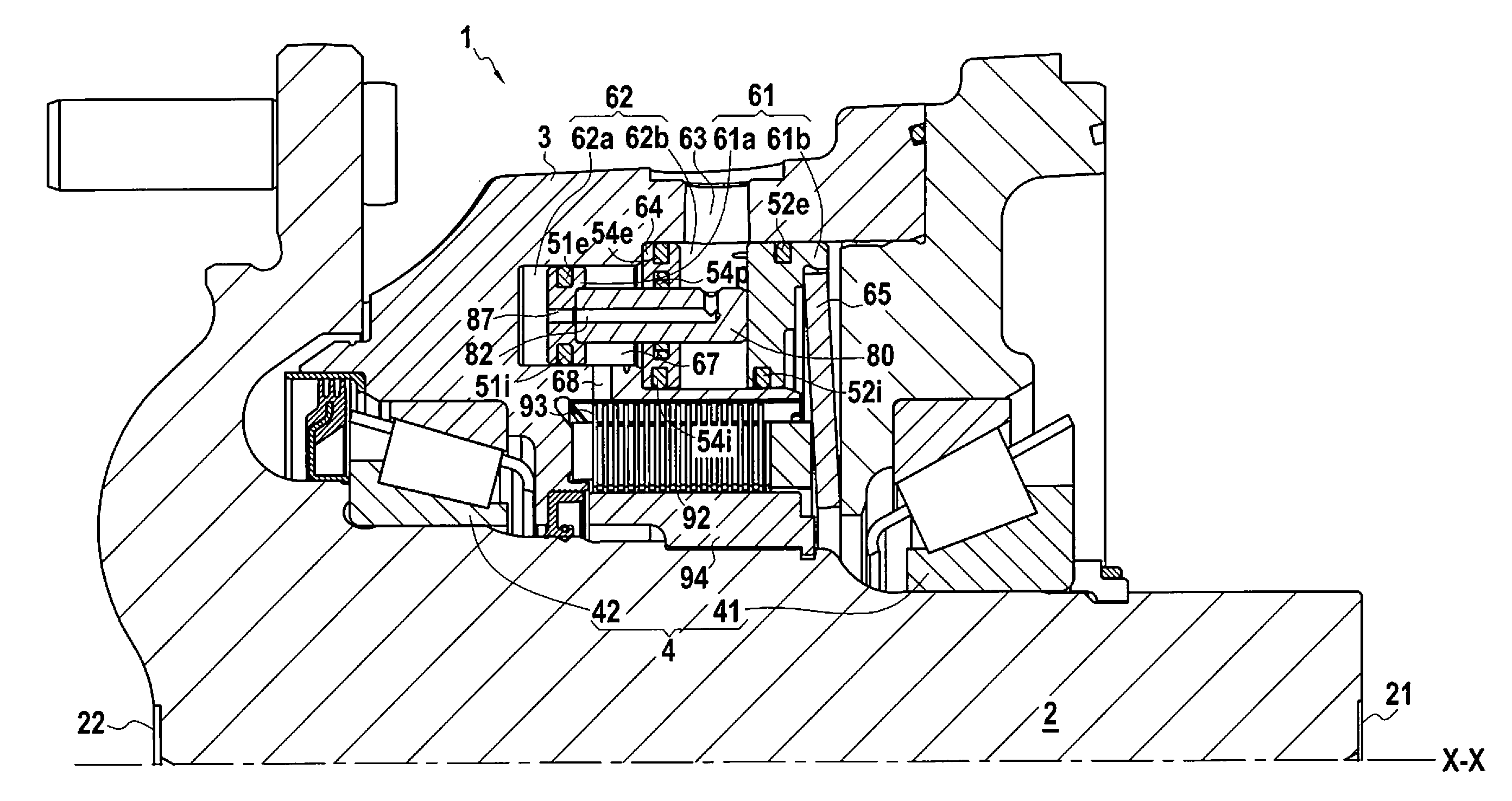

A hydraulic machine (1) comprising first and second brake elements (92, 93), a spring washer (65) tending to urge the first and second brake elements (92, 93) in a braking direction, and a brake release piston (61) configured to act on the spring washer (65) in a direction opposing the braking direction, the hydraulic machine being characterized in that the brake release piston (61) comprises a primary brake release piston (61a) associated with a primary brake release chamber (62a), and a secondary brake release piston (61b) associated with a secondary brake release chamber (62b), said primary and secondary chambers (62a, 62b) extending radially around the shaft (2) in such a manner that projections of the primary brake release chamber (62a) and of the secondary brake release chamber (62b) onto a plane perpendicular to a longitudinal axis (X-X) defined by the axis of rotation of the hydraulic machine (1) are superposed, at least in part.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B60K Class
- 3042 Applications Filed
- 2326 Patents Issued To-Date
- 76.47 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B60K Class
- 24.97 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 30, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 30, 2031 |
