Electric motor having improved cooling

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 10734865
APP PUB NO 20180076693A1
SERIAL NO

15565241

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Calculated Rating
US Family Size
Non-US Coverage

Abstract

See full text

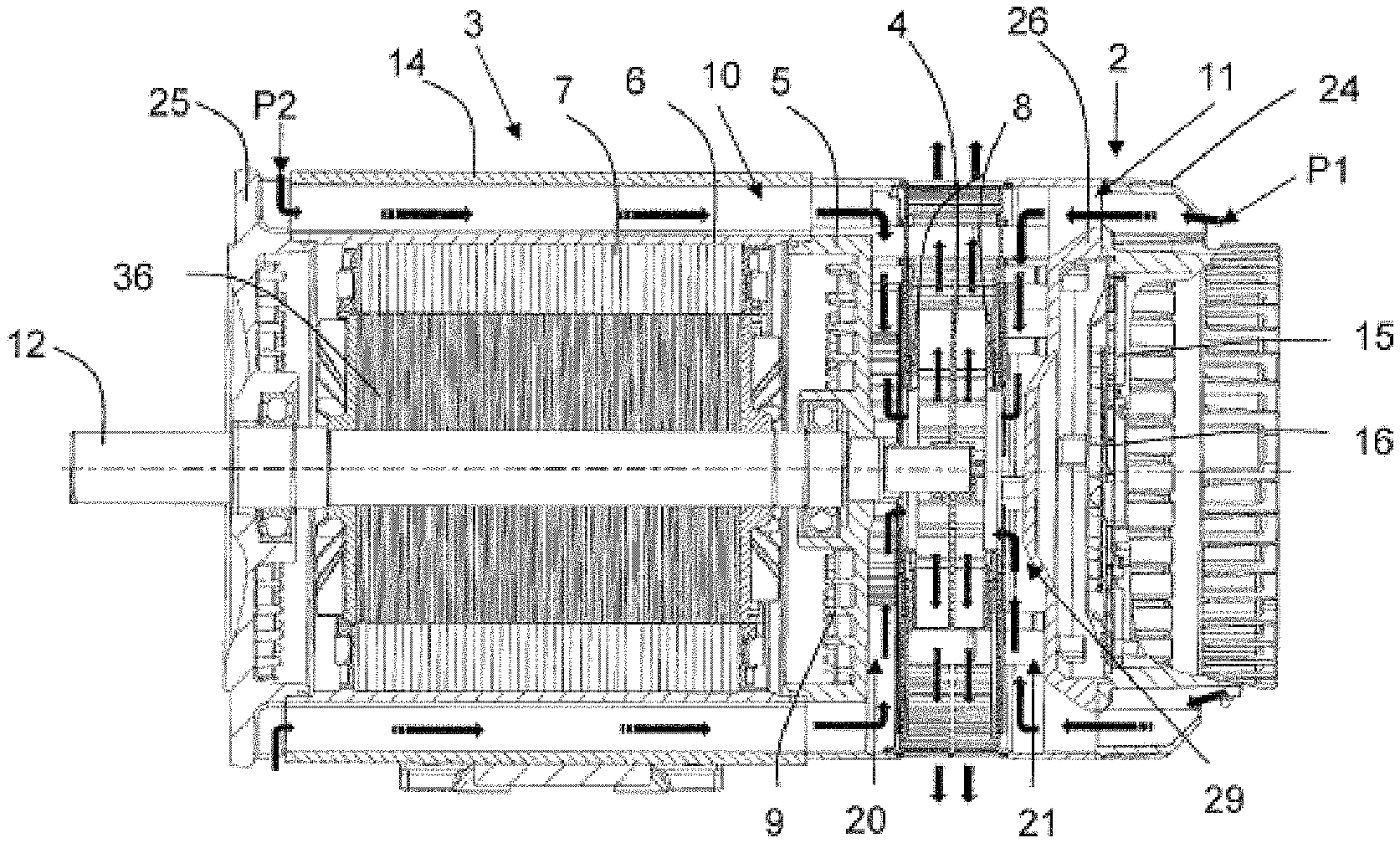

The invention relates to an electric motor comprising an electronics housing having motor electronics accommodated therein and a stator housing arranged axially at a distance from the electronics housing, wherein, axially between the electronics housing and the stator housing there is arranged a twin-flow cooling wheel which, during operation, generates a first cooling air stream along the electronics housing and a second cooling air stream along the stator housing and/or at least one bearing shield adjoining the stator housing axially.
