TIME DE-INTERLEAVING CIRCUIT AND TIME DE-INTERLEAVING METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Apr 13, 2017
filing date -
Sep 12, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

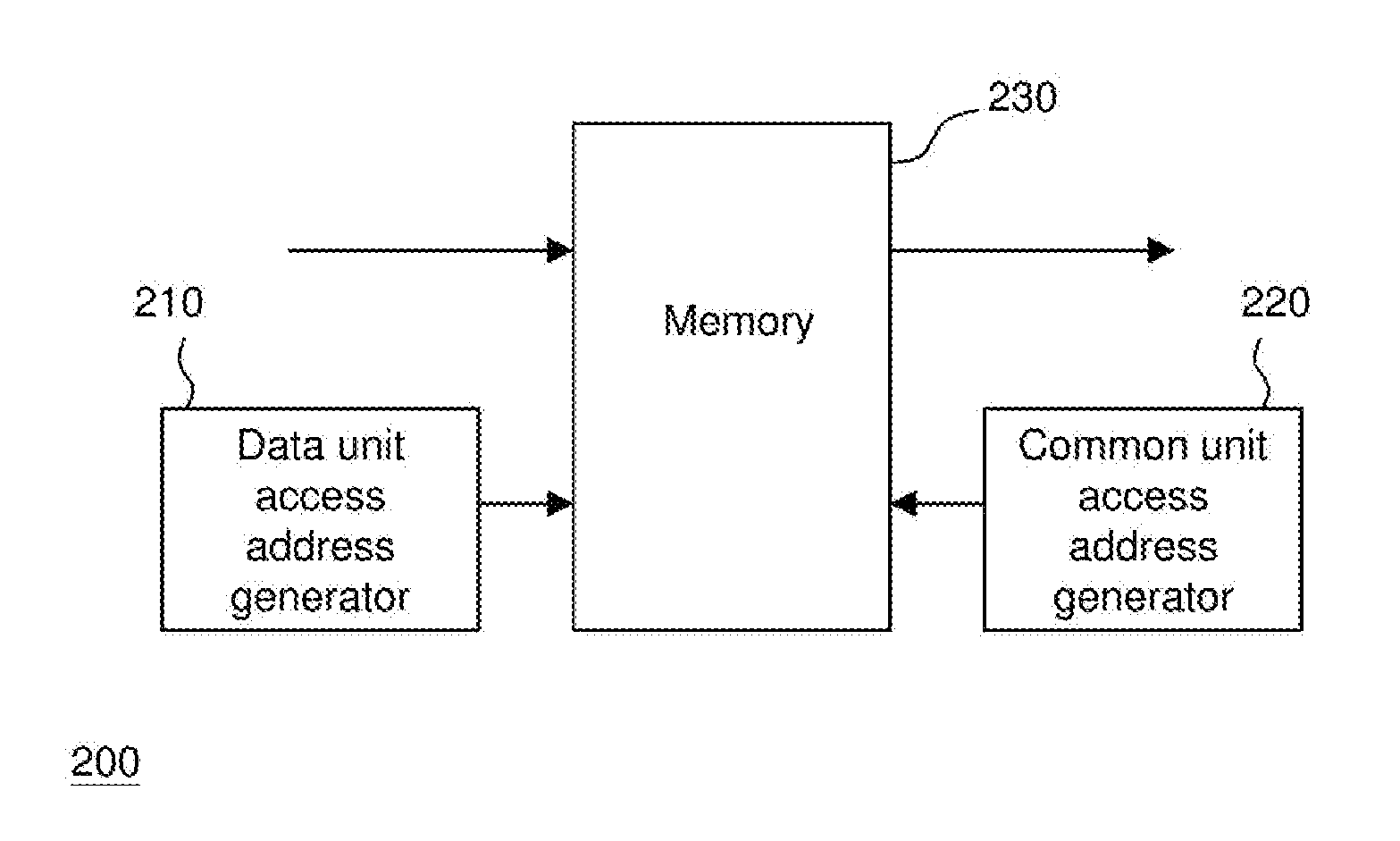

A time de-interleaving circuit is located at a signal receiver of a communication system to perform a time de-interleaving process on an interleaved signal. The interleaved signal includes a plurality of information units, which include a plurality of data units and a plurality of common units. The time de-interleaving circuit includes: a data unit access address generator, generating a plurality of data unit access addresses according to a first address sequence to accordingly access the plurality of data units in a memory; and a common unit access address generator, generating a plurality of common unit access addresses according to a second address sequence to accordingly access the plurality of common units in the memory. The second address sequence is a reverse sequence of the first address sequence.
First Claim
Other Claims data not available
