Clip-type stretching apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 19, 2021
Grant Date -
Mar 15, 2018
app pub date -
Nov 16, 2017
filing date -
May 19, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

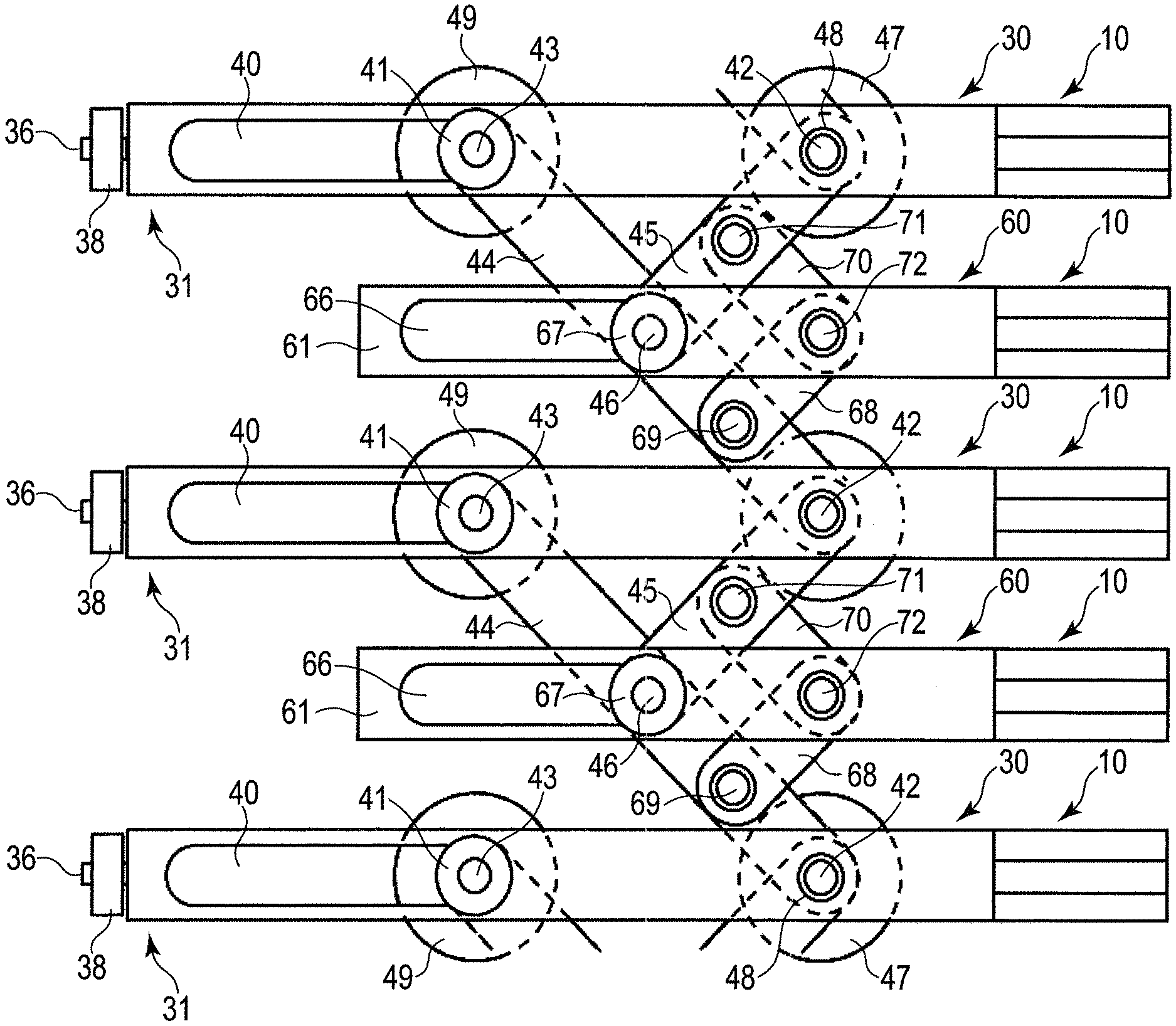

A clip-type stretching apparatus includes a main link device, a sub-link device, a standard rail, a pitch setting rail, and drive sprockets, the main link device including a first clip support member having a clip, the sub-link device having the clip, the standard rail defining a circulation route of the clip, the pitch setting rail setting a pitch between the first clip support members by a distance from the standard rail, the drive sprockets engaged with a drive roller provided in a first shaft member of the first clip support member and causing the first clip support member to travel.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2017 Application Filing Year
- B29C Class
- 6708 Applications Filed
- 4570 Patents Issued To-Date
- 68.13 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B29C Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 19, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 19, 2032 |
