AUTOMATIC SPRAY GUN
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Apr 1, 2016
filing date -
Apr 9, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

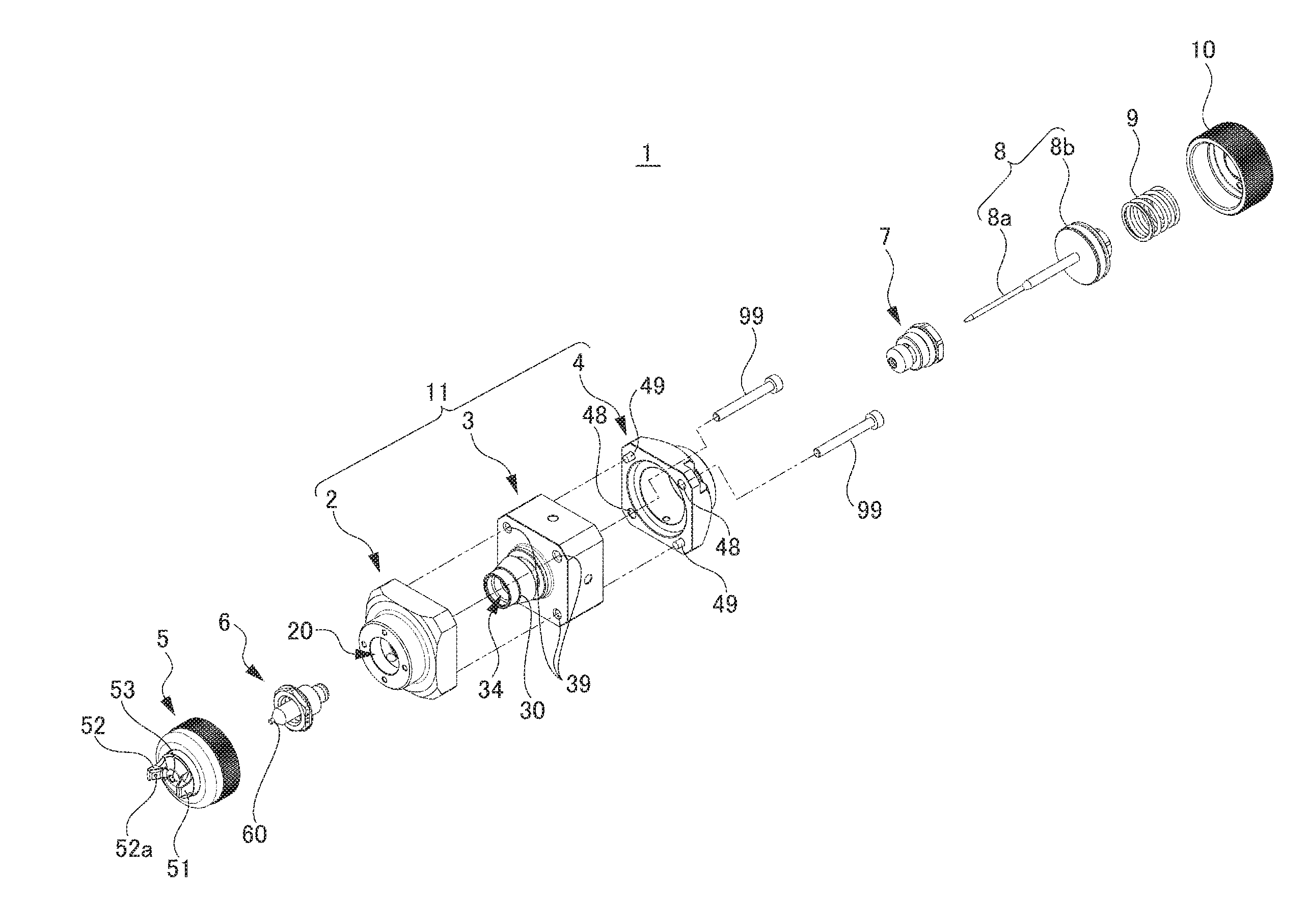

A spray gun having a body formed of a front end, a middle, and a rear end, a gas cap attached to the front end, and a needle that opens/closes a liquid nozzle attached to the middle. The front end has a through-hole extending from a front side, on which the gas cap is disposed, toward the middle. The middle includes a protrusion in the through-hole of the front end and a through-hole leading to a liquid supply port formed in the middle and extending from a front end side through the protrusion toward the rear end. The liquid nozzle is in the through-hole of the protrusion. The needle extends from a rear end side through the through-hole of the middle so that a distal end of the needle is in a distal opening of the liquid nozzle in an insertable/removable manner.
First Claim
Other Claims data not available
