Solar cell and method for manufacturing same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 1, 2020
Grant Date -
Mar 8, 2018
app pub date -
Mar 7, 2016
filing date -
Mar 31, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|

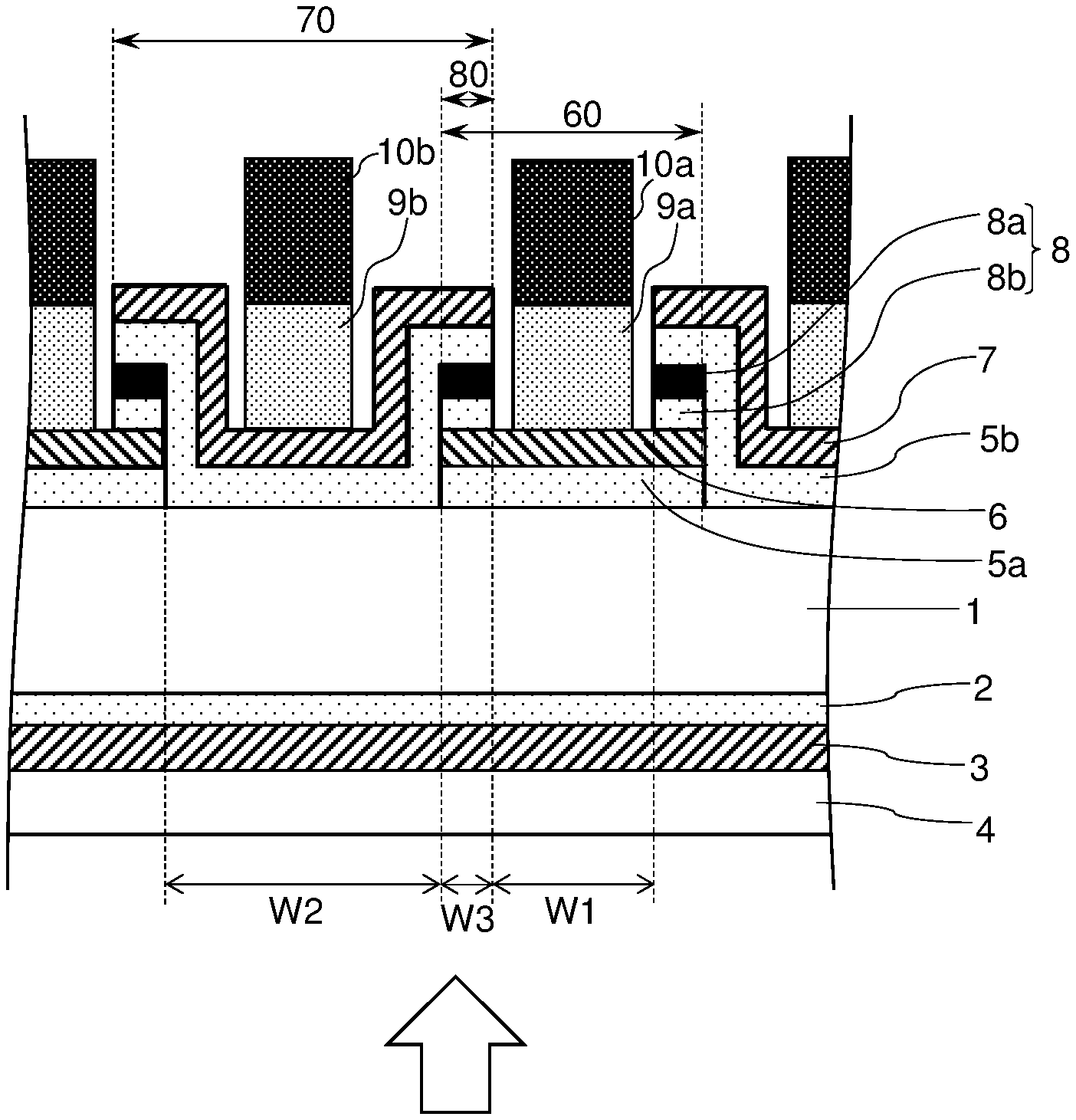

Abstract
The solar cell includes an n-type semiconductor layer and a p-type semiconductor layer on a first principal surface of a crystalline silicon substrate. The n-type semiconductor layer is provided so as to extend over a part on a p-type semiconductor layer-formed region provided with the p-type semiconductor layer, and a p-type semiconductor layer non-formed-region where the p-type semiconductor layer is not provided. In a region where the n-type semiconductor layer is provided on the p-type semiconductor layer, a protecting layer is between the p-type semiconductor layer and the n-type semiconductor layer. The protecting layer includes: an underlying protecting layer that is in contact with the p-type semiconductor layer; and an insulating layer that is on the underlying protecting layer. The underlying protecting layer includes an intrinsic silicon-based layer or an n-type silicon-based layer.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| CN | B | CN107210331 | Mar 07, 2016 |
| JP | B2 | JP6692797 | Mar 07, 2016 |
| WO | A1 | WO2016158226 | Mar 07, 2016 |
International Classification(s)
- 2016 Application Filing Year
- H01L Class
- 27971 Applications Filed
- 23507 Patents Issued To-Date
- 84.05 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 1, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 1, 2032 |
