Nucleus-Structure Chemistry Set
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Sep 6, 2016
filing date -
Sep 6, 2016
priority date (Note) -
Published
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

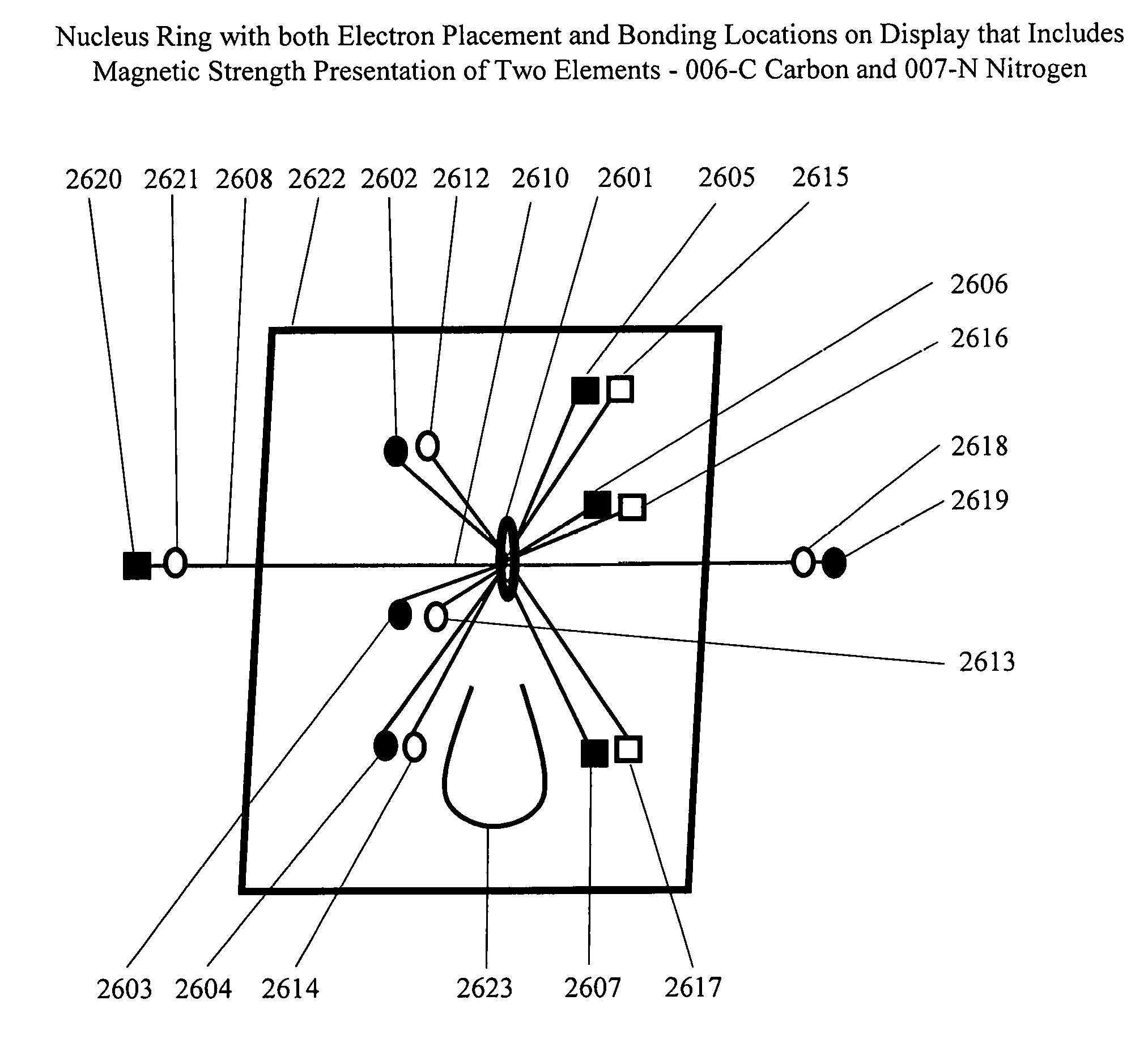

A three-dimensional instructional manipulative, model or display, including base units, with differentiation by methods including shape, color, size or markings, representing nucleus particles such as protons and neutrons, where each particle utilizes connections so that protons are separated by at least one neutron resulting in a structure that is chain, chain-ring, multiple-layer rings or combinations of those elements together with an indicator, based upon the nucleus as a set, of magnetic orientation, magnetic field shape, magnetic strength; and a further claim with options where those base unit connections operated via magnetics; and further claim adding at least one of the following: a spindle or platform for placement of the nucleus within orientation to the structure; placement of electrons features; and/or rotation mechanisms in one or more dimensions, and or indicators of the magnetic fields of the individual base units representing nuclear particles.
