Imaging system and method of creating images
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 12, 2020
Grant Date -
Mar 8, 2018
app pub date -
Mar 1, 2016
filing date -
Mar 24, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

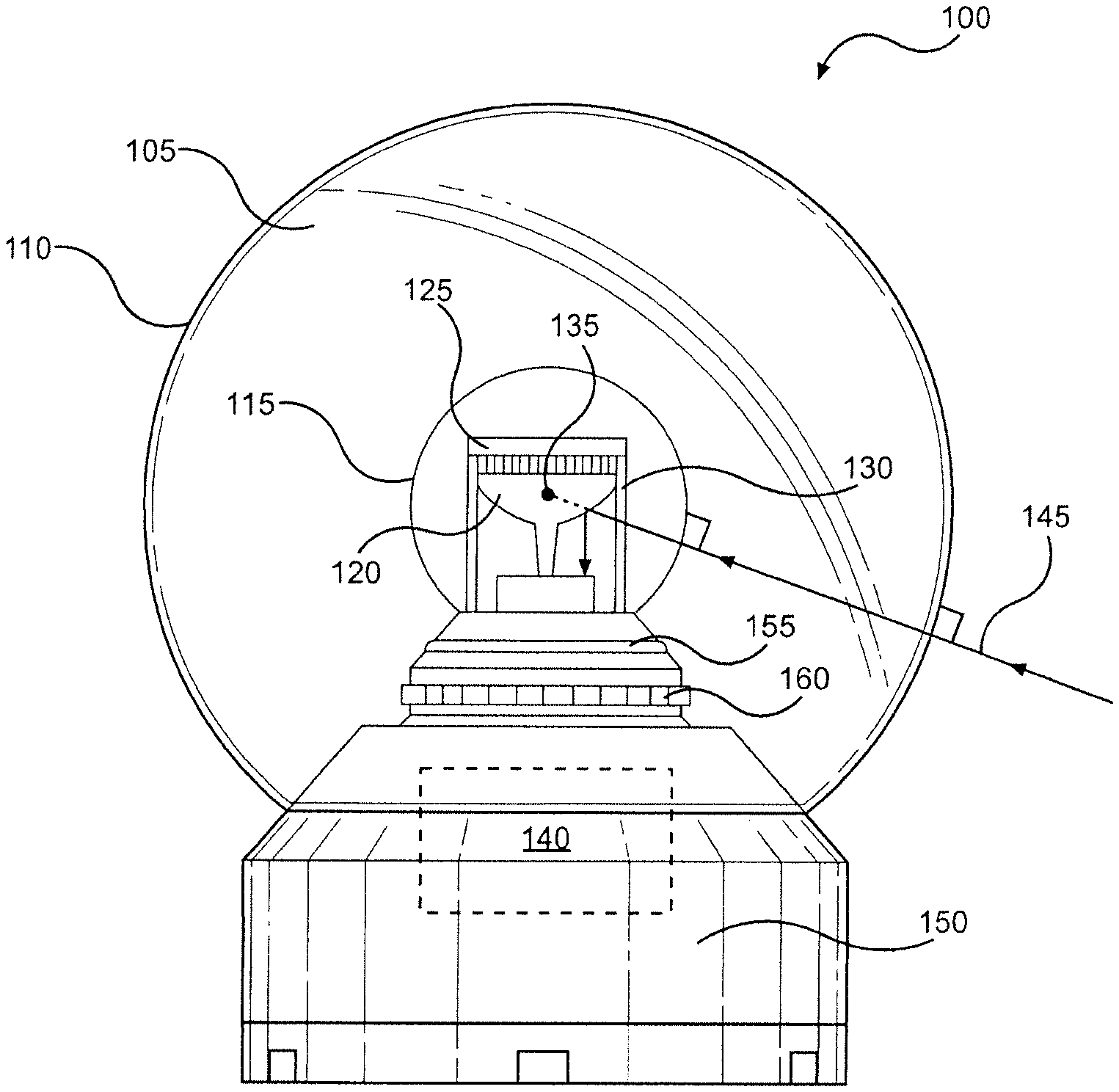

An imaging system includes a spherical window, a reflector, an image sensor, a housing and a snap ring. The reflector has a focus point located at a center of a sphere defined by an outer surface of the window. Light entering the window at an angle perpendicular to the outer surface of the window and traveling to the focus point is reflected onto the image sensor by the reflector. The window and housing have first and second grooves, respectively. In order to couple the window to the housing, the snap ring is placed in the second groove, the snap ring is compressed with the window and then the snap ring is allowed to expand so that the snap ring is located in both the first and second grooves.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H04N Class
- 18761 Applications Filed
- 14708 Patents Issued To-Date
- 78.40 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H04N Class
- 48.23 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 12, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 12, 2031 |
