HEADS-UP DISPLAY WINDSHIELD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 8, 2018
app pub date -
Sep 2, 2016
filing date -
Sep 2, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

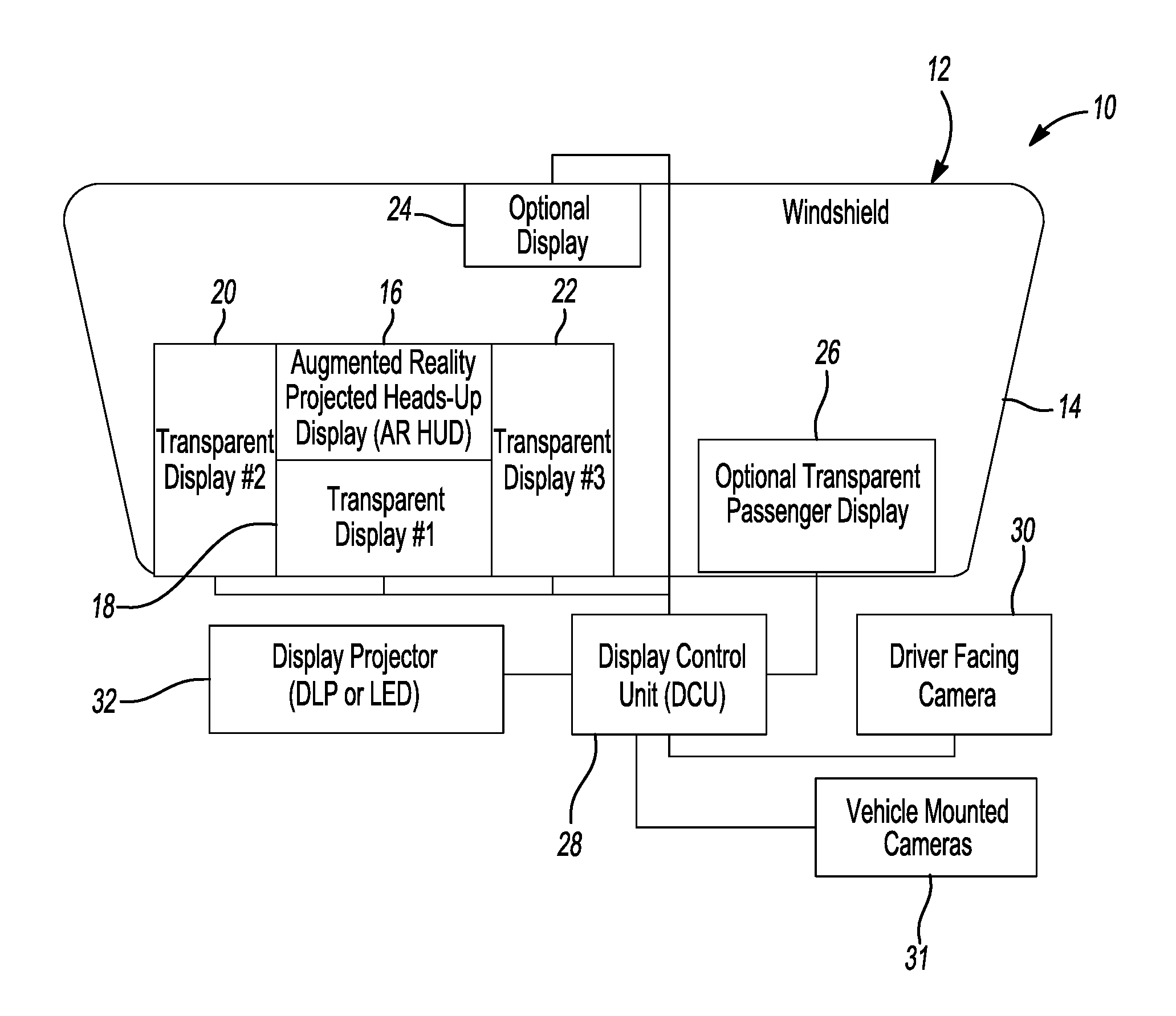

A motor vehicle heads-up display system includes an organic light emitting diode (OLED) screen positioned in contact with a motor vehicle windshield. The OLED screen includes a screen portion used to display augmented reality projection data. Multiple transparent display portions individually display vehicle related data and infotainment related data including at least a first transparent display portion, a second transparent display portion, and a third transparent display portion. A transparency level of each of the multiple transparent display portions can be varied. An instrument cluster display is presented on the first transparent display. A camera presentation of a motor vehicle left-hand side view is presented on the second transparent display. A camera presentation of a motor vehicle right-hand side view is presented on the third transparent display. One of the multiple transparent display portions is positioned in direct line-of-sight view of a passenger of the motor vehicle.
