METHOD AND SYSTEM FOR REAL-TIME MOTION ARTIFACT HANDLING AND NOISE REMOVAL FOR TOF SENSOR IMAGES
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Mar 29, 2016
filing date -
Apr 1, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

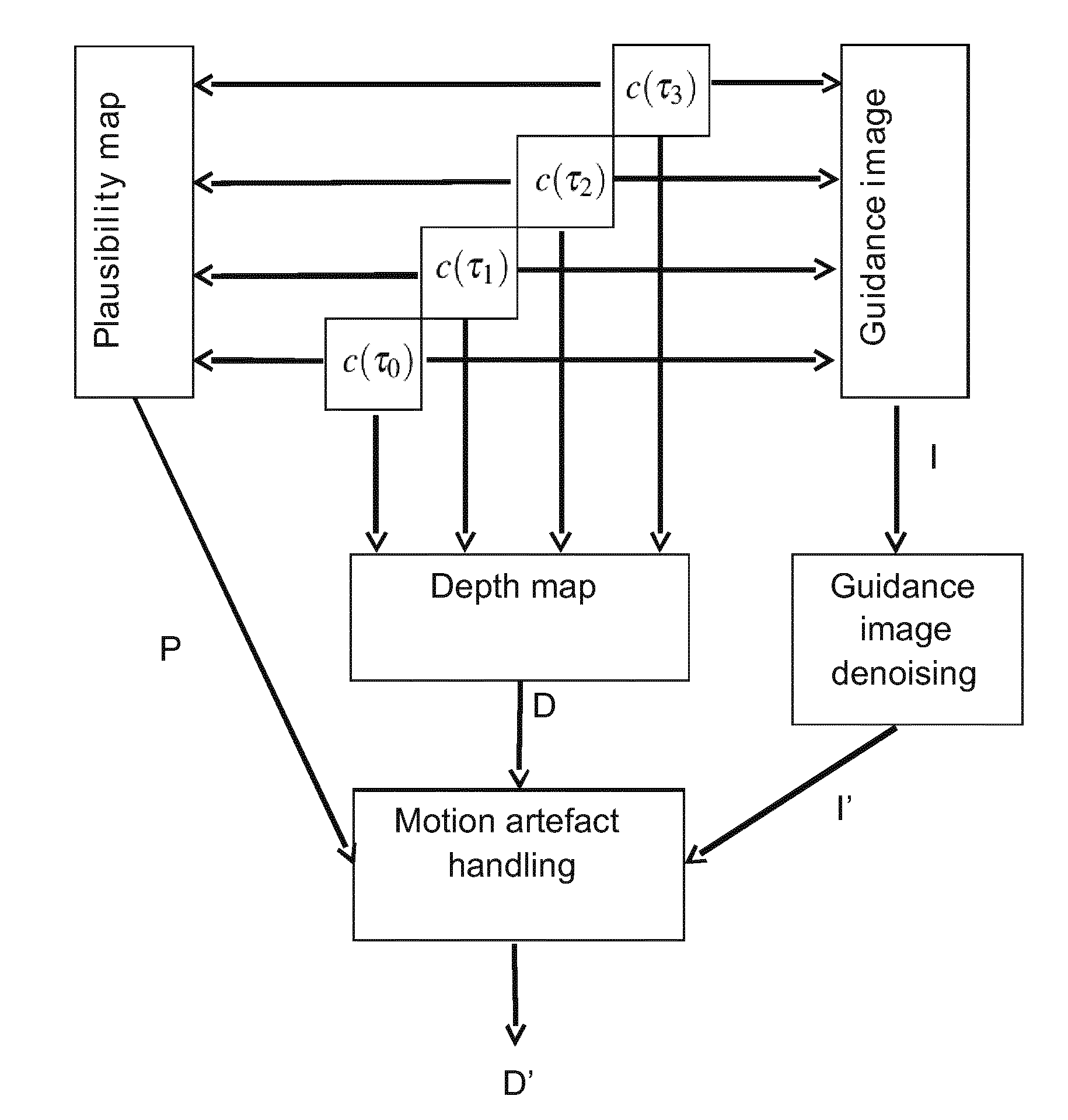

A method and system for real-time motion artifact handling and noise removal for time-of-flight (ToF) sensor images. The method includes: calculating values of a cross correlation function c(τ) at a plurality of temporally spaced positions or phases from sent (s(t)) and received (r(t)) signals, thereby deriving a plurality of respective cross correlation values [c(τ0), c(τ1), c(τ2), c(τ3)]; deriving, from the plurality of cross correlation values [c(τ0), c(τ1), c(τ2), c(τ3)], a depth map D having values representing, for each pixel, distance to a portion of an object upon which the sent signals (s(t)) are incident; deriving, from the plurality of cross correlation values [c(τ0), c(τ2), c(τ3)], a guidance image (I; I′); and generating an output image D′ based on the depth map D and the guidance image (I; I′), the output image D′ comprising an edge-preserving and smoothed version of depth map D, the edge-preserving being from guidance image (I; I′).
First Claim
Other Claims data not available
