Unit including a one-piece retaining element, and a bearing unit, retaining element, and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 22, 2020
Grant Date -
Mar 8, 2018
app pub date -
Aug 24, 2017
filing date -
Sep 6, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Calculated Rating
|
US Family Size
|
Non-US Coverage
|
Abstract

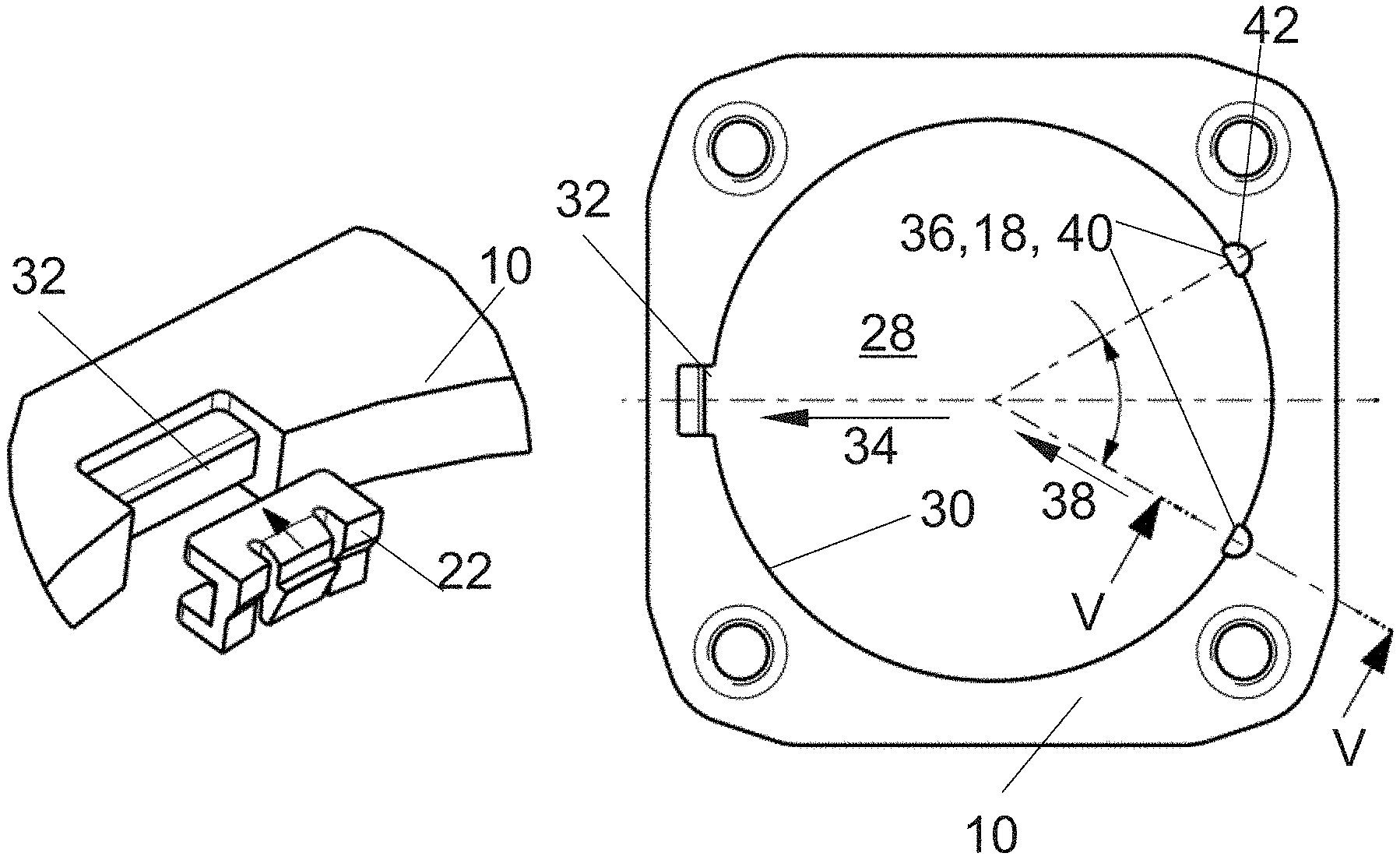

A retaining element configured to retain an outer ring of a bearing in a housing, the retaining element having a body having a first side and a second side and a substantially circular through-hole extending from the first side to the second side and an axial thickness from the first side to the second side. A boundary of the through-hole includes two or fewer recesses. The retaining element is configured to hold an attachment element in the two or fewer recesses, the attachment element being configured to engage a groove in a bearing to hold the bearing in the retaining element.
First Claim
Other Claims data not available
Family
+
−
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| DE | A1 | DE102016216805 | Sep 06, 2016 |
| CN | A | CN107795589 | Aug 16, 2017 |
International Classification(s)
- 2017 Application Filing Year
- F16C Class
- 1545 Applications Filed
- 1132 Patents Issued To-Date
- 73.27 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16C Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 22, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 22, 2032 |
